Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Testing and Inspection >> Diagnostic Tests >> Test B: Convertible Top Relay Test >> Table 2

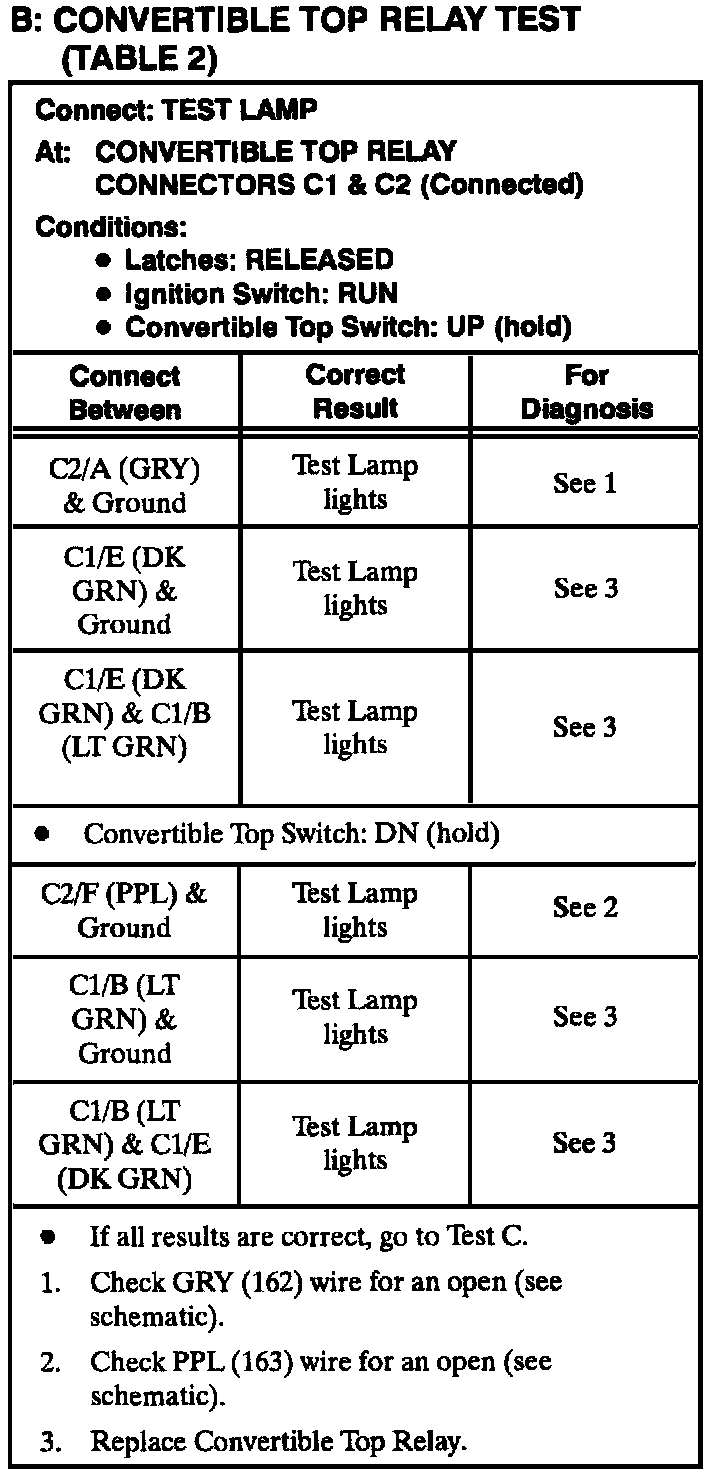

Table 2

Test B: Convertible Top Relay Test (Table 2):
