Chart 3 Power Door Locks Do Not Operate
Chart 3 Power Door Locks Do Not Operate

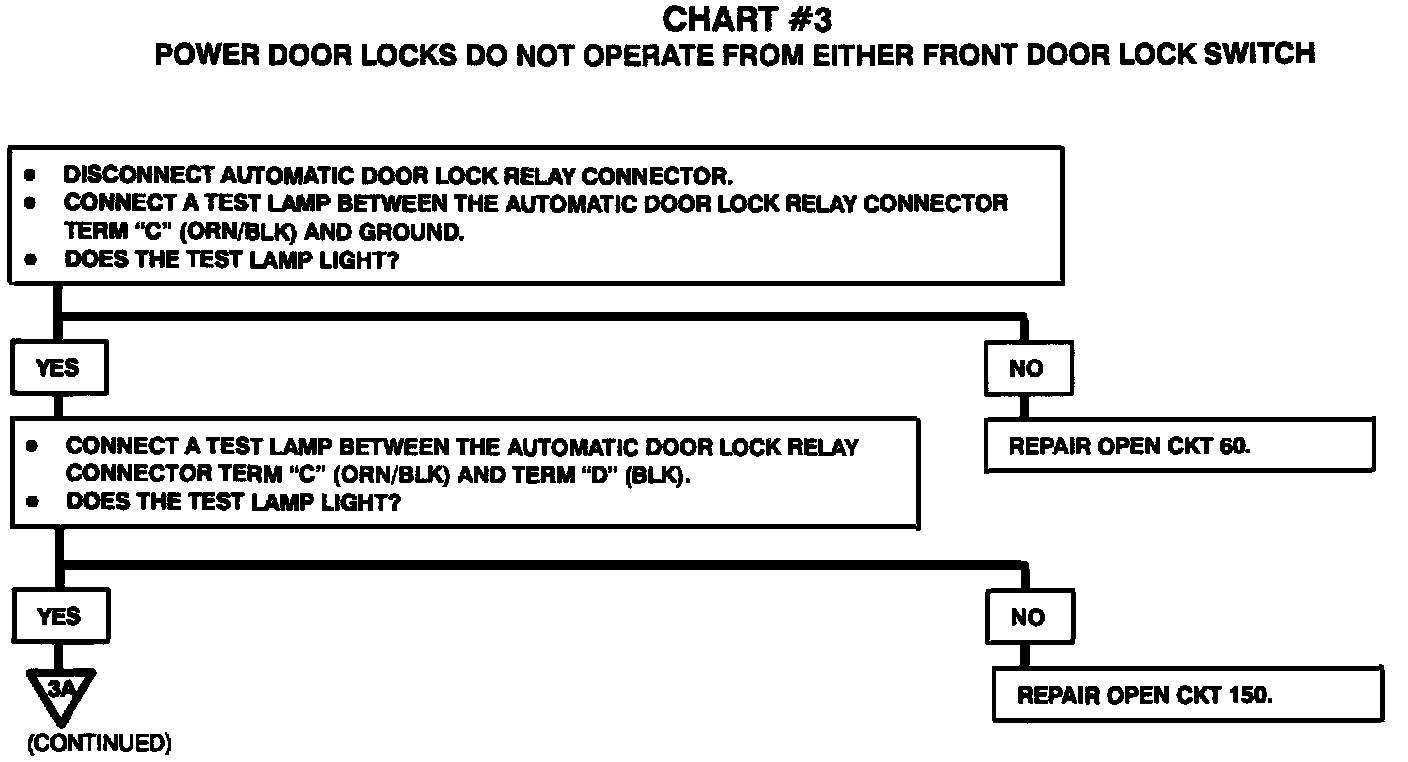

Chart #3 Power Door Locks Do Not Operate (Part 1 Of 2):
Chart #3 Power Door Locks Do Not Operate (Part 2 Of 2):
