Automatic Transmission/Transaxle





GENERAL SPECIFICATIONS

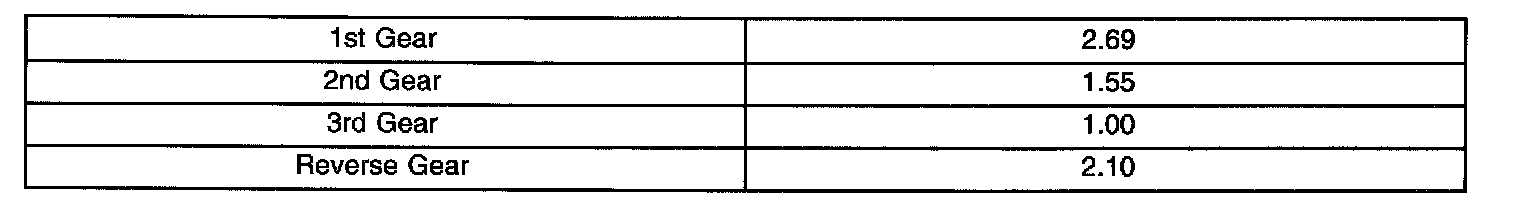

GEAR RATIOS





BAND ADJUSTMENT

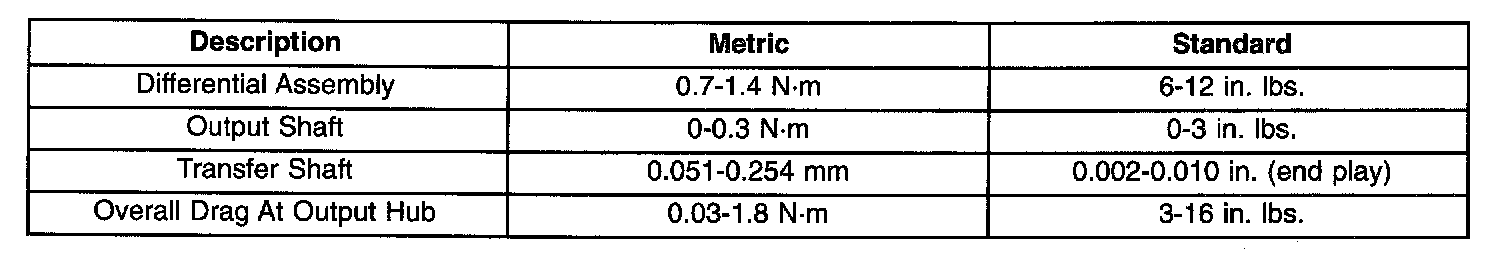

BEARING SETTING (END PLAY & TURNING TORQUE)

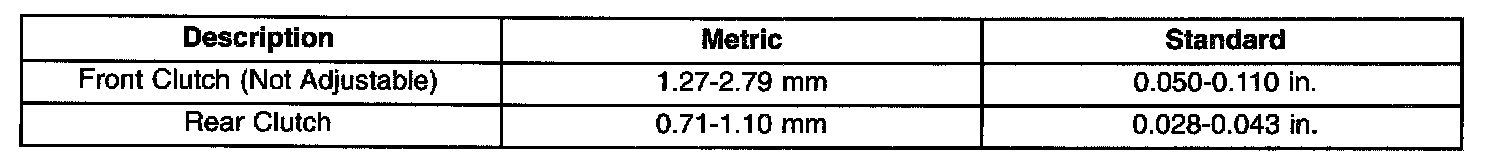

CLUTCH CLEARANCES

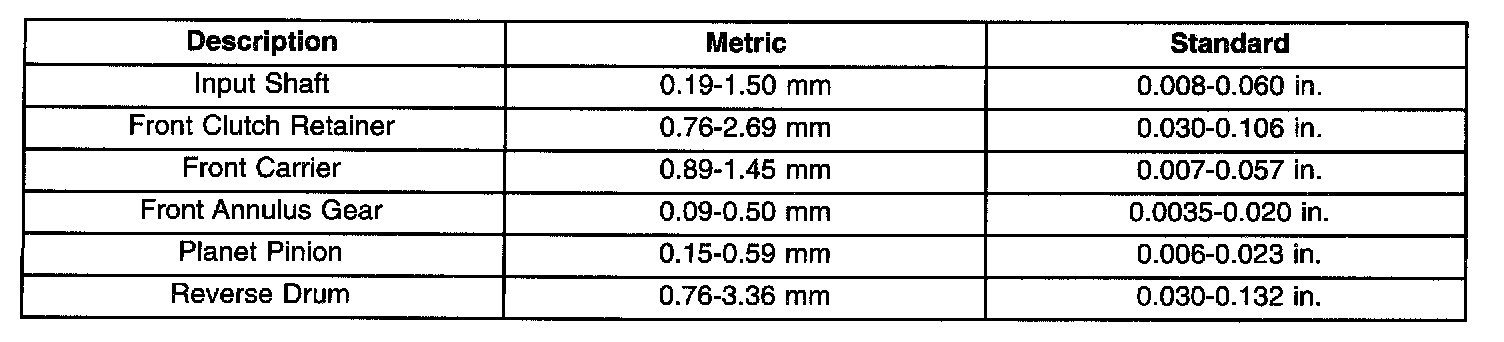

END PLAY

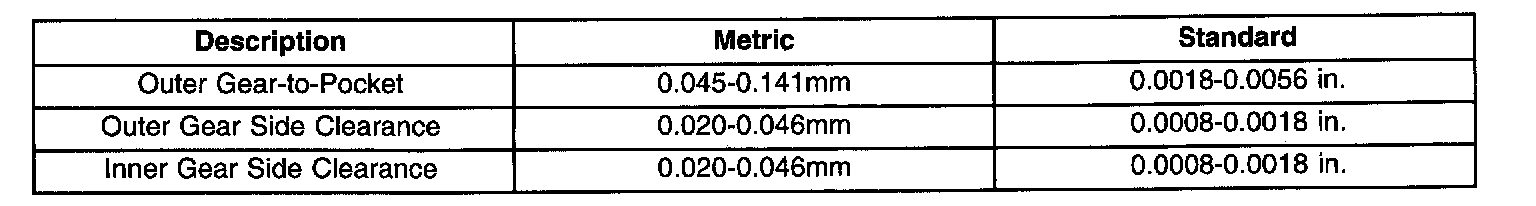

OIL PUMP CLEARANCES





THRUST WASHERS

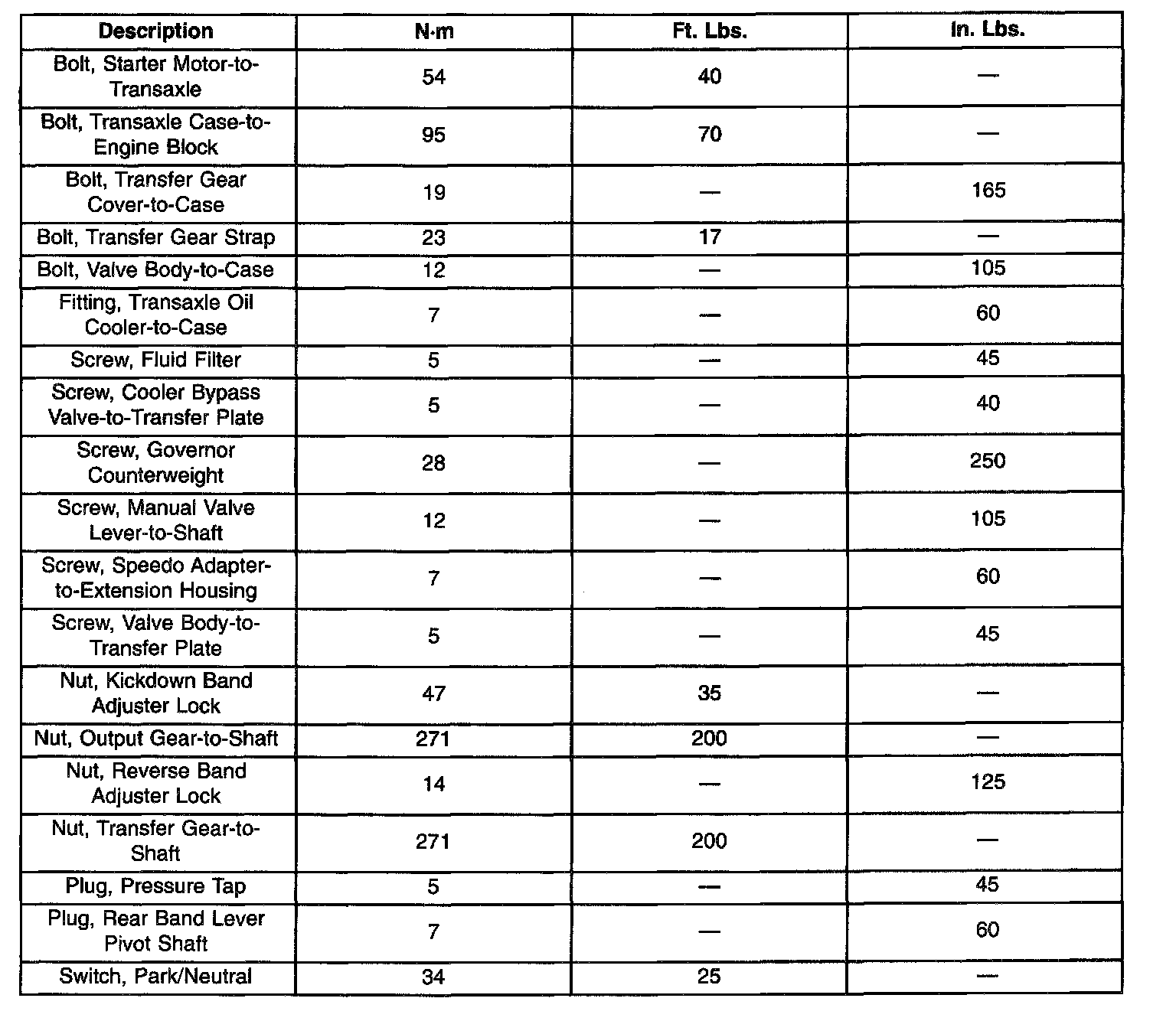

TORQUE SPECIFICATIONS PART 1 of 2

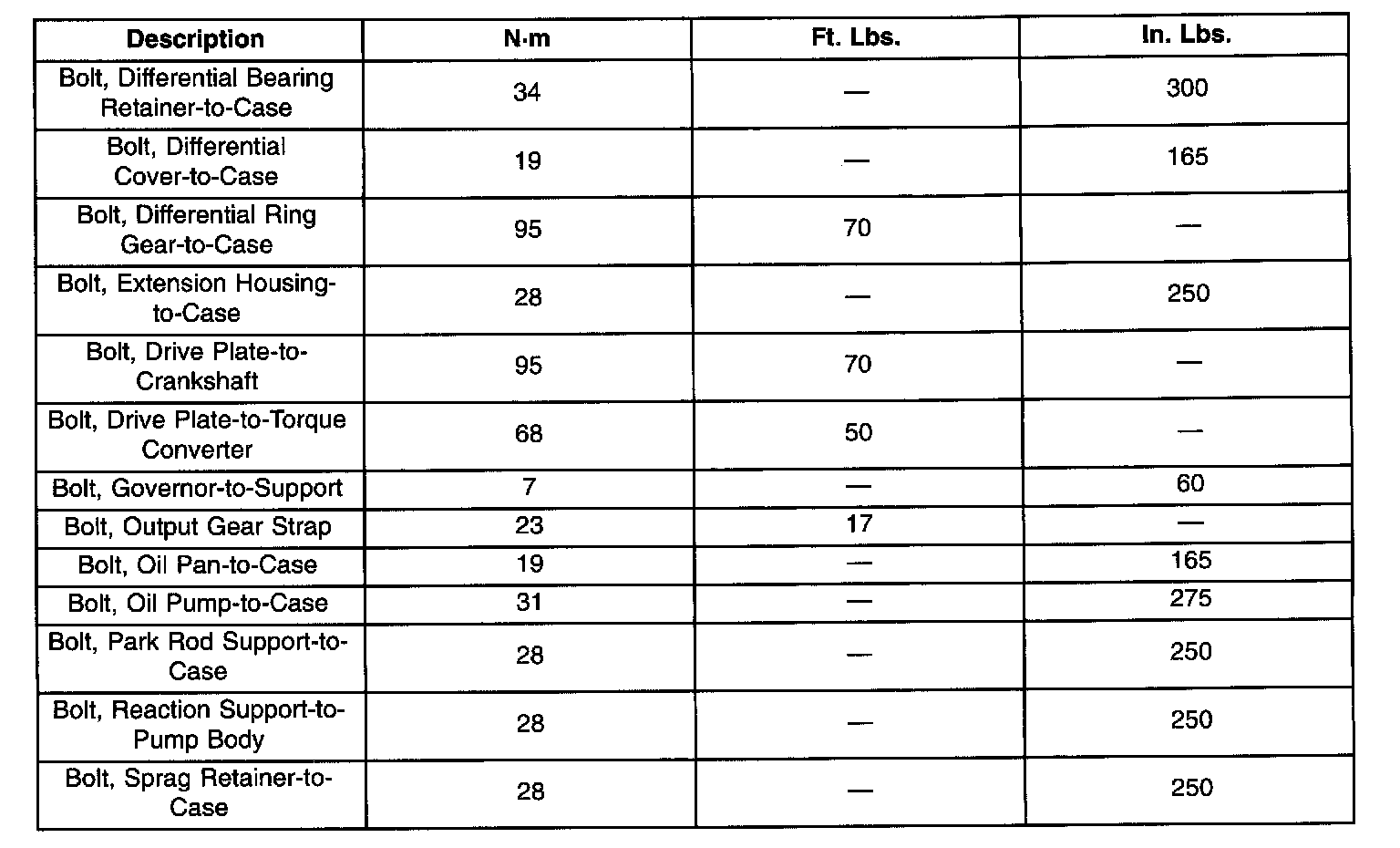

TORQUE SPECIFICATIONS PART 2 of 2
