Transmission Control System Relay, A/T

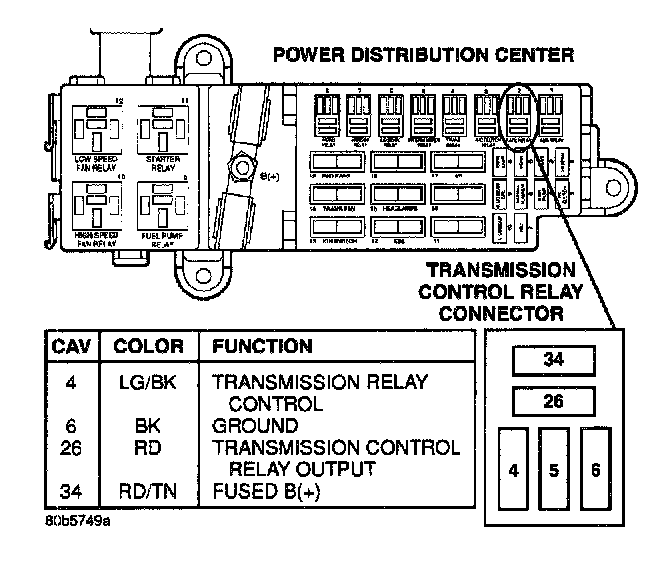

Power Distribution Center, Transmission Control Relay Connector:

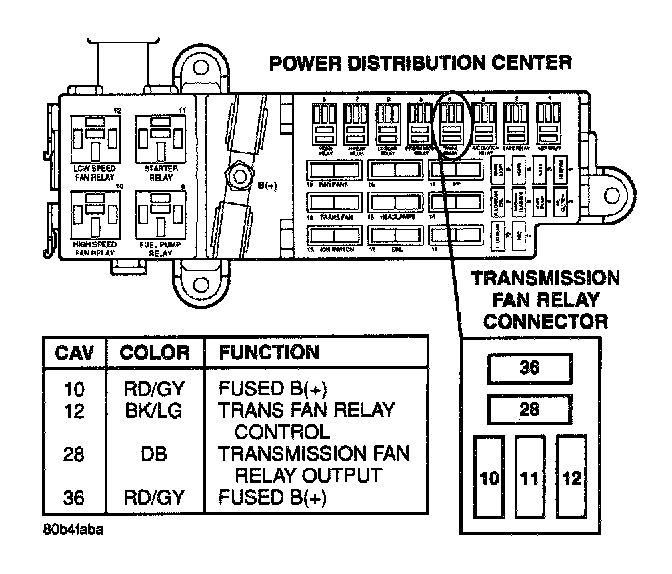

Power Distribution Center, Transmission Fan Relay Connector:

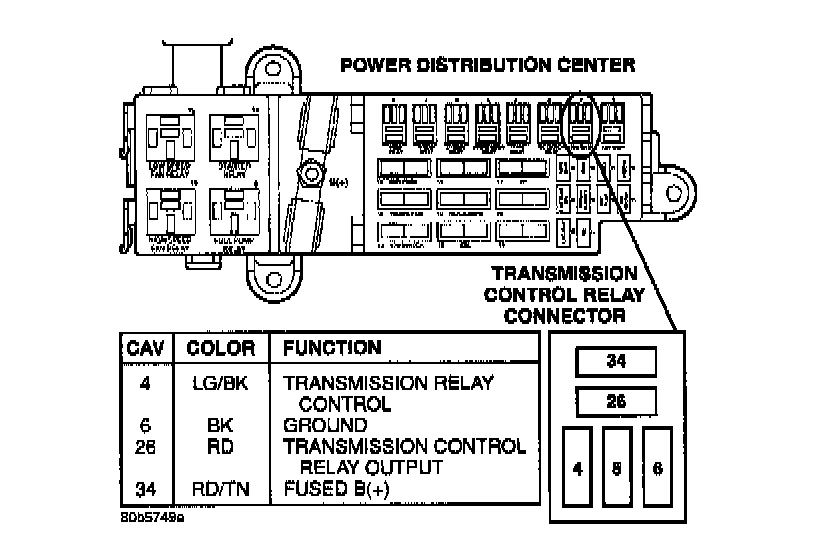

Transmission Control Relay Connector:
