Cruise Control Servo Cable: Service and Repair

REMOVAL

Throttle Control Shield:

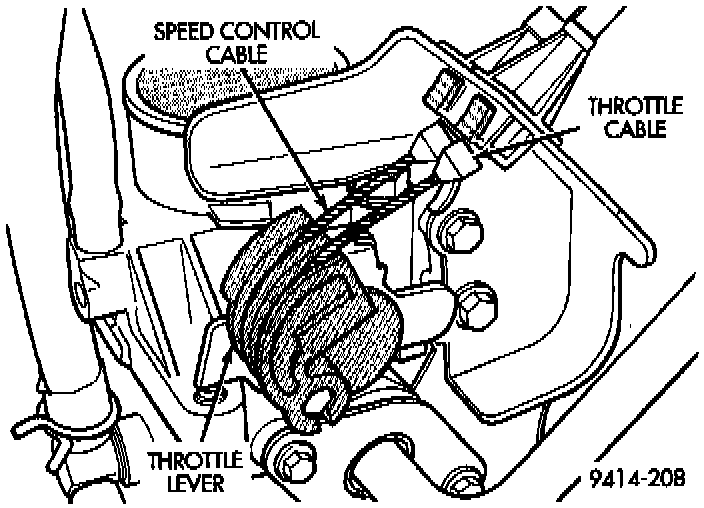

Throttle Cable Attachment To Throttle Body-Manual Transmission:

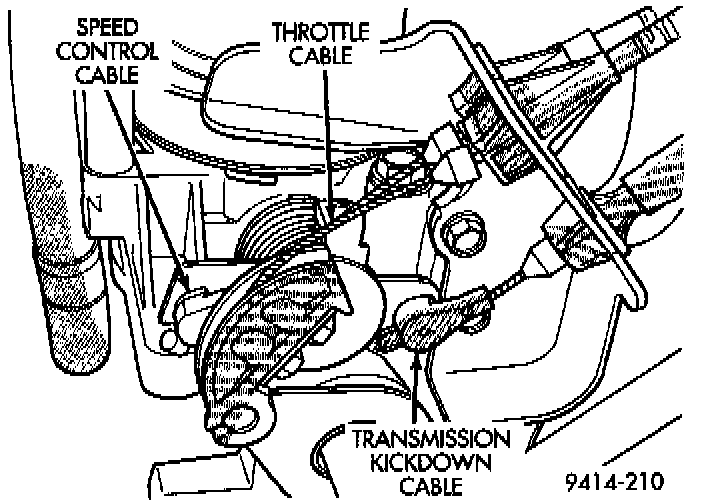

Throttle Cable Attachment To Throttle Body-Automatic Transmission:

Disconnecting Throttle Cable - Typical:

1. Remove throttle control shield.
2. Remove throttle clasp from the throttle body lever.
3. Remove speed control cable from throttle lever by sliding clasp out hole used for throttle cable.
4. Compress the retaining tabs on the cable and slide cable out of bracket.
5. Disconnect electrical connector from servo.
6. Disconnect vacuum hose from servo
7. Remove 2 nuts retaining bracket to servo.
8. Remove push nuts holding cable housing to servo.
9. Remove retaining clip holding cable to servo.

INSTALLATION
1. Install retaining clip to cable at servo.
2. Slide cable bell housing over servo mounting studs.
3. Install servo mounting studs into bracket.
4. Install 2 nuts at cable to servo and servo bracket, tighten to 7 N.m (60 ins. lbs.).
5. Connect electrical connector to servo.
6. Connect vacuum hose to servo.
7. Slide cable into throttle cable bracket and engage retaining tabs.
8. Rotate the throttle lever forward to the wide open position and install speed control cable clasp.
9. Rotate the throttle lever forward to the wide open position and install throttle cable clasp.
10. Install throttle control shield. Tighten bolt to 5.6 N.m (50 in. lbs.).
