Home >> Plymouth >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Instrument Panel Speaker

Instrument Panel Speaker

REMOVAL

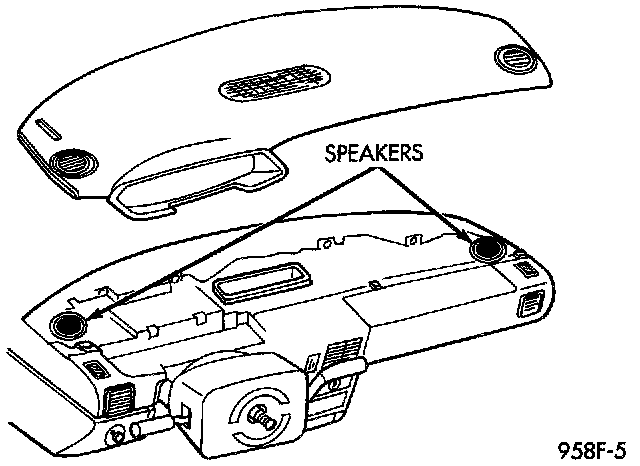

Instrument Panel Speakers:




1. Remove instrument panel top cover and cluster bezel. Instrument Panel, Gauges and Warning Indicators/Instrument Panel/for removal procedures.
2. Remove speaker retaining screws.
3. Remove speaker and disconnect wire connector.

INSTALLATION
For installation reverse the above procedures.
