No Response From ACM

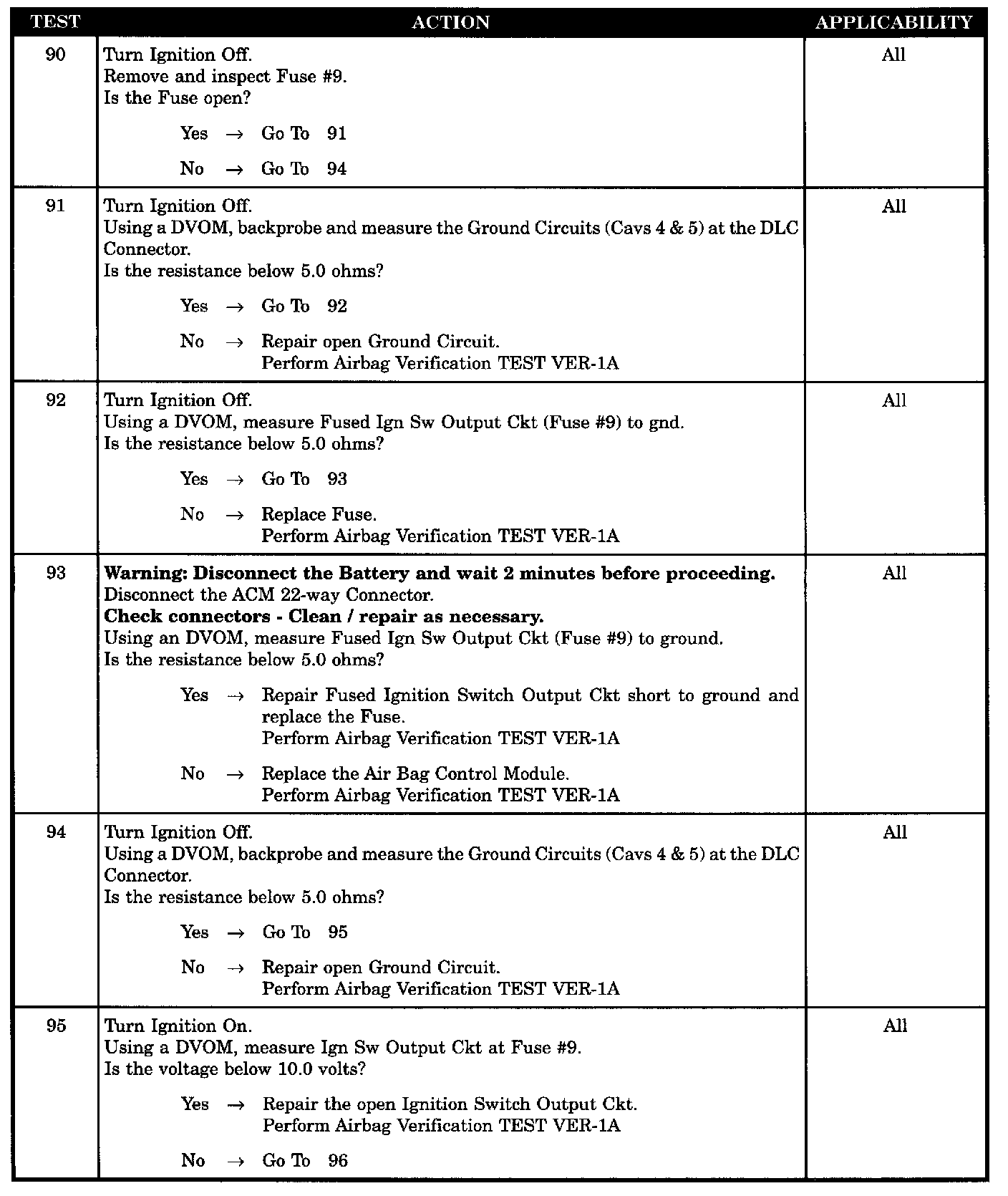

Tests 90 - 95:

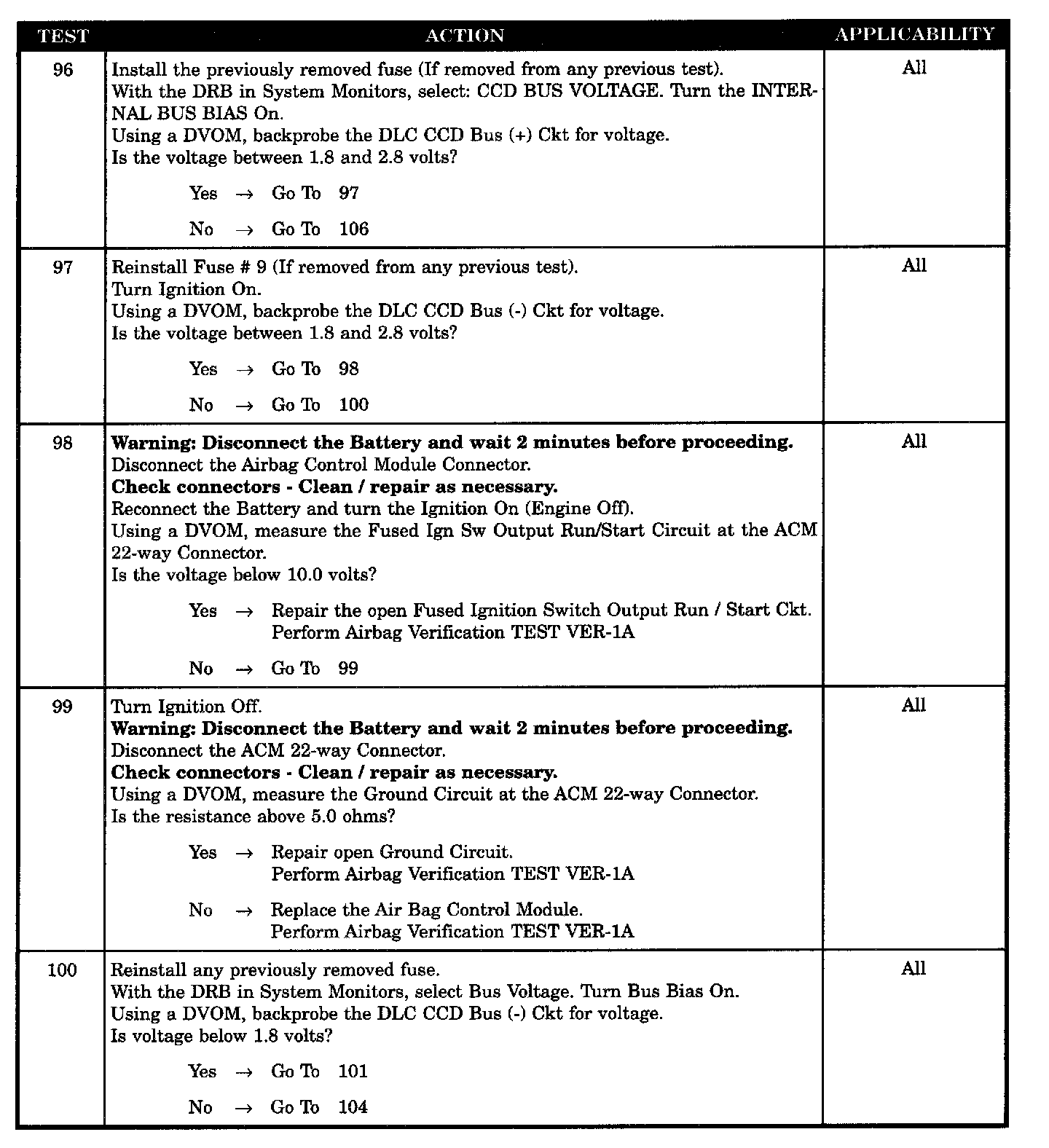

Tests 96 - 100:

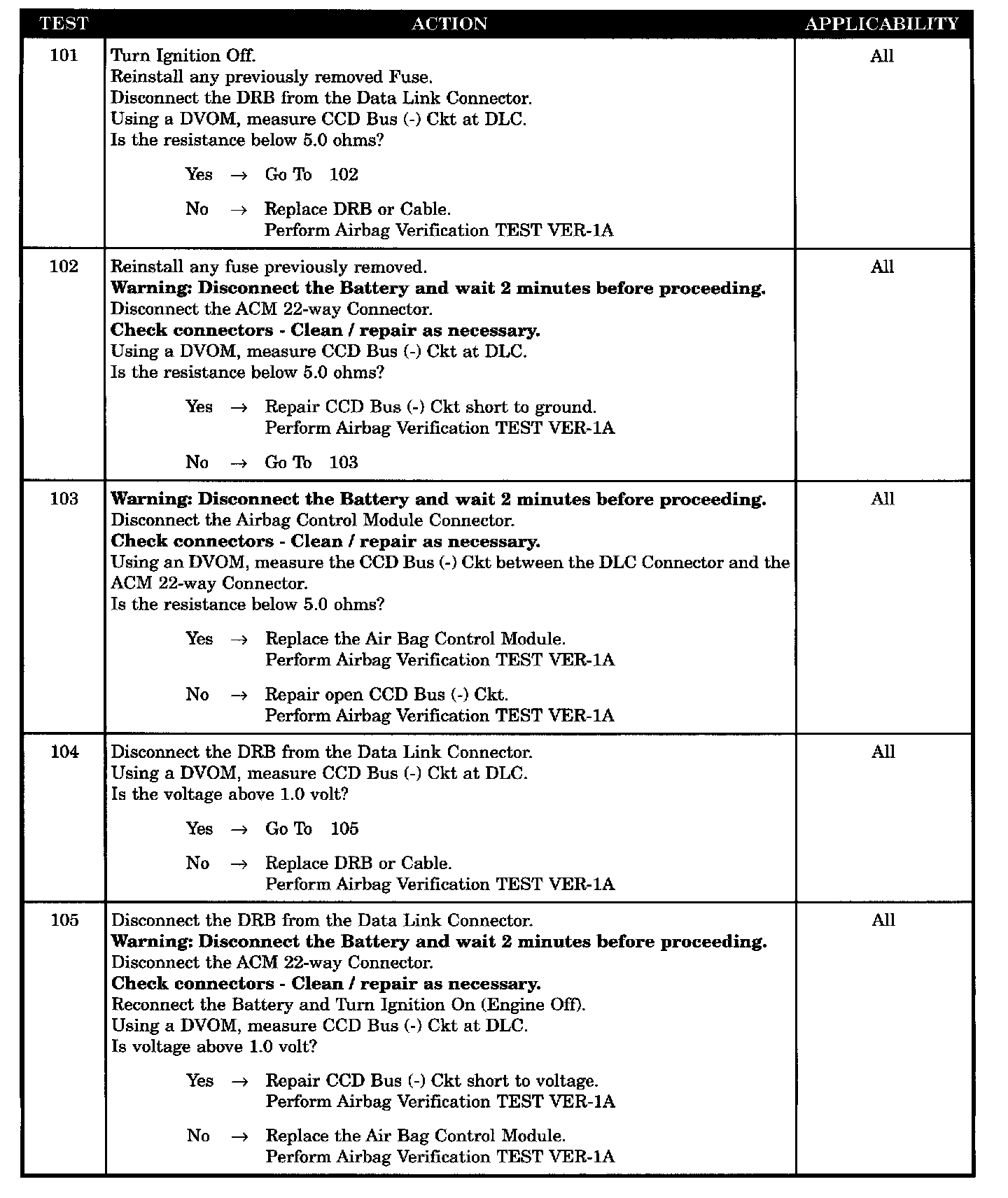

Tests 101 - 105:

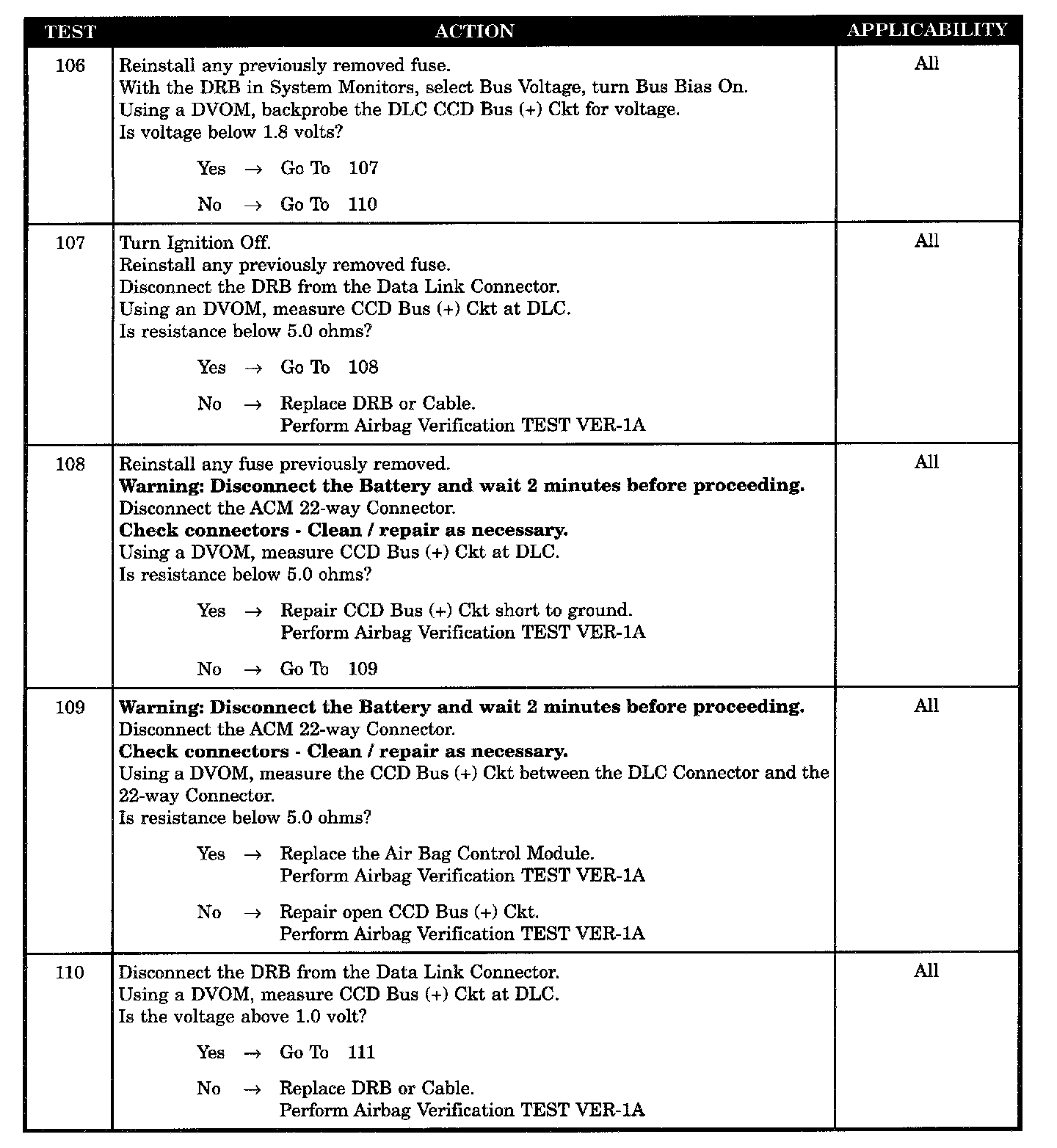

Tests 106 - 110:

Test 111:

SYMPTOM:
* NO RESPONSE FROM ACM

POSSIBLE CAUSES
- ACM DEF bus (+) CKT open
- ACM DEF bus (+) CKT short to voltage
- ACM DEF bus (-) circuit short to voltage
- ACM DEF bus (-) CKT open
- ACM DEF IGN SW out CKT SHRT GND
- ACM Defective GND circuit open
- ACM ground circuit open
- CCD bus (+) circuit open
- CCD bus (+) circuit short to ground
- CCD bus (+) circuit short to voltage
- CCD bus (-) circuit open
- CCD bus (-) circuit short to ground
- CCD bus (-) circuit short to voltage
- DRB or cable bus (+) circuit
- DRB or cable bus (+) circuit at DLC/Defective
- DRB or cable bus (-) circuit
- DRB or cable bus (-) circuit at DLC
- Fuse #9 Defective open
- Fused ignition Switch output CKT short to GND
- Fused ignition Switch run / start circuit open
- Ground circuit open
- Ignition Switch output circuit open
