Electrical Diagrams

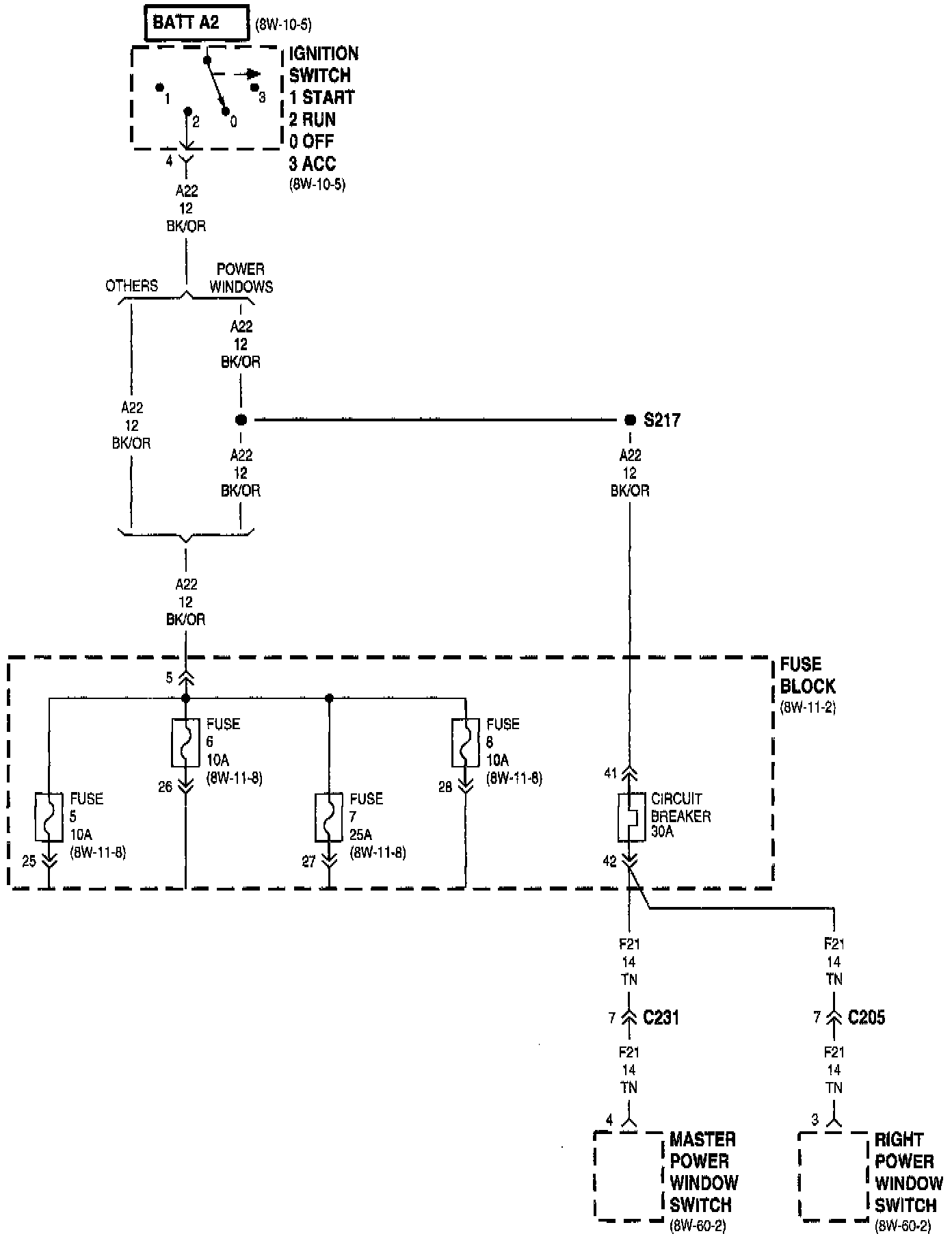

Fuse Block (Part 1 Of 11):

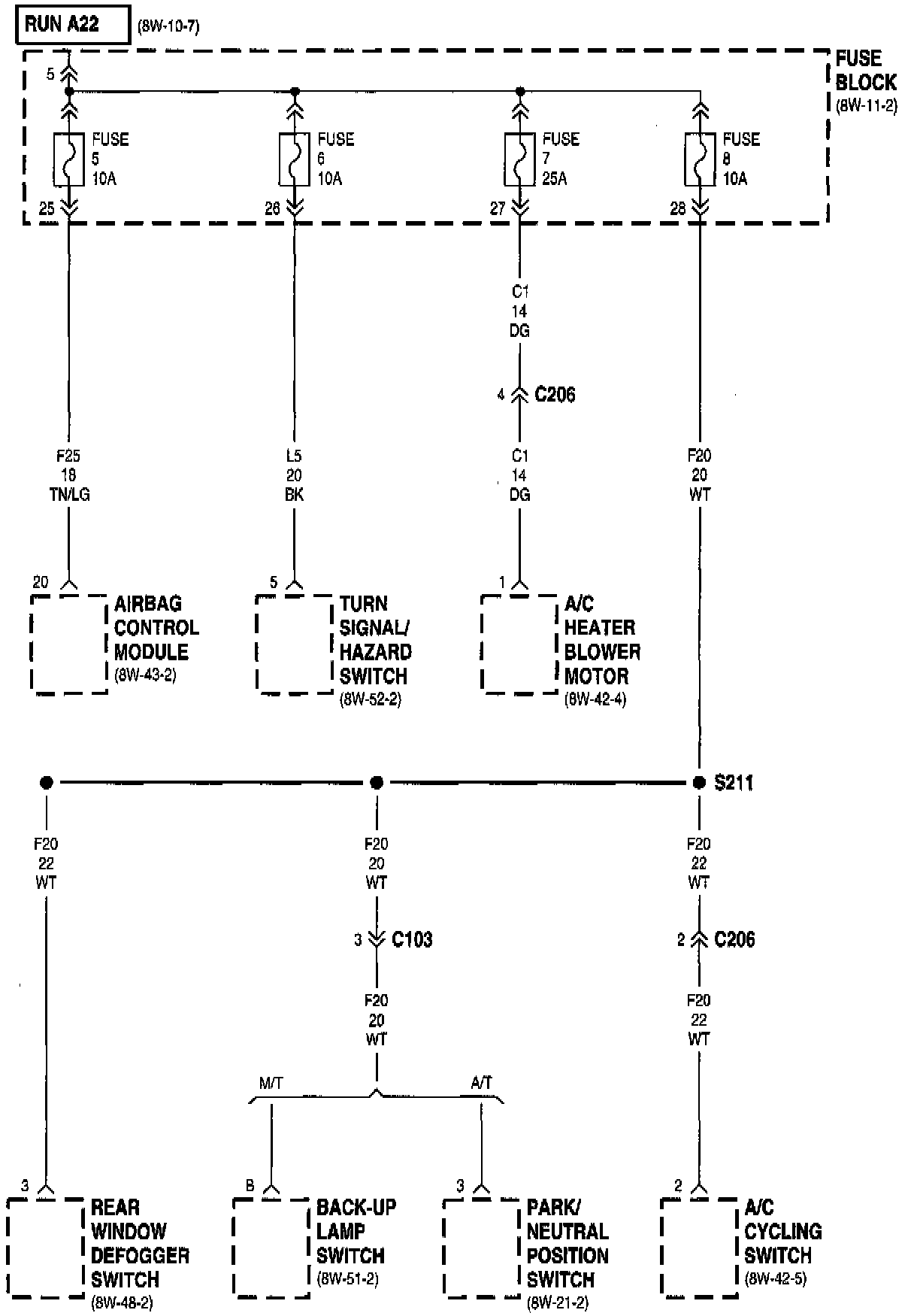

Fuse Block (Part 2 Of 11):

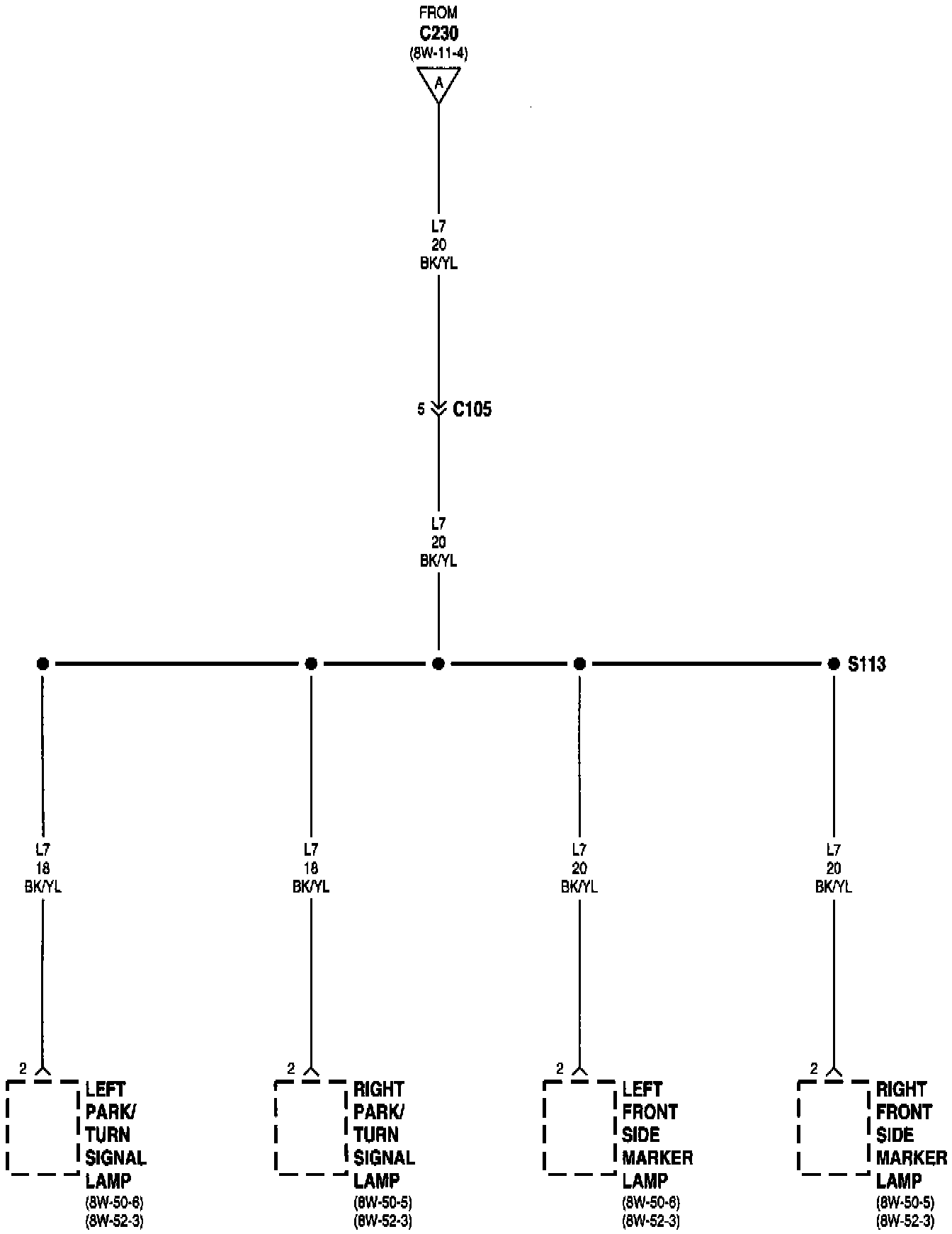

Fuse Block (Part 3 Of 11):

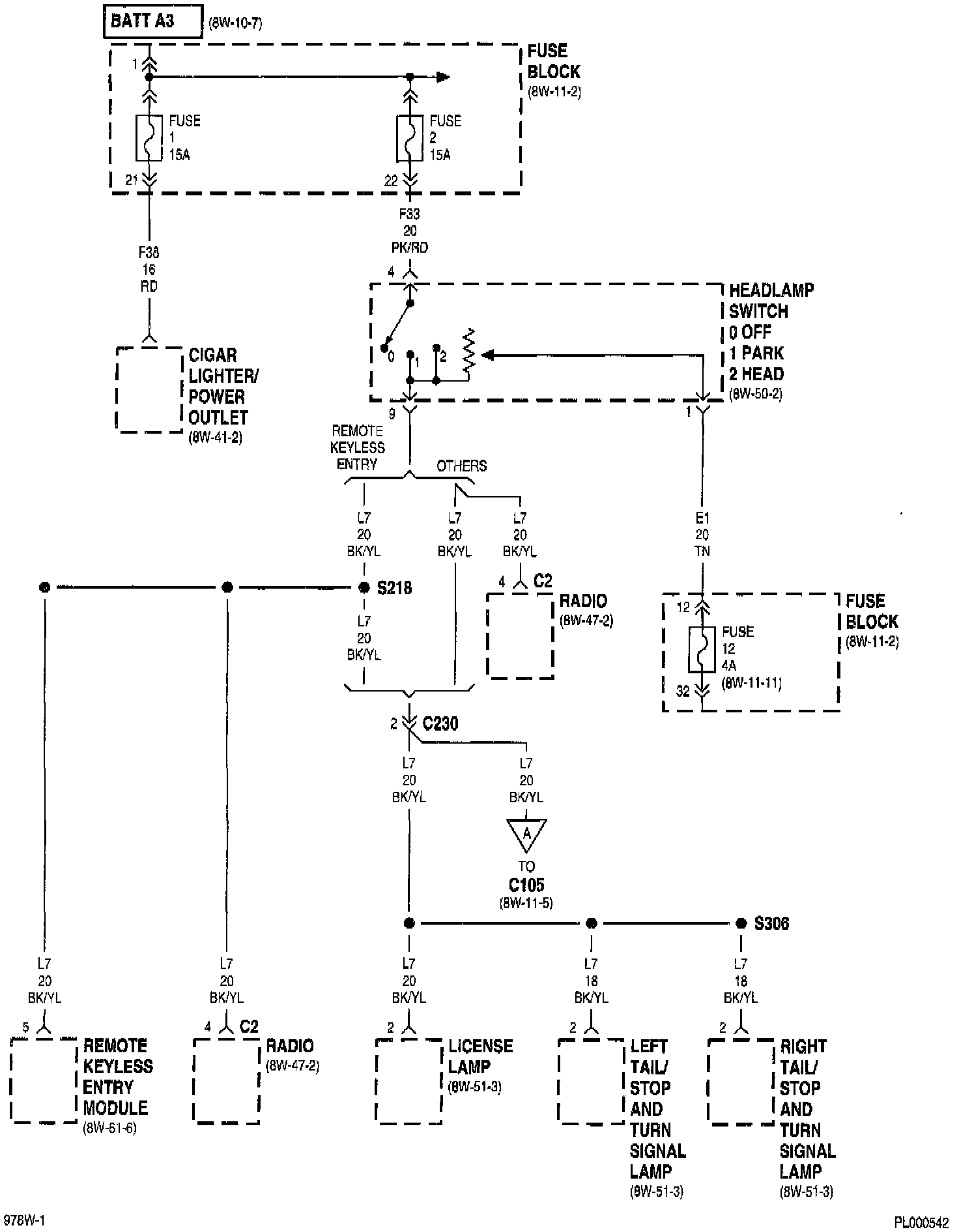

Fuse Block (Part 4 Of 11):

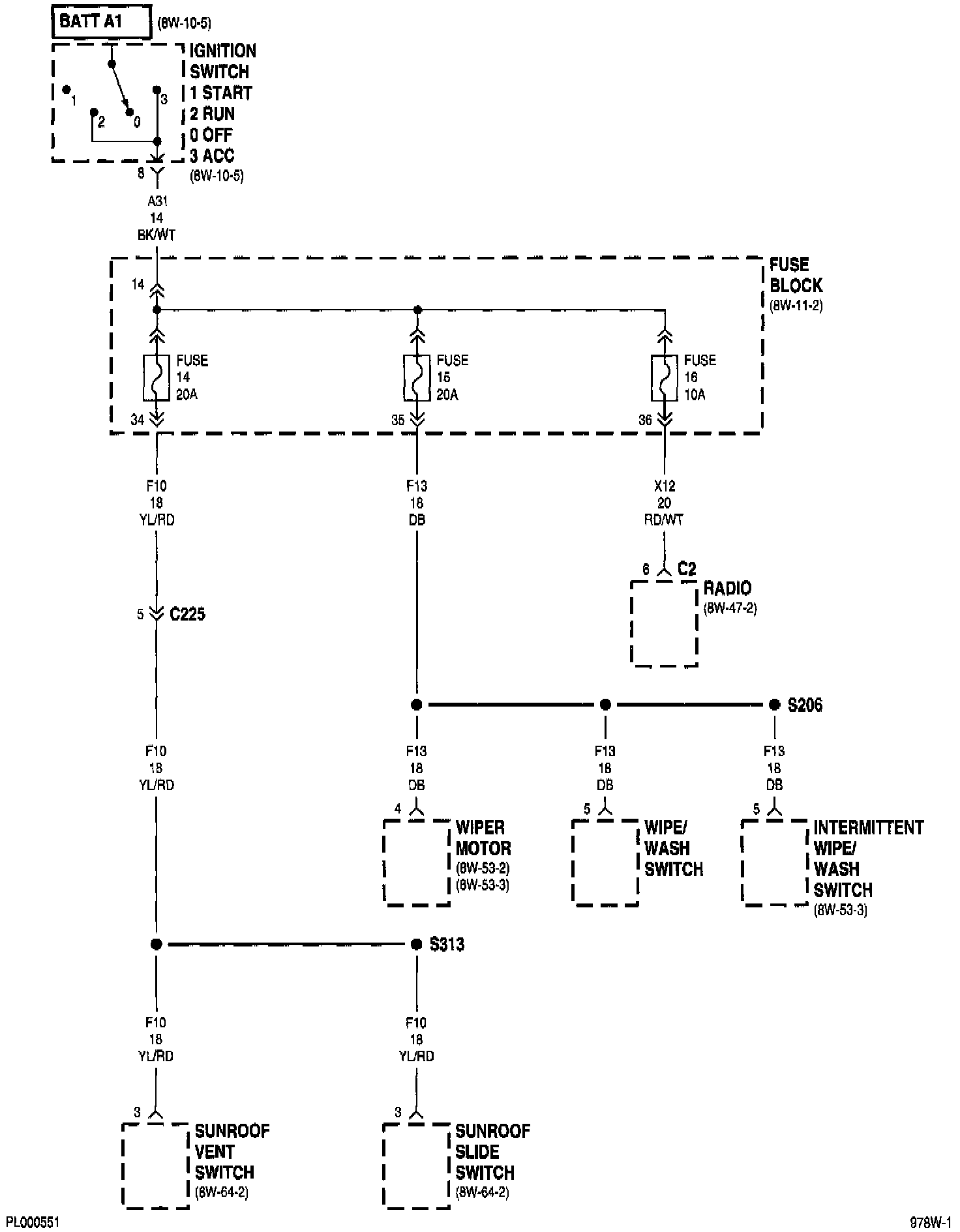

Fuse Block (Part 5 Of 11):

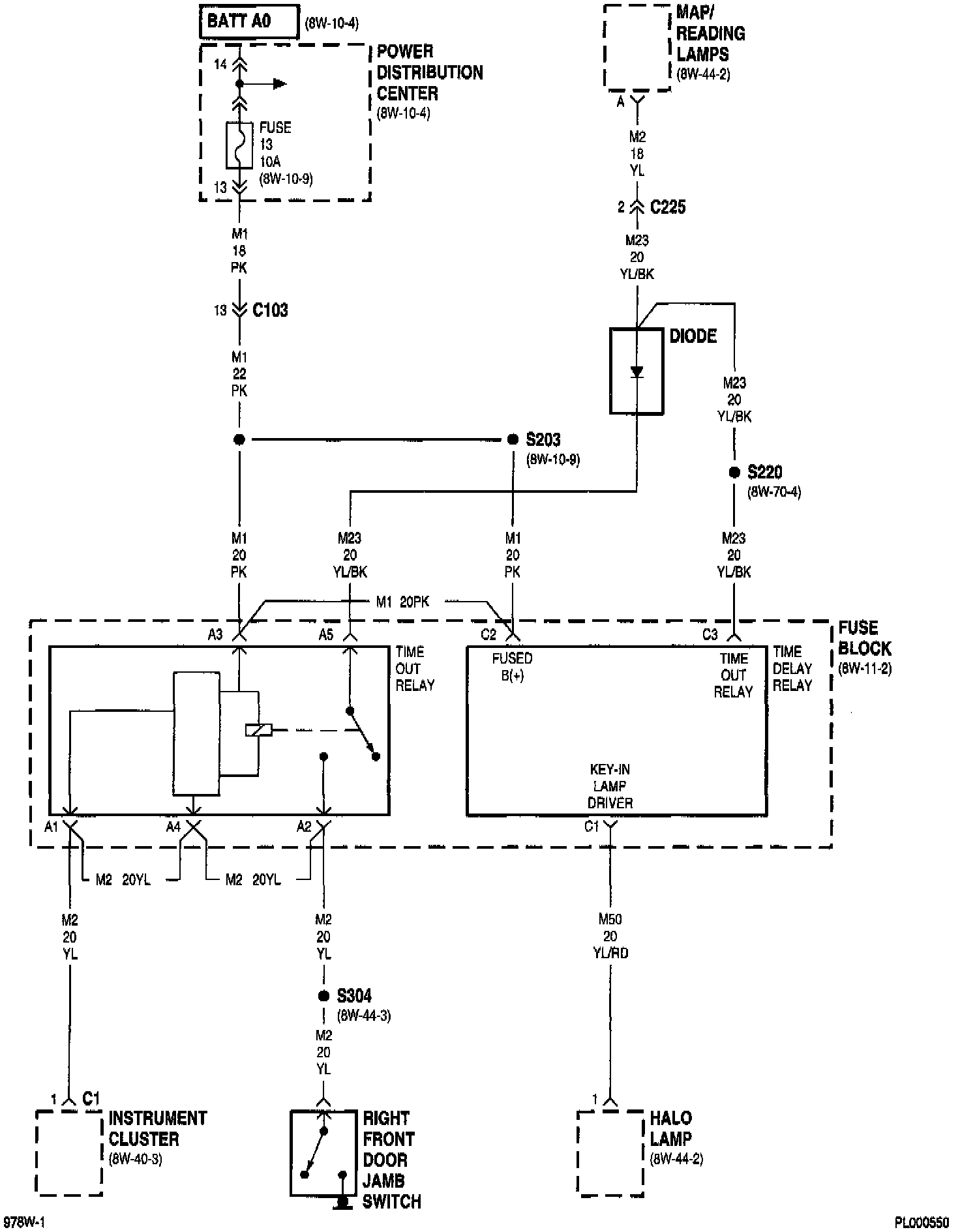

Fuse Block (Part 6 Of 11):

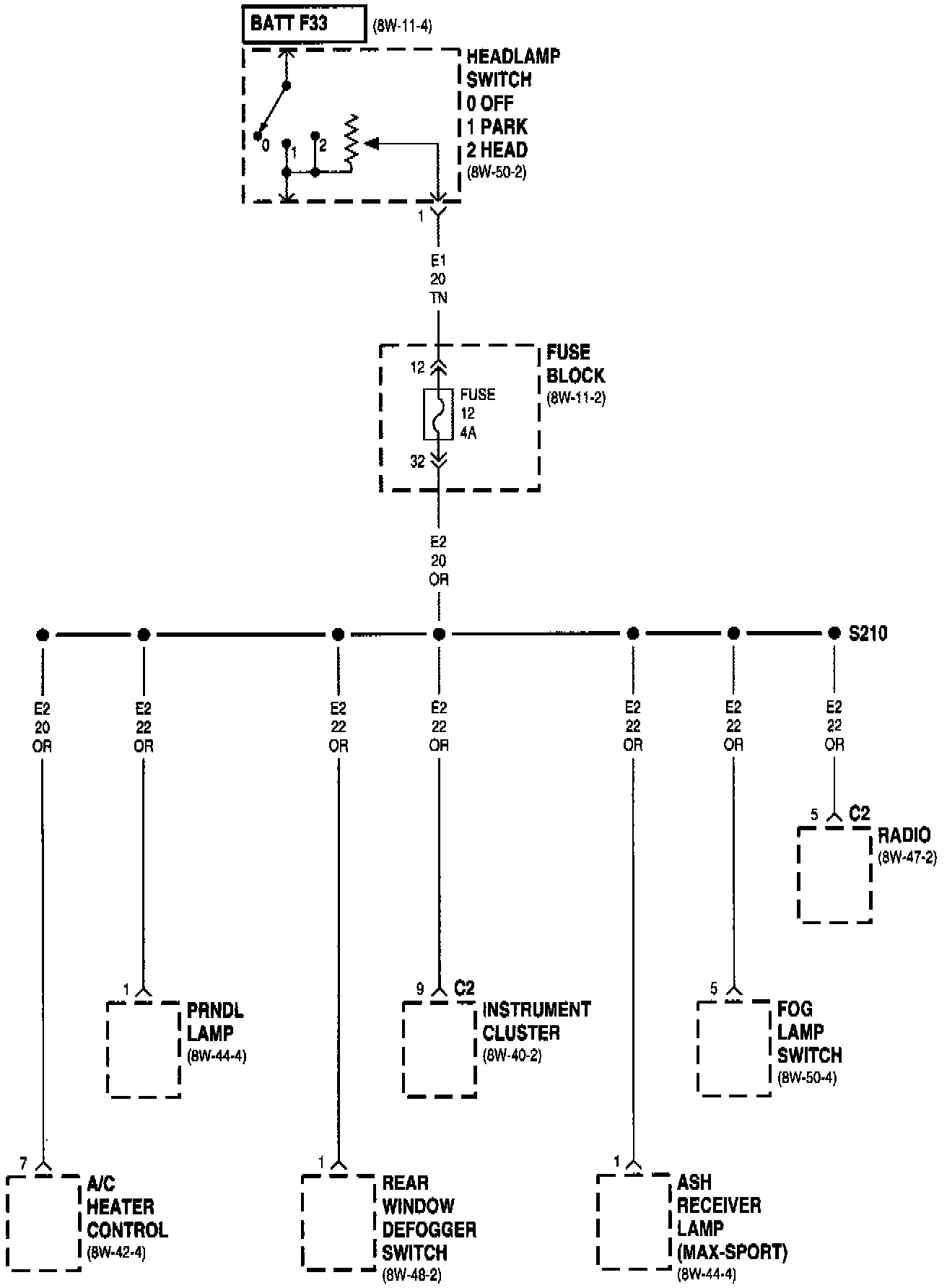

Fuse Block (Part 7 Of 11):

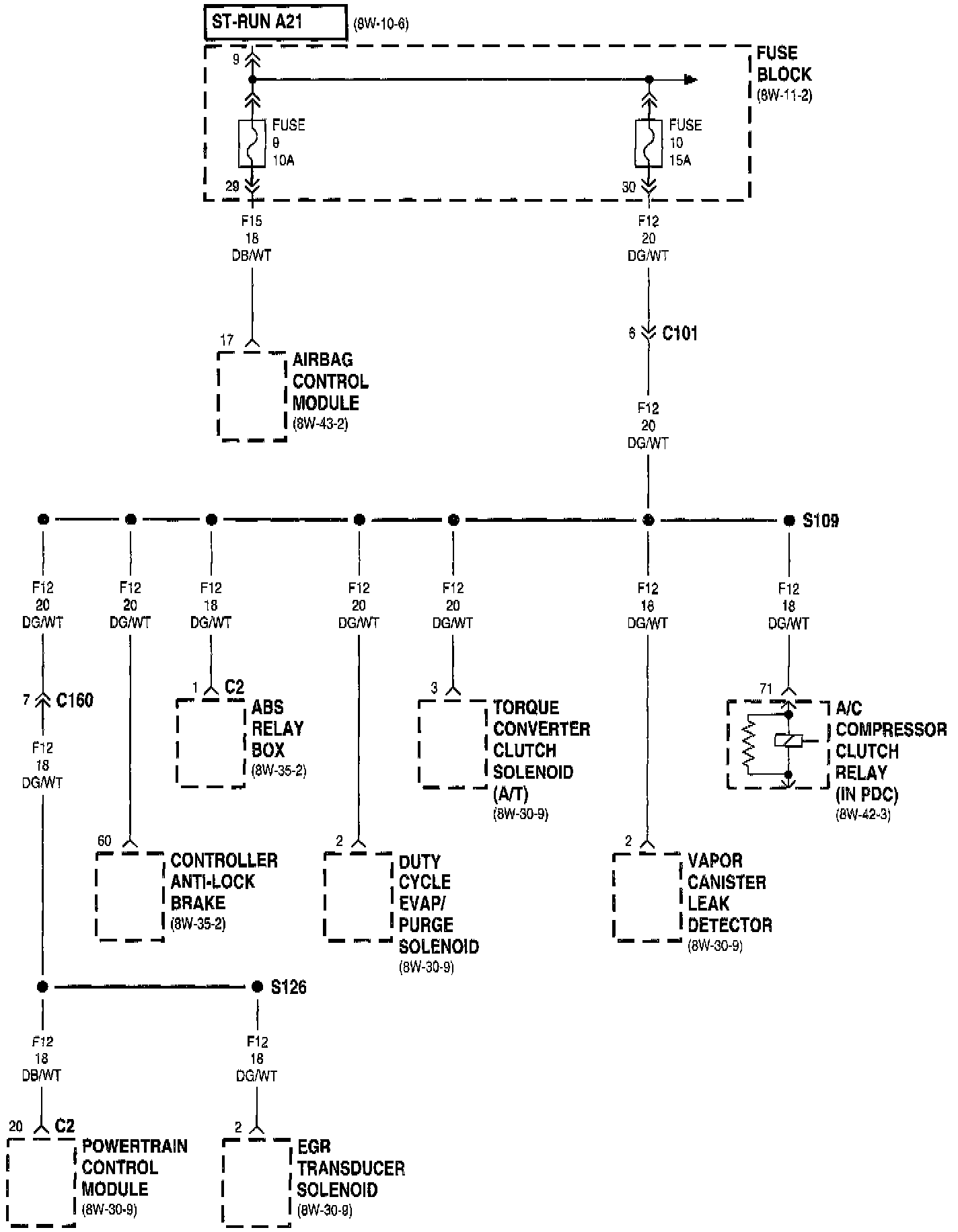

Fuse Block (Part 8 Of 11):

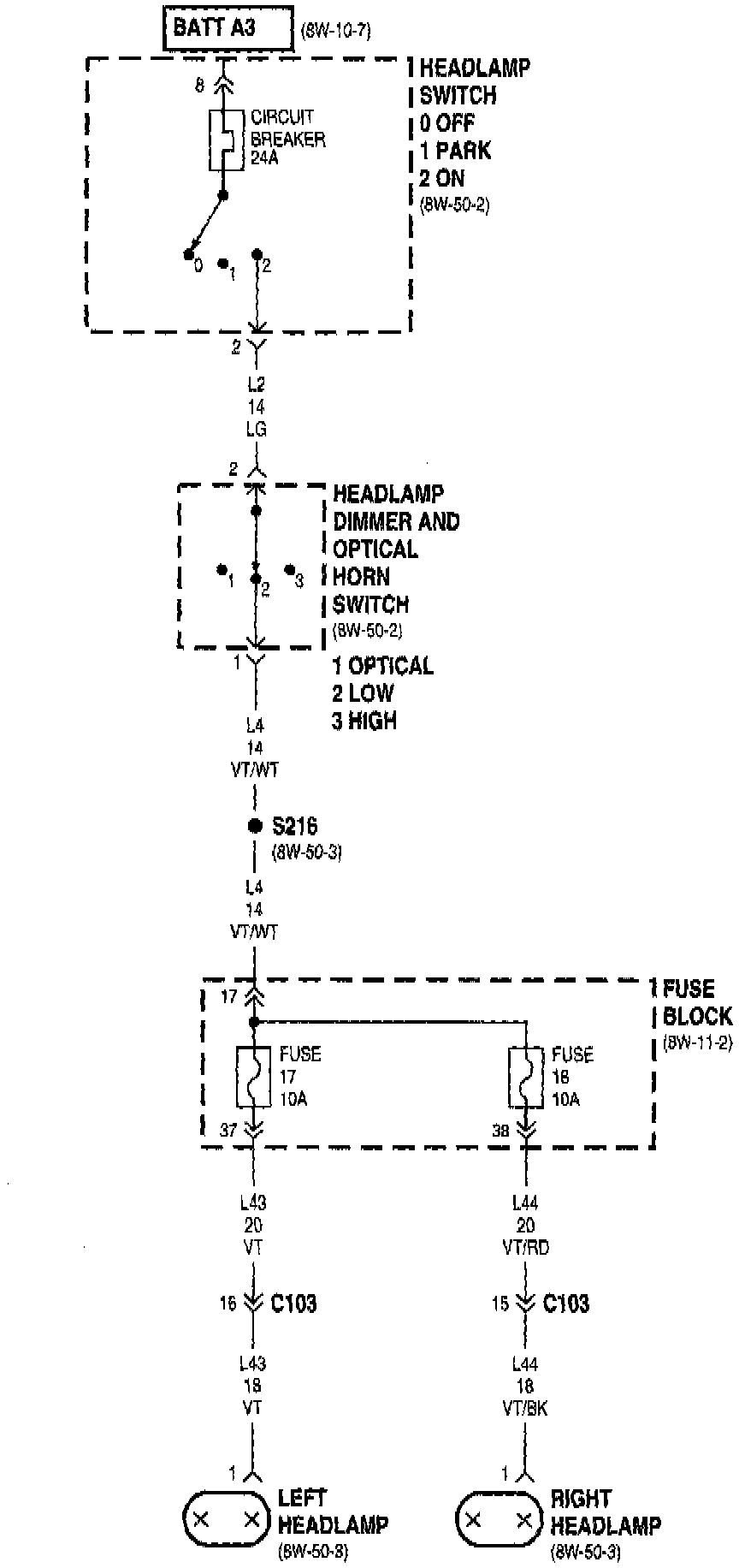

Fuse Block (Part 9 Of 11):

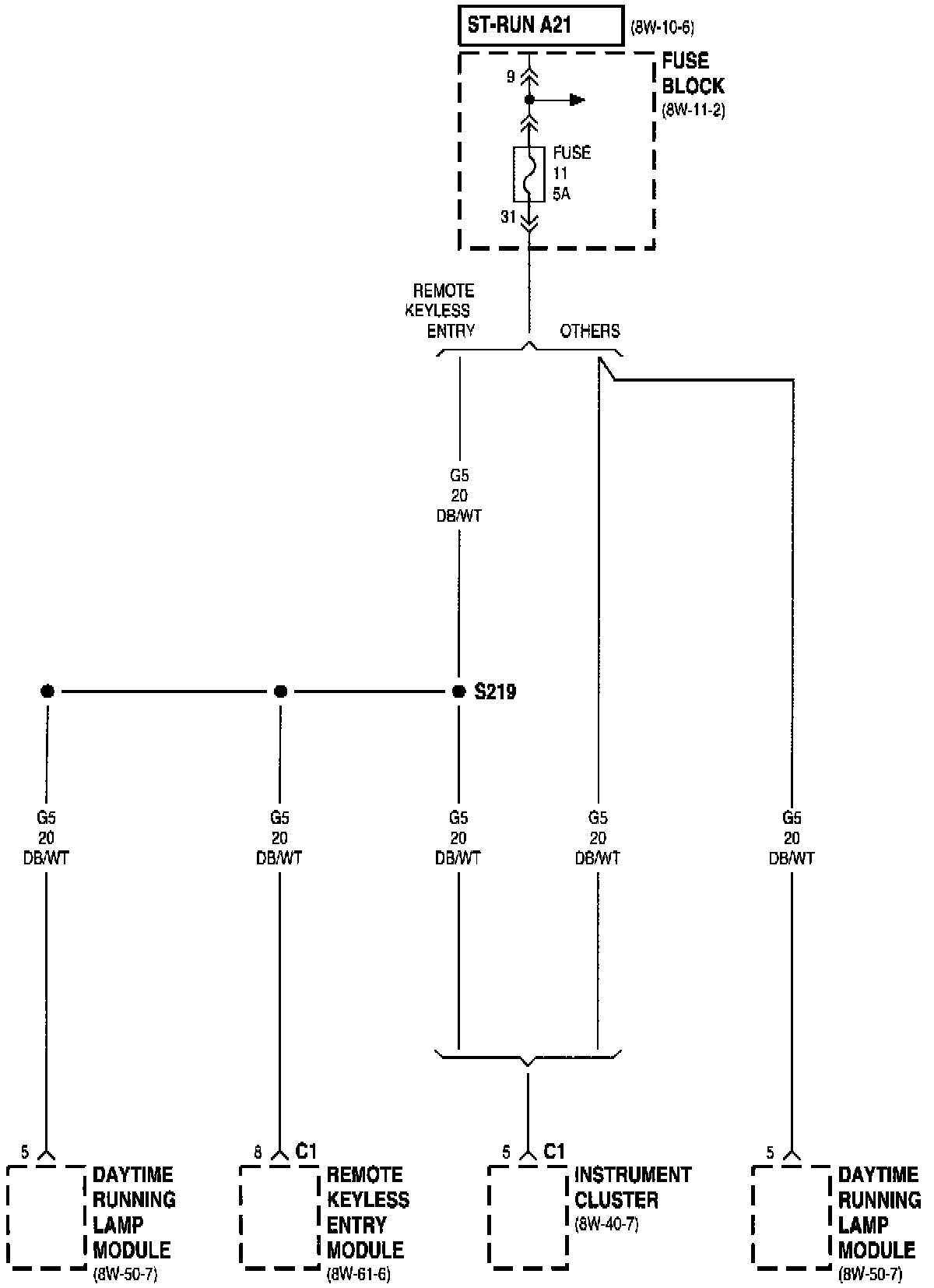

Fuse Block (Part 10 Of 11):
Fuse Block (Part 11 Of 11):
NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
