Charging System Tests

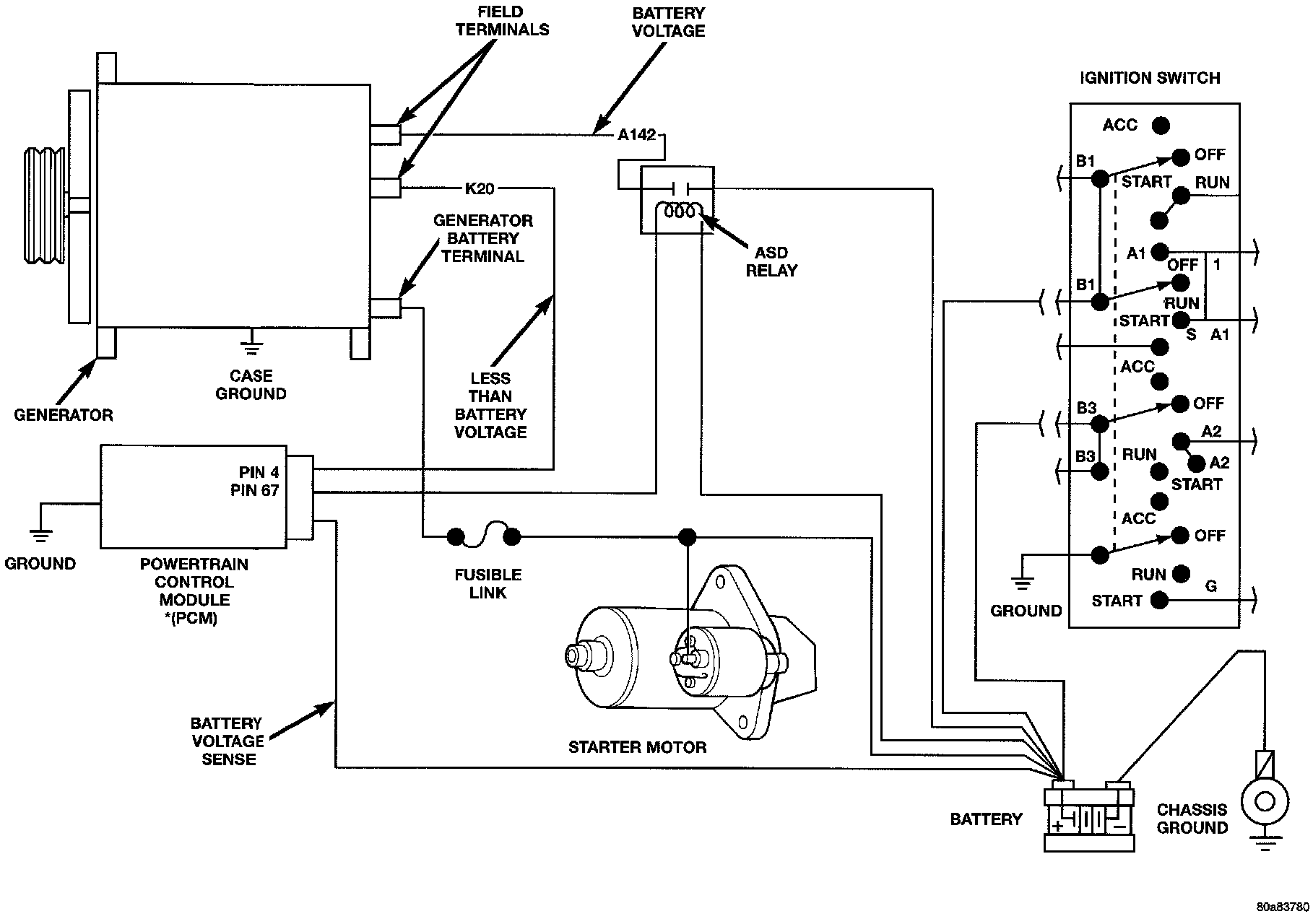

Charging System Schematic-Typical:




Charging System Schematic-Typical

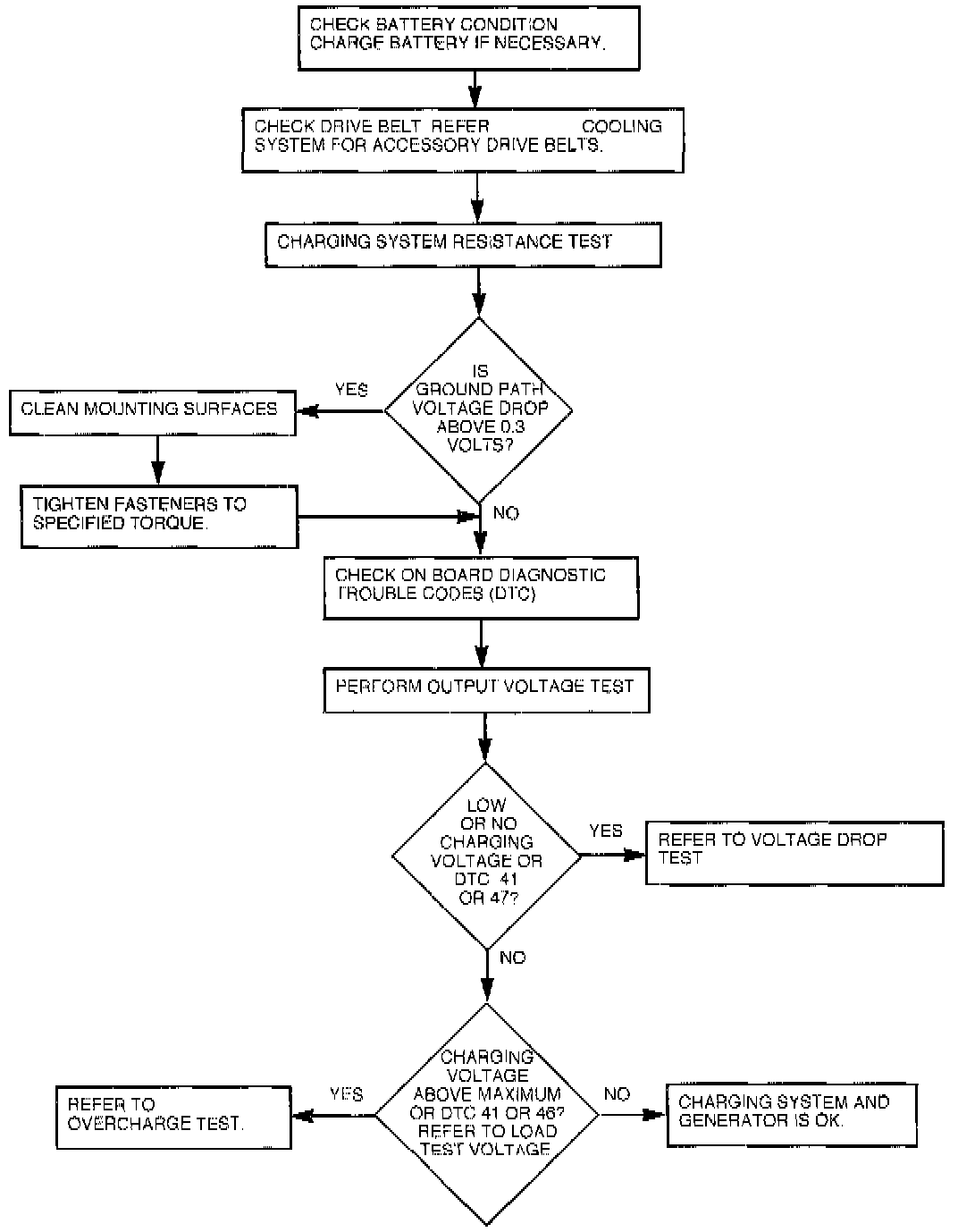

Charging System Test:




Charging System Test

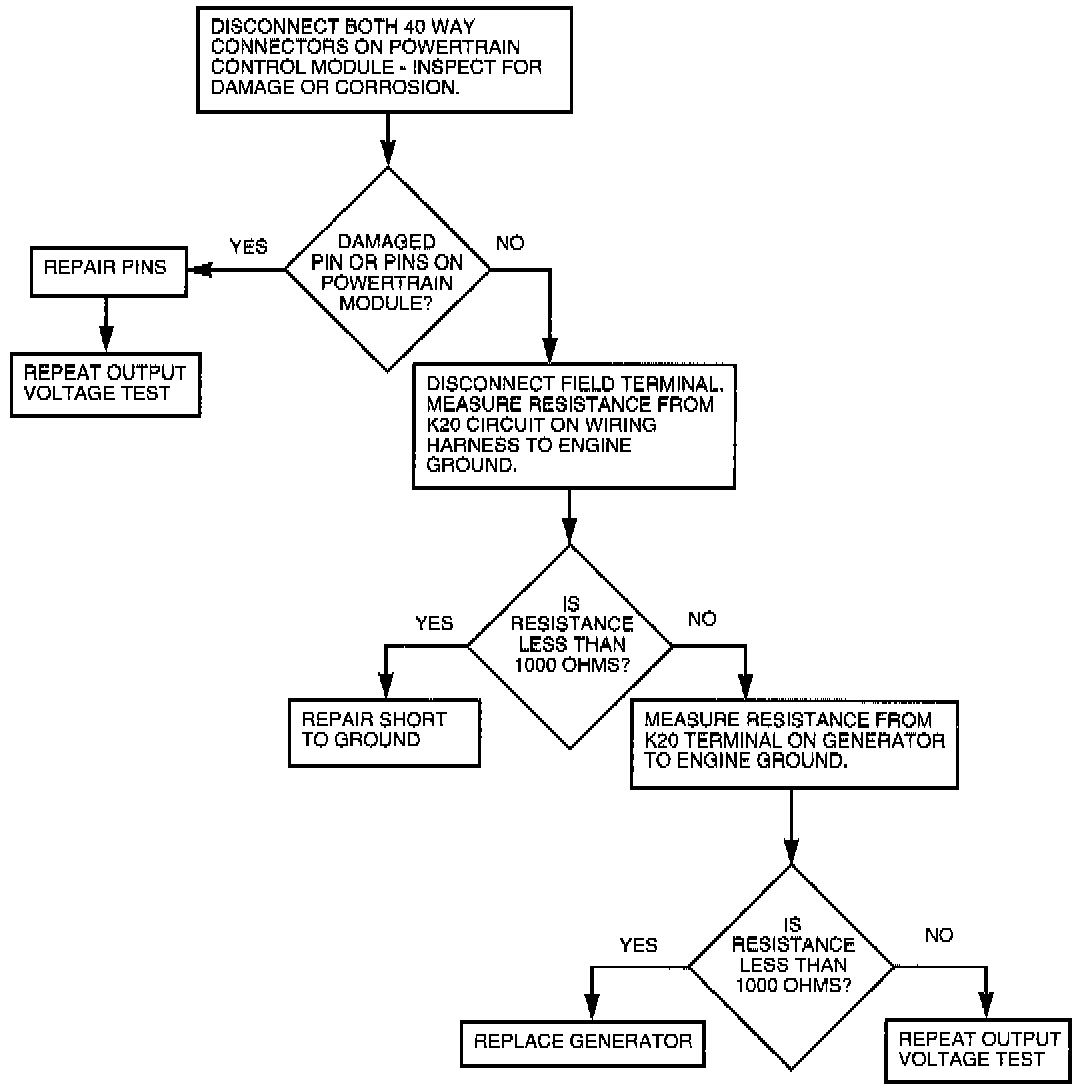

Overcharge Test:




Overcharge Test
