Wiper Switch
>>
Testing and Inspection
Wiper Switch: Testing and Inspection

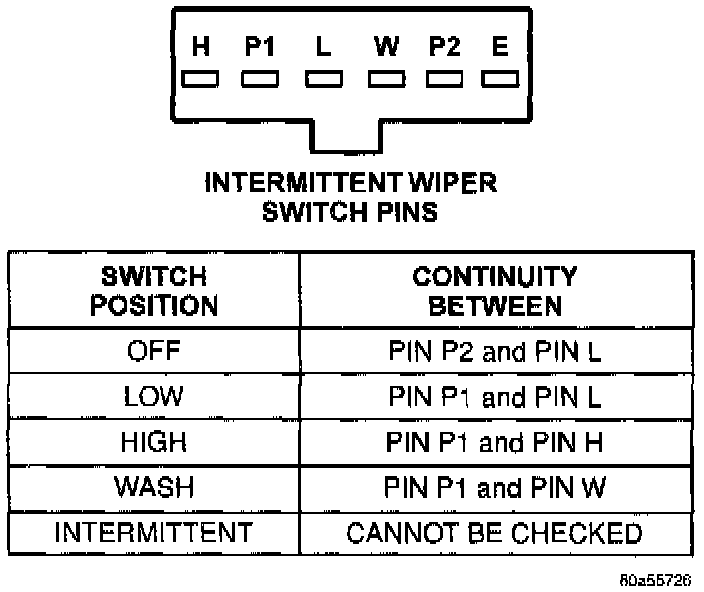

Wiper Switch Test:
To test the switch, first disconnect the switch wires from the body wiring in the steering column. Using an ohmmeter, test for continuity between the terminals of the switch, as indicated.
