Power Mirror Switch: Testing and Inspection

Mirror Switch Test:

1. Remove power mirror switch from mounting position.
2. Disconnect wiring harness at switch connector.

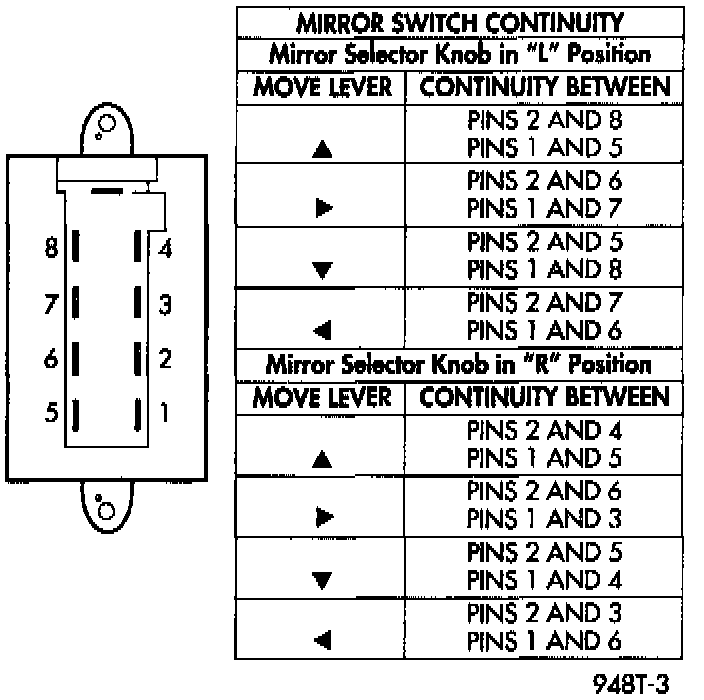

3. Using an ohmmeter, test for continuity between the terminals of the switch as shown in the Mirror Switch Test and RHD Power Fold Away Mirror Switch Test.
4. If test results are not obtained as shown, replace the switch.
