Cooling System - Cooling Fan Relay Pin-Out Revisions
NUMBER: 26-06-98DGROUP: Miscellaneous
DATE: June, 1998
REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN
Models:
1997 2.0L, 2.4L, 2.5L, 3.3L, 3.5L SFI Diagnostic Manual - Publication Number 81-699-96040
DESCRIPTION OF CHANGES

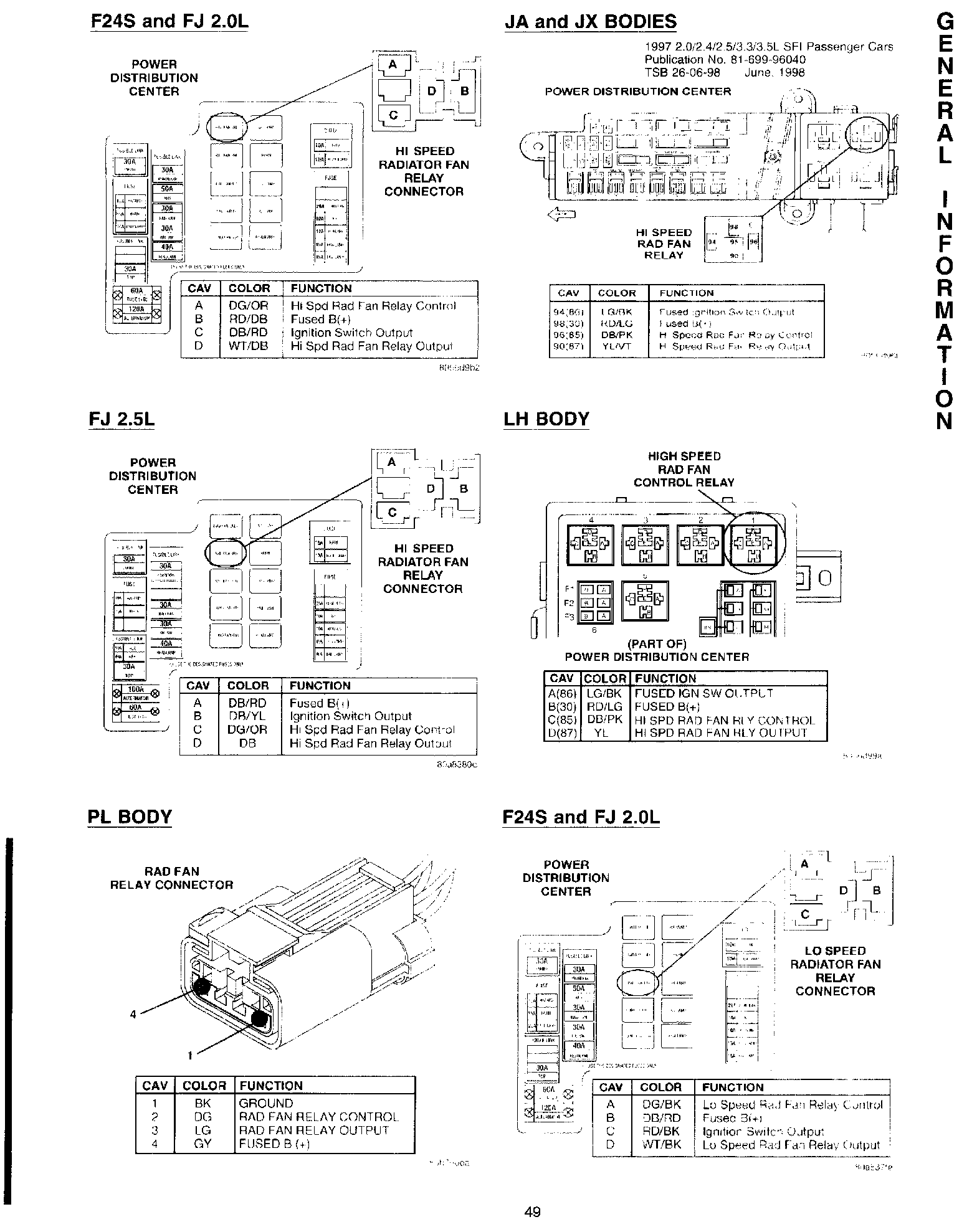

Revision to the PL body radiator fan relay connector pin out
10
49
110
111
