System Operation
SYSTEM OPERATIONHazard Warning System
The hazard warning system is actuated by a slide button located on the top of the steering column between the steering wheel and the instrument panel. The hazard switch is identified with a double triangle on front of the button.
Combination Flasher
The turn signal flasher and the hazard warning flasher are combined into one unit called a combination flasher (combo-flasher). The combo-flasher controls the flashing of the hazard warning system and the turn signal system. An inoperative bulb or incomplete turn signal circuit will cause the flasher rate to double.
Combo-Flasher:

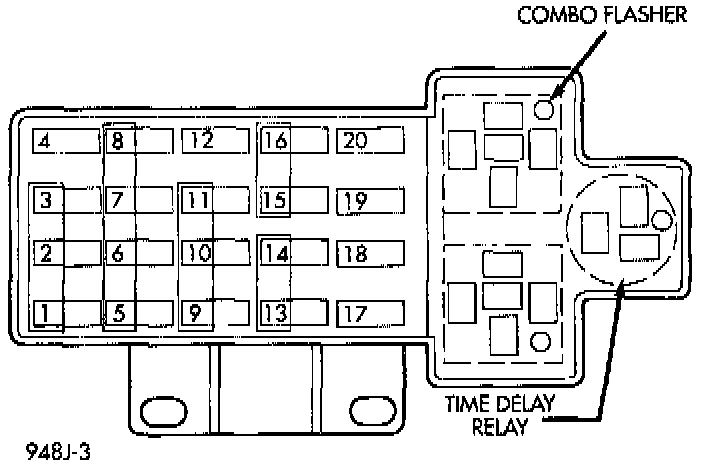

The combo-flasher is located on the fuse block. The combo-flasher is black in color for ease of identification.
