Introduction

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAG,SEE AIR BAGS AND SEAT BELTS/AIR BAG FOR STEERING WHEEL OR COLUMN REMOVAL PROCEDURES.

Horn System:

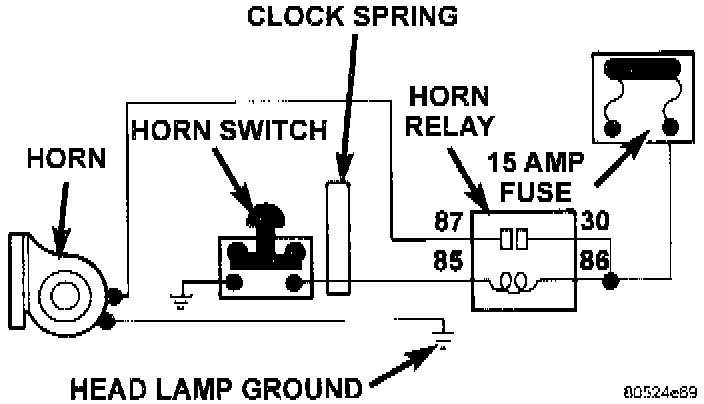

The horn circuit consists of a horn switch, horn relay, and horn. The horn circuit feed is from the fuse to the horn relay in the Power Distribution Center (PDC). The PDC is mounted on the battery tray. When the horn switch is depressed, it completes the ground circuit. The horn relay coil closes contacts and allows current to flow to the horn. The horn is grounded to the headlamp ground connection.

NOTE: This information covers both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) versions of this model. Whenever required and feasible, the RHD versions of affected vehicle components have been constructed as mirror-image of the LHD versions. While most of the illustrations used represent only the LHD version, the diagnostic and service procedures outlined can generally be applied to either version. Exceptions to this rule have been clearly identified as LHD, RHD, or Export if a special illustration or procedure is required.
