Installation

1. Slide radiator down into position behind radiator support (yoke).





2. Attach air conditioning condenser to radiator if equipped, with four mounting screws and tighten to 5.4 Nm (50 inch lbs.). Then seat the assembly lower rubber isolators into the mounting holes provided in the lower crossmember.
3. Tighten radiator isolator mounting bracket screws to 7.4 Nm (65 inch lbs.). The radiator should have clearance to move up approximately 5 - 8 mm (0.25 inch) after assembled.
4. Connect automatic transmission hoses, if equipped. Tighten hose clamps to 4 Nm (35 inch lbs.).

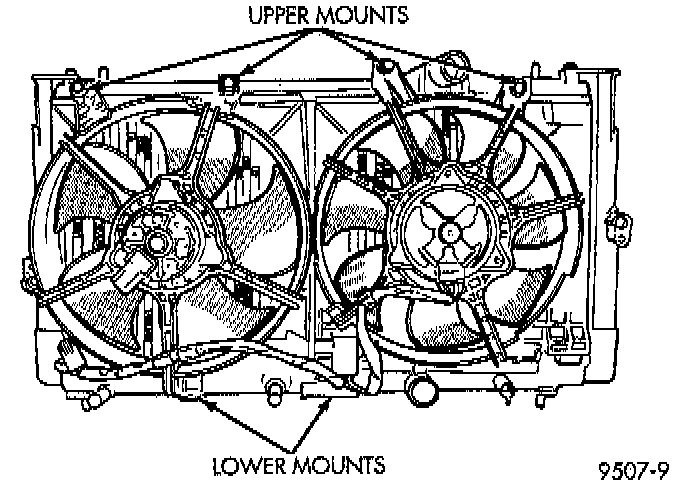

5. Slide fan module down into clip(s) on lower radiator flange. For dual fan application install the right fan module first and then the left fan module. Install retaining screws and tighten to 5.4 Nm (50 inch lbs.).
6. Install radiator hoses and coolant reserve hose align hoses and position hose clamps so they will not interfere with the engine or hood.
7. Connect fan motor electrical connection and connect negative battery cable.
8. Fill cooling system with coolant.
9. Operate engine until it reaches normal operating temperature. Check cooling system and automatic transmission for correct fluid levels.
