Wiring Diagrams

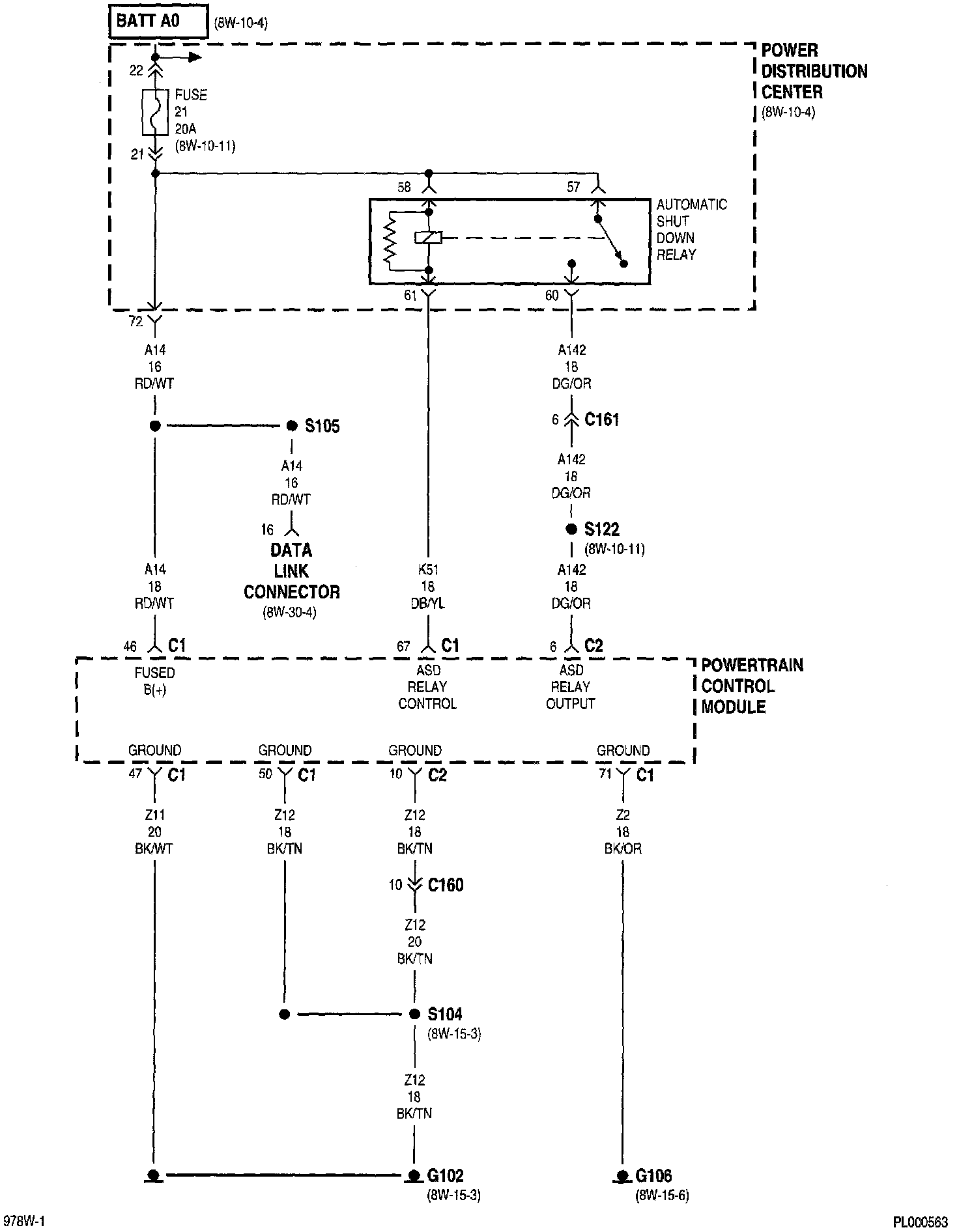

Fuel And Ignition Diagrams (Part 1 Of 11):






Automatic Shut Down Relay
Data Link Connector
Fuse 21 (PDC)
G102
G106
Power Distribution Center
Powertrain Control Module
S104
S105
S122

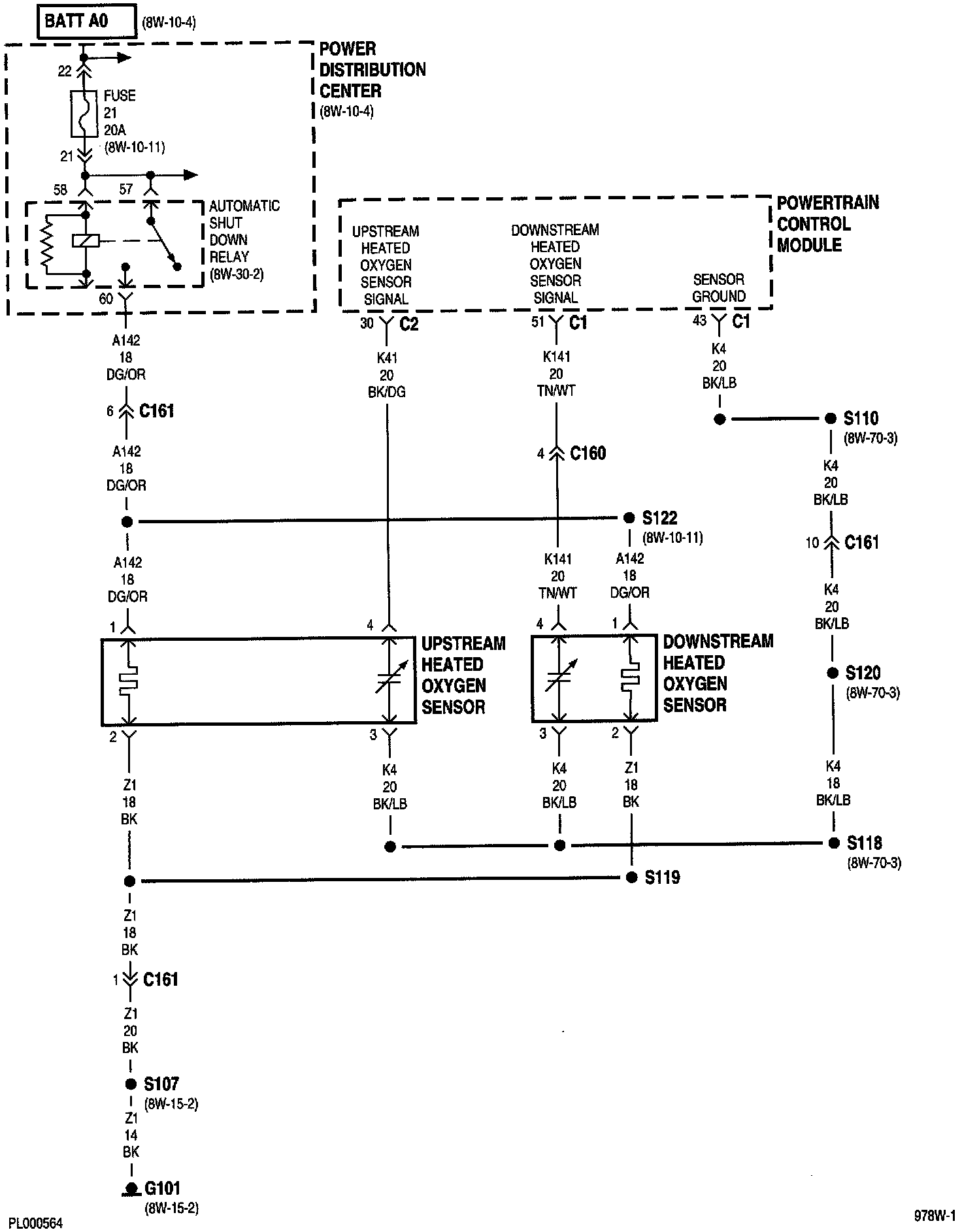

Fuel And Ignition Diagrams (Part 2 Of 11):






Automatic Shut Down Relay
Downstream Heated Oxygen Sensor
Fuse 21 (PDC)
G101
Power Distribution Center
Powertrain Control Module
S107
S110
S118
S119
S120
S122
Upstream Heated Oxygen Sensor

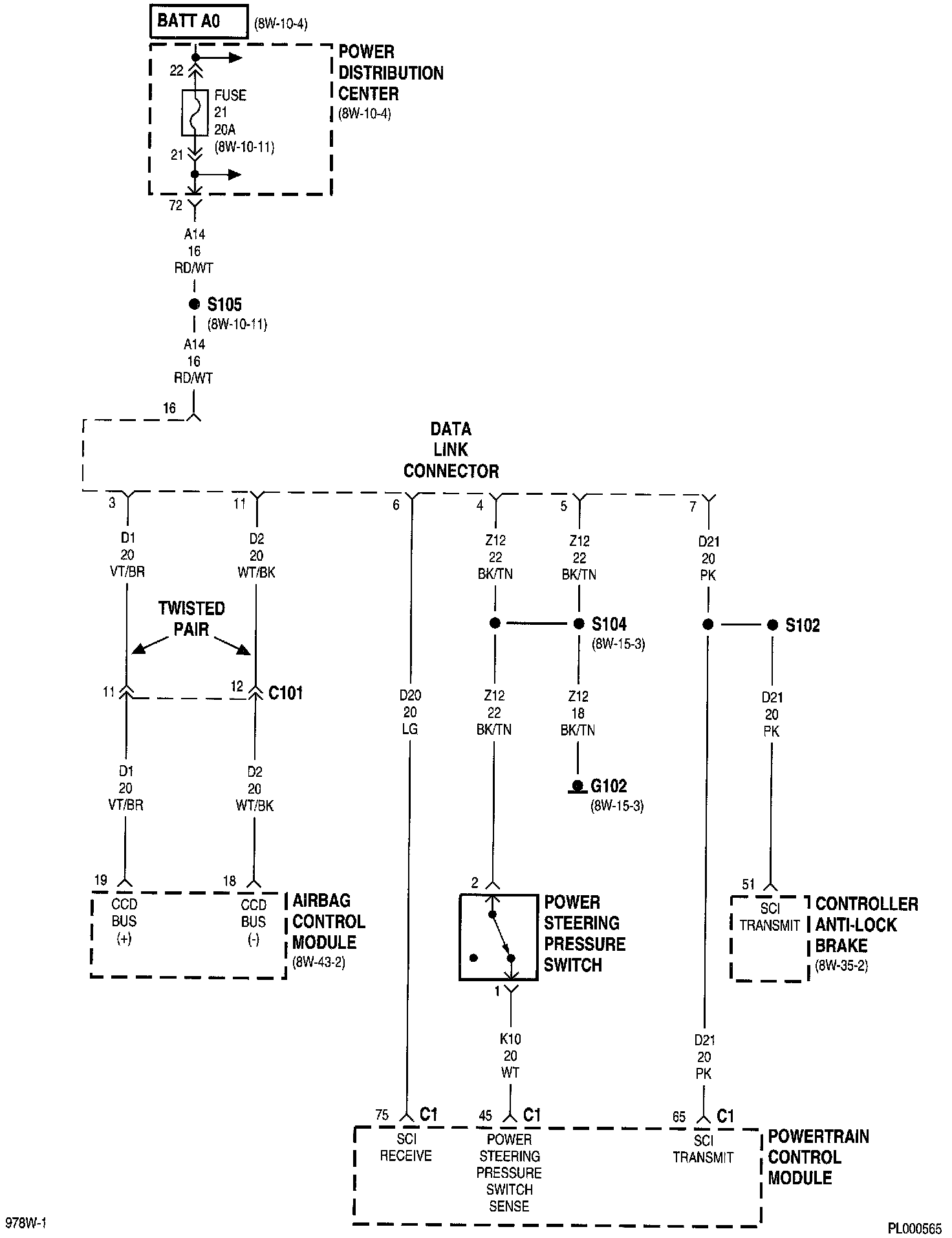

Fuel And Ignition Diagrams (Part 3 Of 11):






Airbag Control Module
Controller Anti-Lock Brake
Data Link Connector
Fuse 21 (PDC)
G102
Power Distribution Center
Power Steering Pressure Switch
Powertrain Control Module
S102
S104
S105

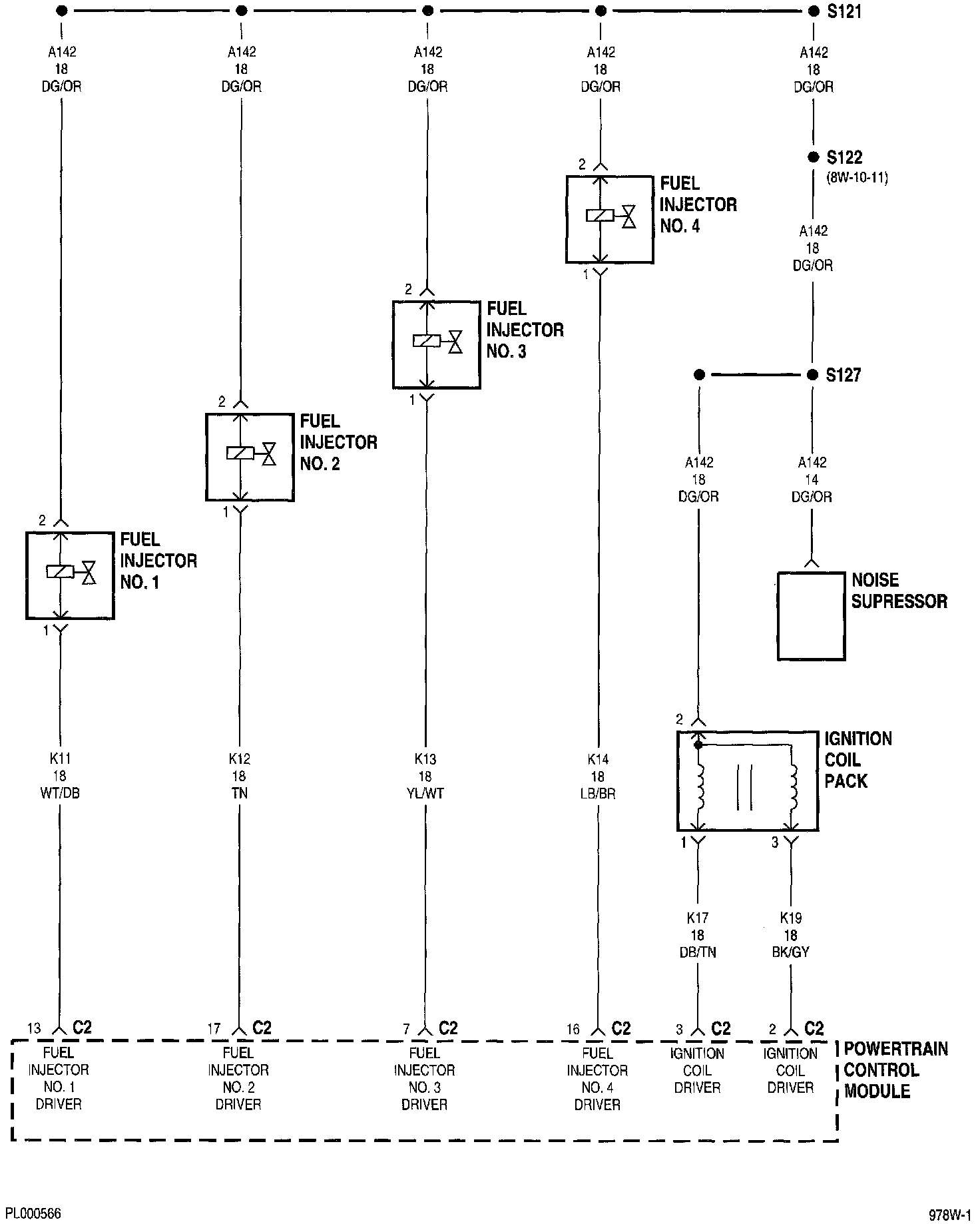

Fuel And Ignition Diagrams (Part 4 Of 11):






Fuel Injectors
Ignition Coil Pack
Noise Suppressor
Powertrain Control Module
S121
S122
S127

Fuel And Ignition Diagrams (Part 5 Of 11):






[1][2]IAT/MAP Sensor
Knock Sensor
Powertrain Control Module
S110
S120
S124
Throttle Position Sensor

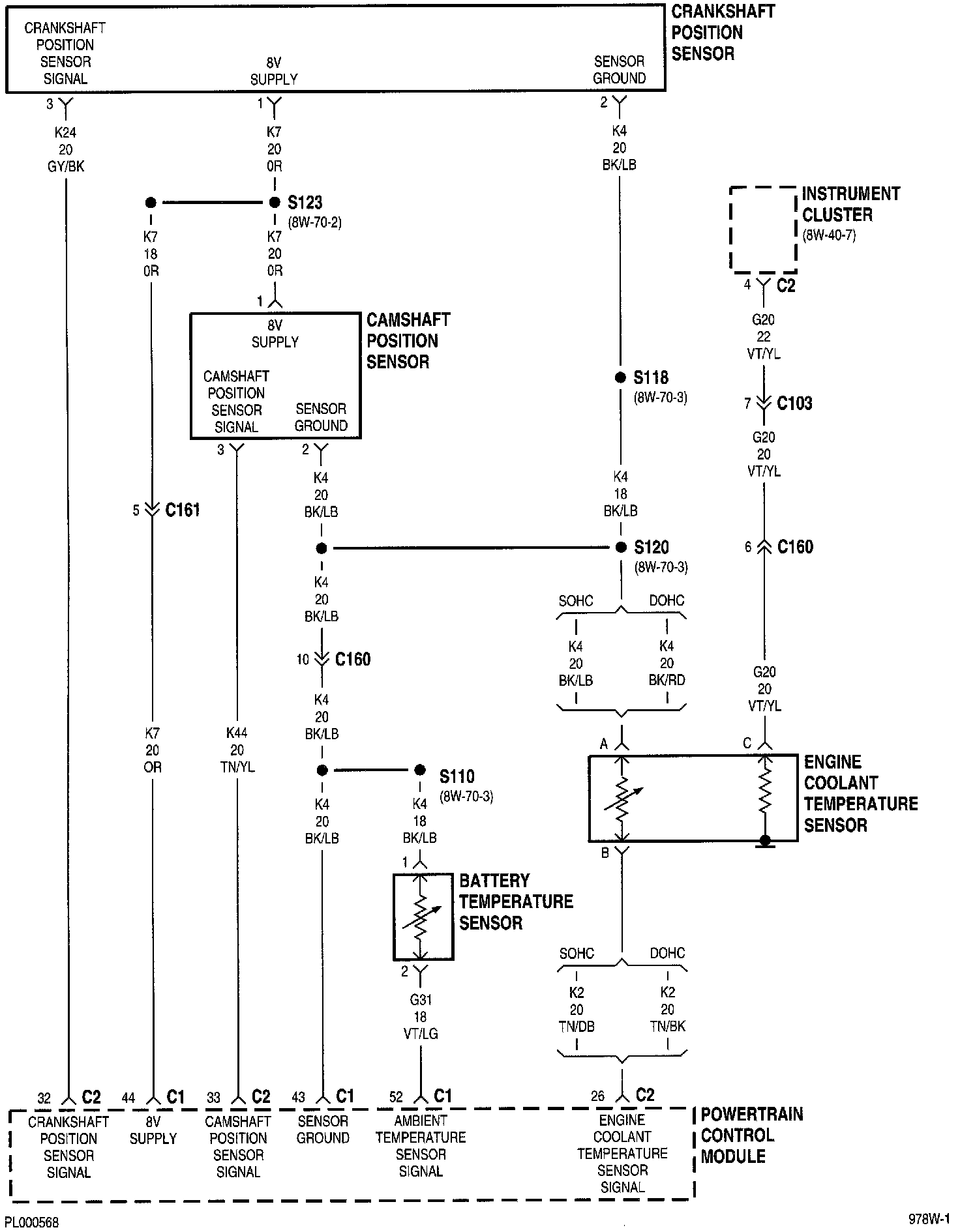

Fuel And Ignition Diagrams (Part 6 Of 11):






Battery Temperature Sensor
Camshaft Position Sensor
Crankshaft Position Sensor
Engine Coolant Temperature Sensor
Instrument Cluster
Powertrain Control Module
S110
S118
S120
S123

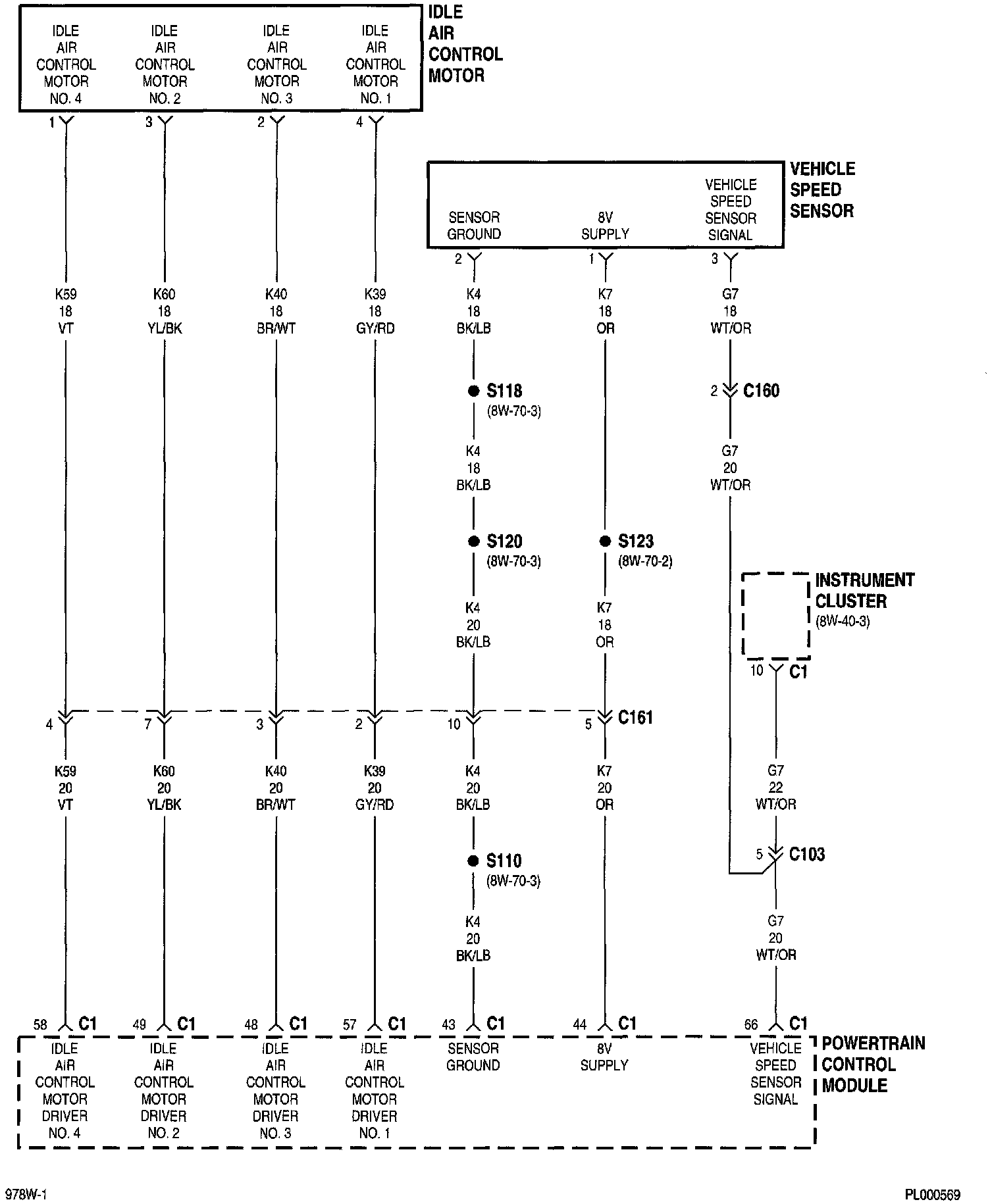

Fuel And Ignition Diagrams (Part 7 Of 11):






Idle Air Control Motor
Instrument Cluster
Powertrain Control Module
S110
S118
S120
S123
Vehicle Speed Sensor

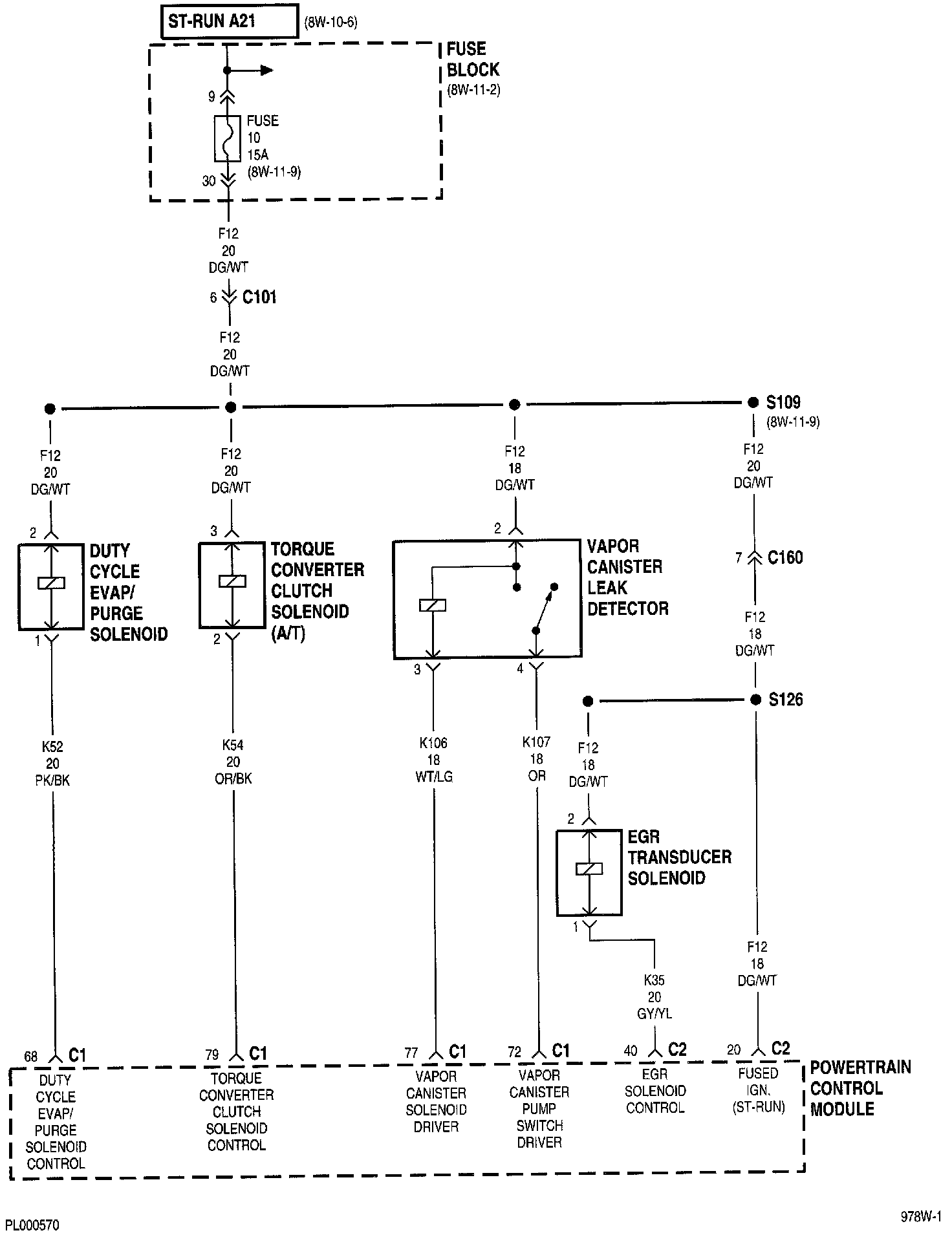

Fuel And Ignition Diagrams (Part 8 Of 11):






Duty Cycle EVAP/Purge Solenoid
[1][2]EGR Transducer Solenoid
Fuse 10 (FB)
Fuse Block
Powertrain Control Module
S109
S126
Torque Converter Clutch Solenoid
Vapor Canister Leak Detector

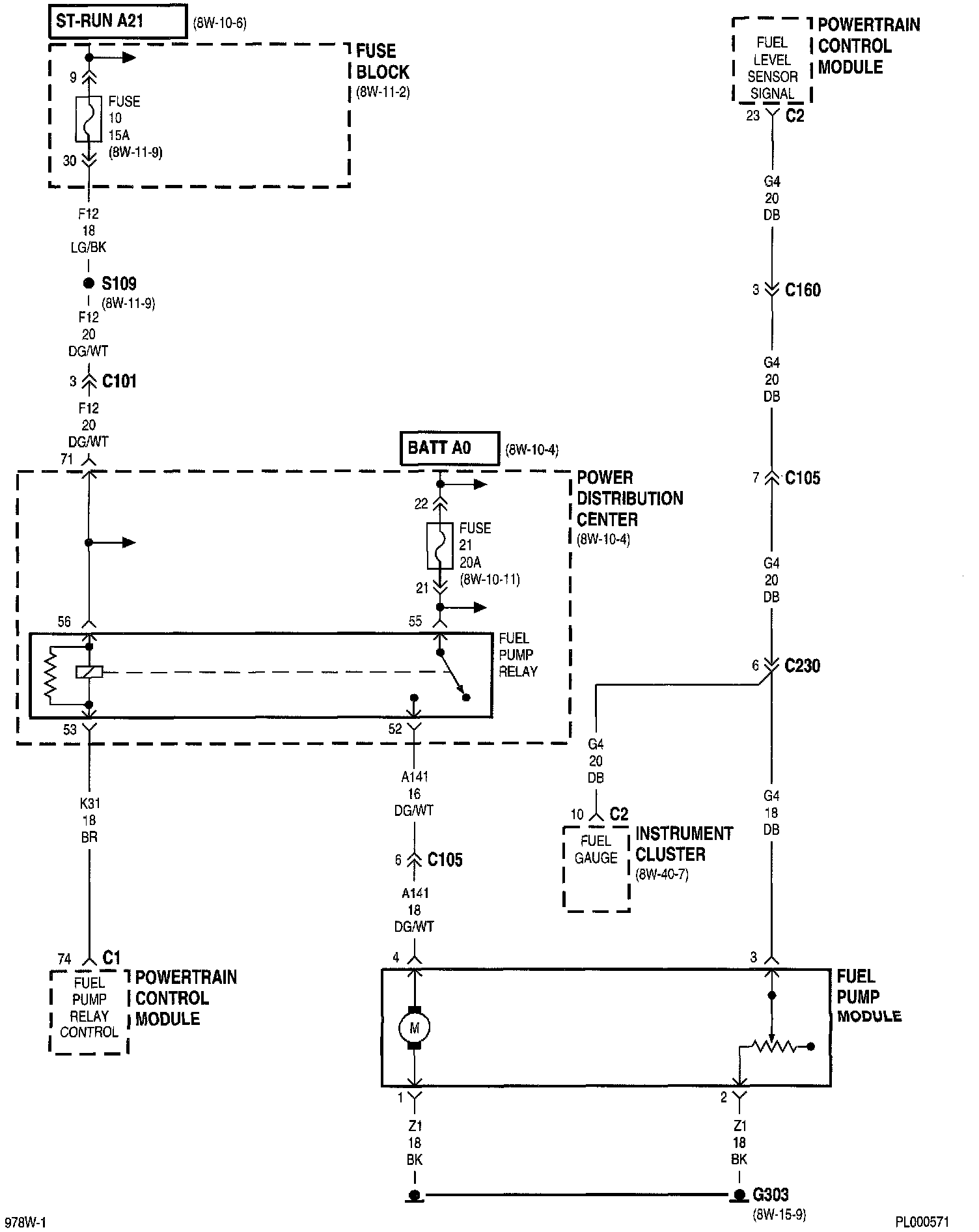

Fuel And Ignition Diagrams (Part 9 Of 11):






Fuel Pump Module
Fuel Pump Relay
Fuse 10 (FB)
Fuse 21 (PDC)
Fuse Block
G303
Instrument Cluster
Power Distribution Center
Powertrain Control Module
S109

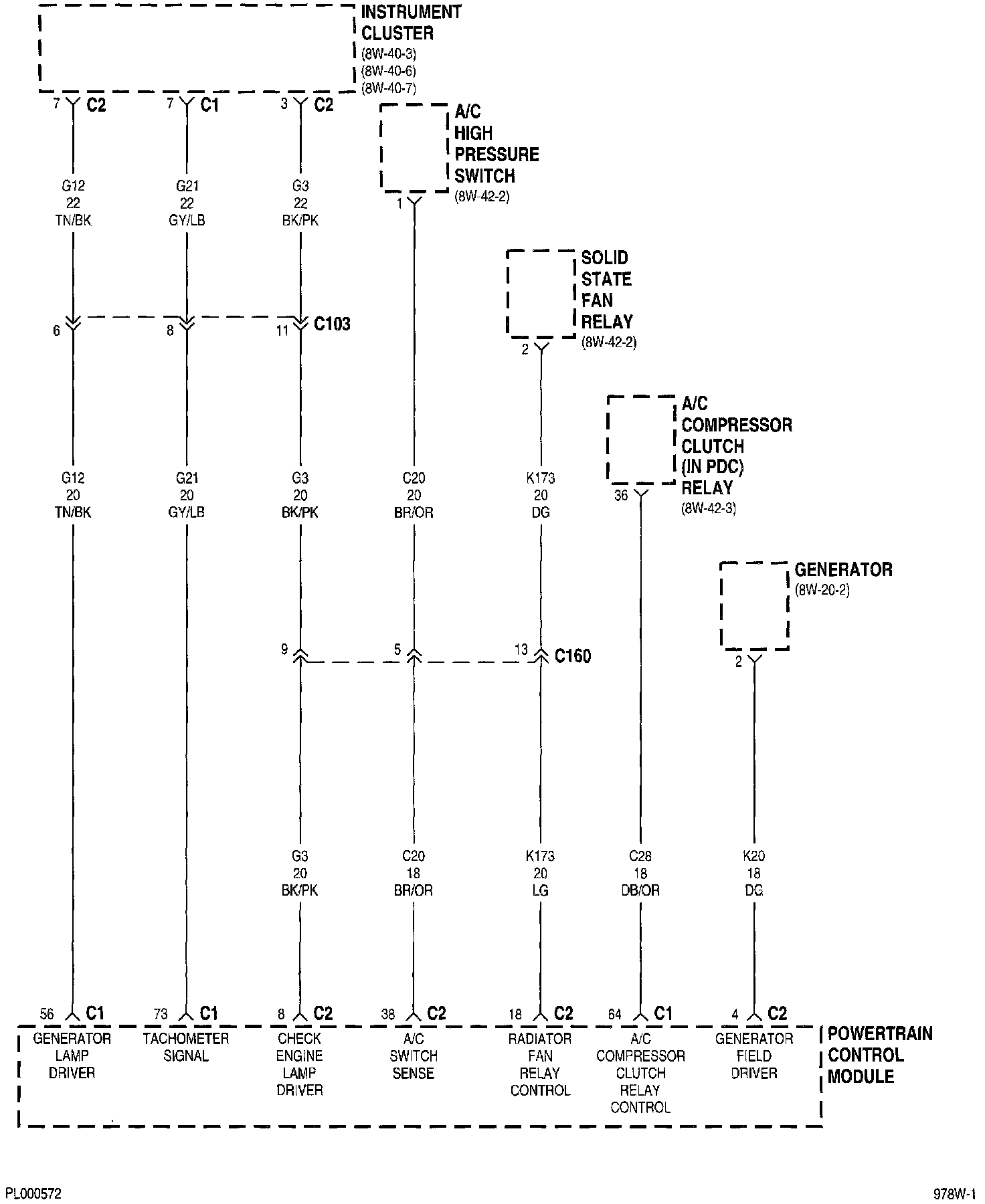

Fuel And Ignition Diagrams (Part 10 Of 11):






A/C Compressor Clutch Relay
A/C High Pressure Switch
Generator
Instrument Cluster
Solid State Fan Relay

Fuel And Ignition Diagrams (Part 11 Of 11):






Fuse 8 (FB)
Fuse Block
[1][2]Park/Neutral Position Switch
S106
S211
Stop Lamp Switch
Vehicle Speed Control Servo
Vehicle Speed Control Switch

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
