Speaker: Service and Repair

Instrument Panel Speaker
REMOVAL

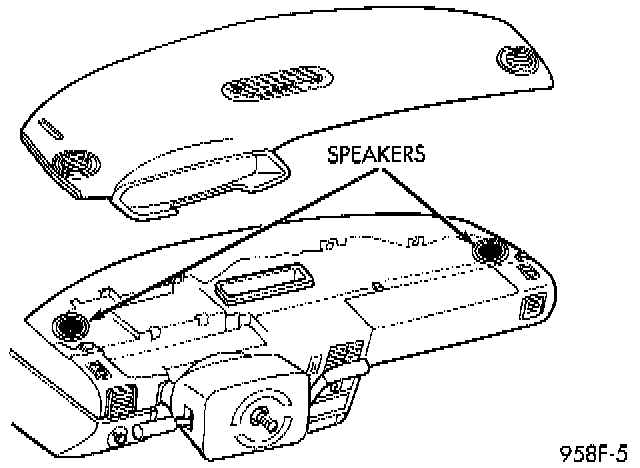

Instrument Panel Speakers:

1. Remove instrument panel top cover and cluster bezel.
2. Remove speaker retaining screws.
3. Remove speaker and disconnect wire connector.

INSTALLATION
- For installation reverse the above procedures.

Front Door Speaker
REMOVAL
1. Remove door trim panel.

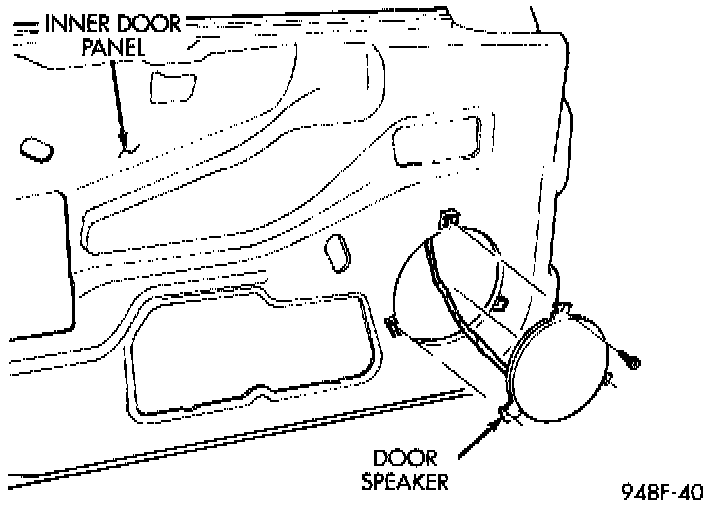

Front Door Speaker:

2. Remove three speaker retaining screws.
3. Remove speaker assembly and disconnect wire connector.


INSTALLATION
- For installation reverse the above procedures.

Rear Shelf Speaker
REMOVAL
1. Remove rear seat and seat back. Remove seat cushion, seat back and seat belt anchor bolts.
2. Pry out the seat belt trim bezel along the rearward edge.
3. Partially remove the shelf trim panel slipping it down to the seat back position.

Rear Shelf Speakers:

4. Remove four speaker retaining screws.
5. Remove speaker and disconnect wire connector.

INSTALLATION
- For installation reverse the above procedures. Position speakers so that the wire connectors are pointing to the drivers side of car. Tighten the seat belt anchor bolts to the proper torque.
