Clutch Pedal Assembly: Service and Repair

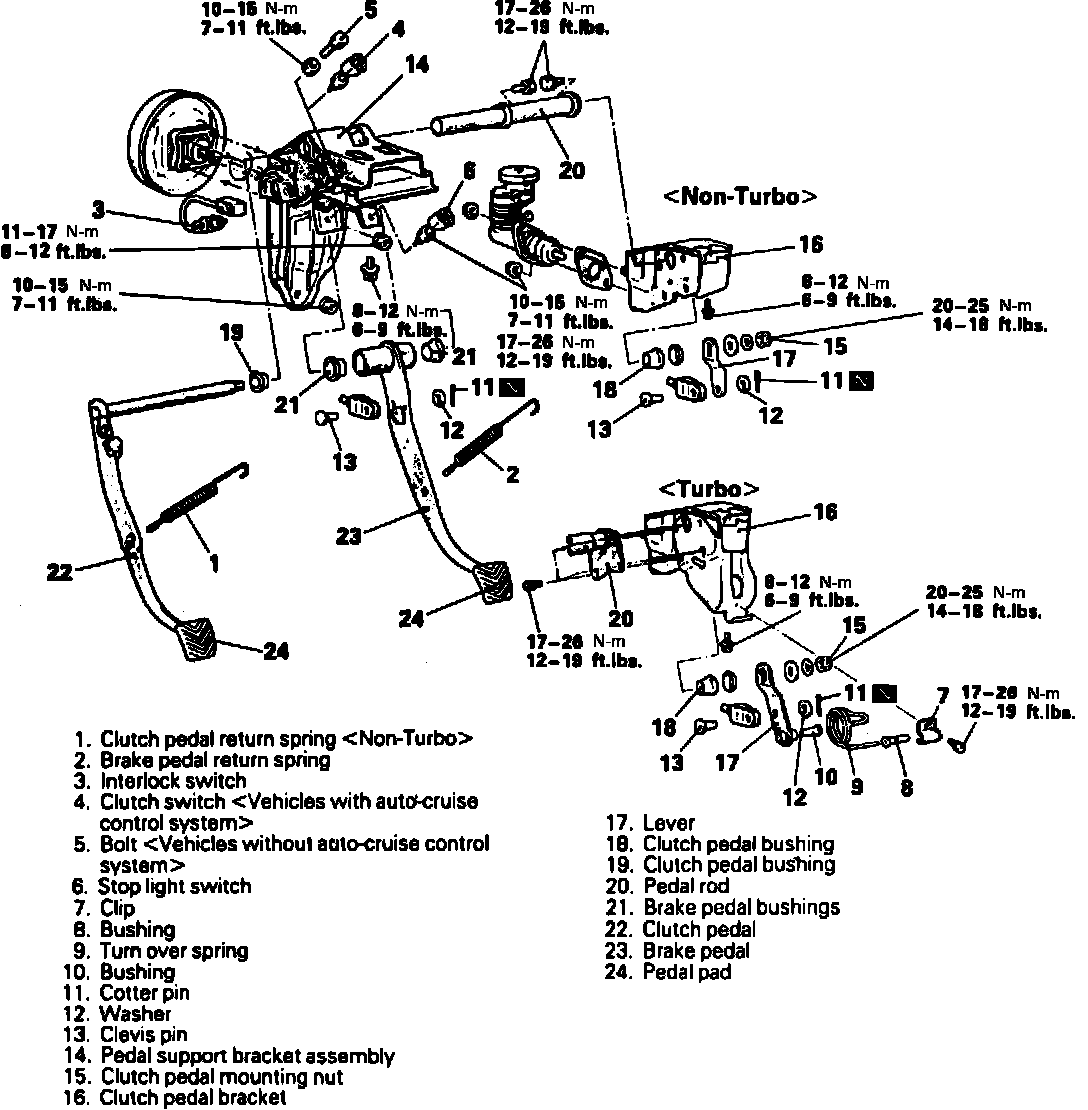

Fig. 6 Removing Clutch Pedal:

Remove clutch pedal in numbered sequence, noting the following:
1. Remove lap cooler duct, shower duct, and knee protector.
2. Remove steering column assembly, refer to Steering and Suspension/Steering/Steering Column/Service and Repair.
3. Remove relay box.
4. Apply lubricant to the clutch pedal bushings, clevis pin and washer and, on turbo models, bushing No. 8.
5. Reverse procedure to install.
