Home >> Plymouth >> 1994 >> Laser AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Lighting and Horns >> Center Mounted Brake Lamp >> With Rear Air Spoiler

With Rear Air Spoiler

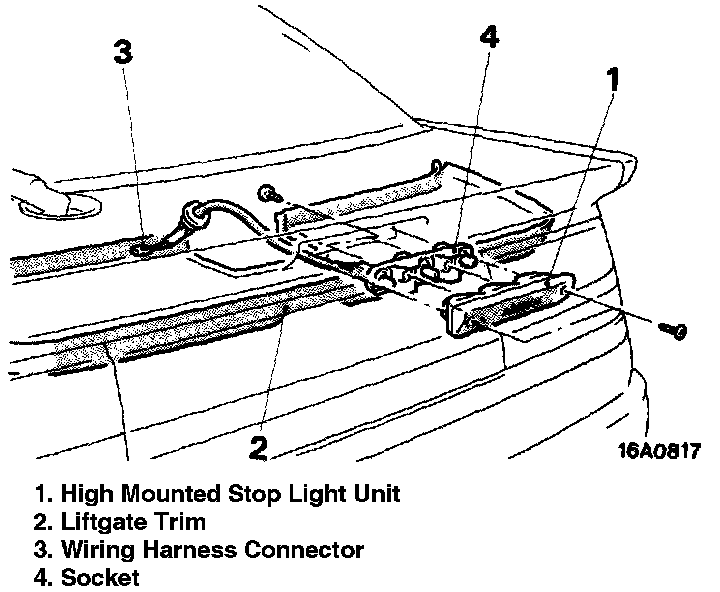

High Mounted Stop Light Removal And Installation:
