Oscilloscope Patterns and Waveforms

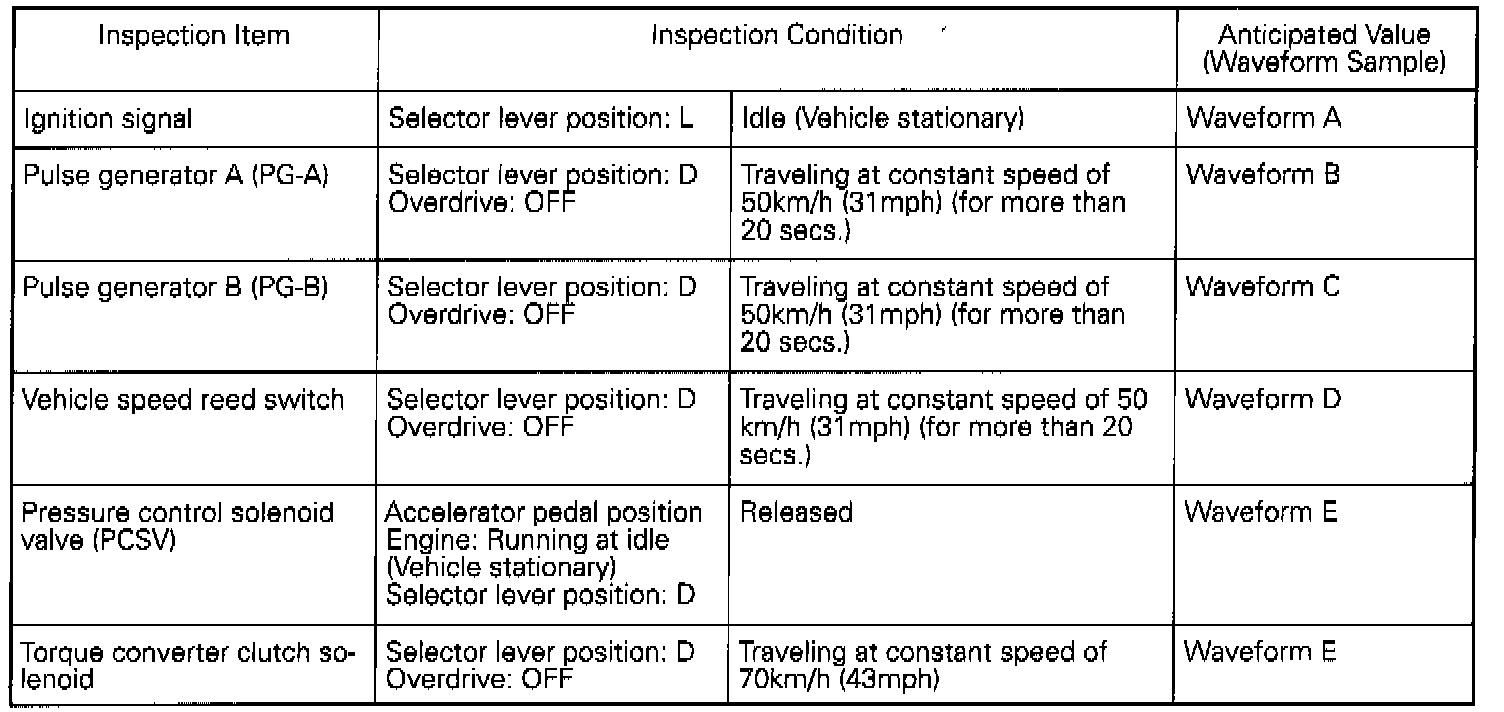

Inspection Items, Conditions And Expected Values:

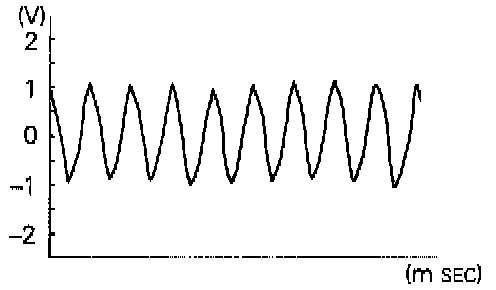

Waveform A:

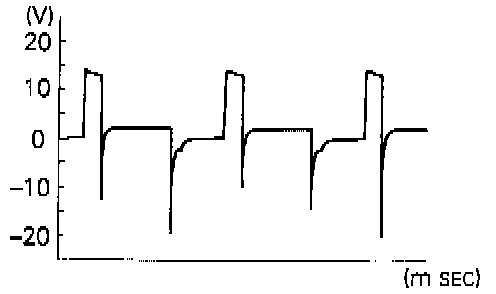

Waveform B:

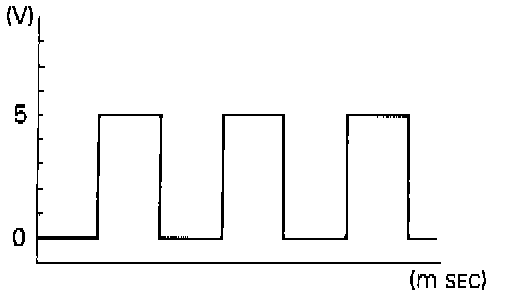

Waveform C:

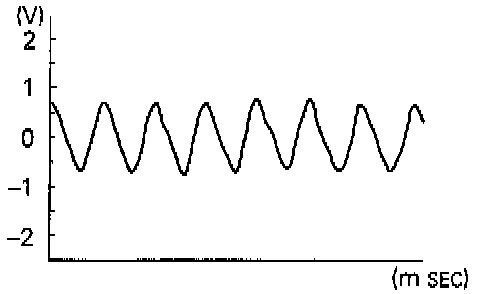

Waveform D:

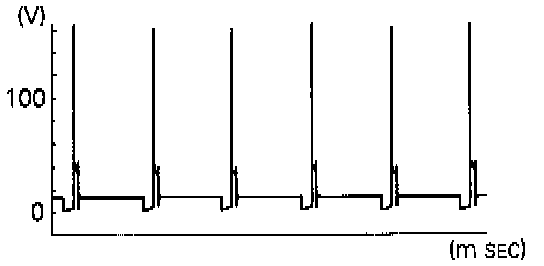

Waveform E:
