Plymouth
>>
1994
>>
Colt L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Exploded Views
Exploded Views

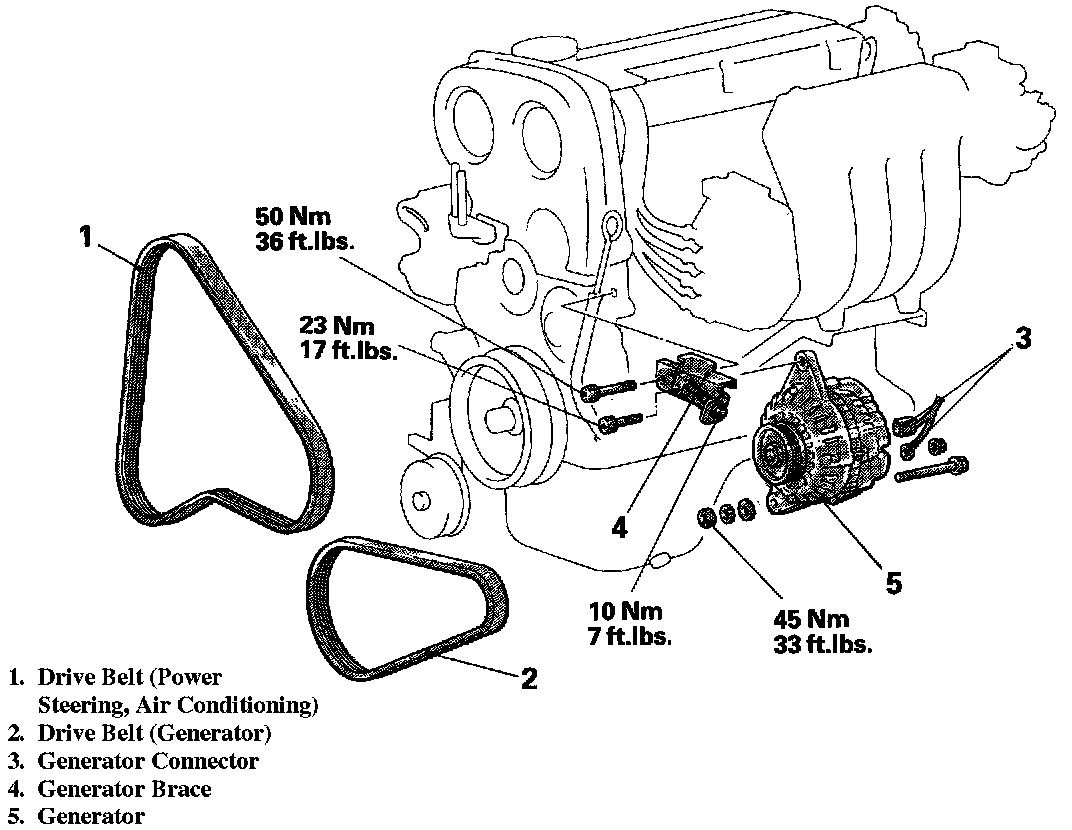

Generator Removal And Installation:
