Scan Tool Testing and Procedures

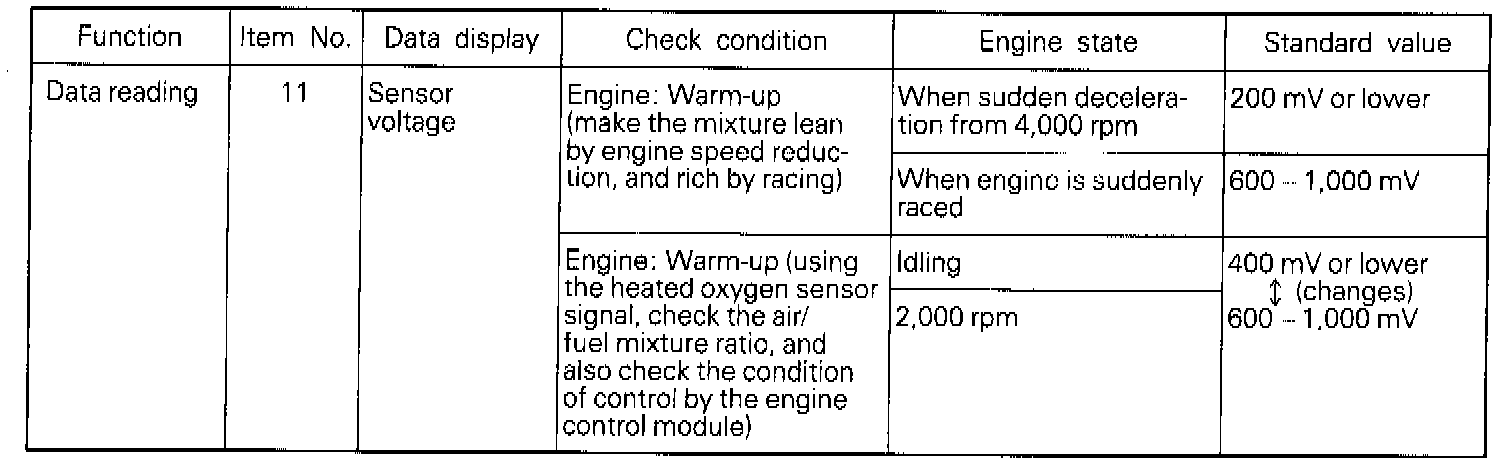

Heated Oxygen Sensor (front)

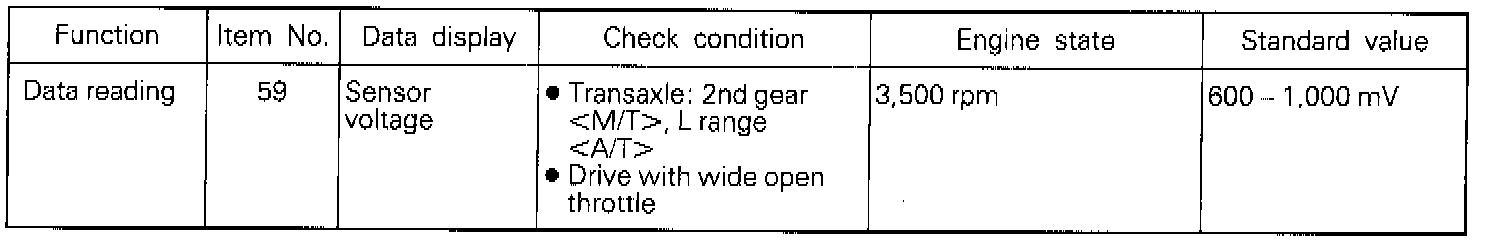

Heated Oxygen Sensor (rear)






Heated Oxygen Sensor Heater (front, rear)
