Cruise Control: Service and Repair

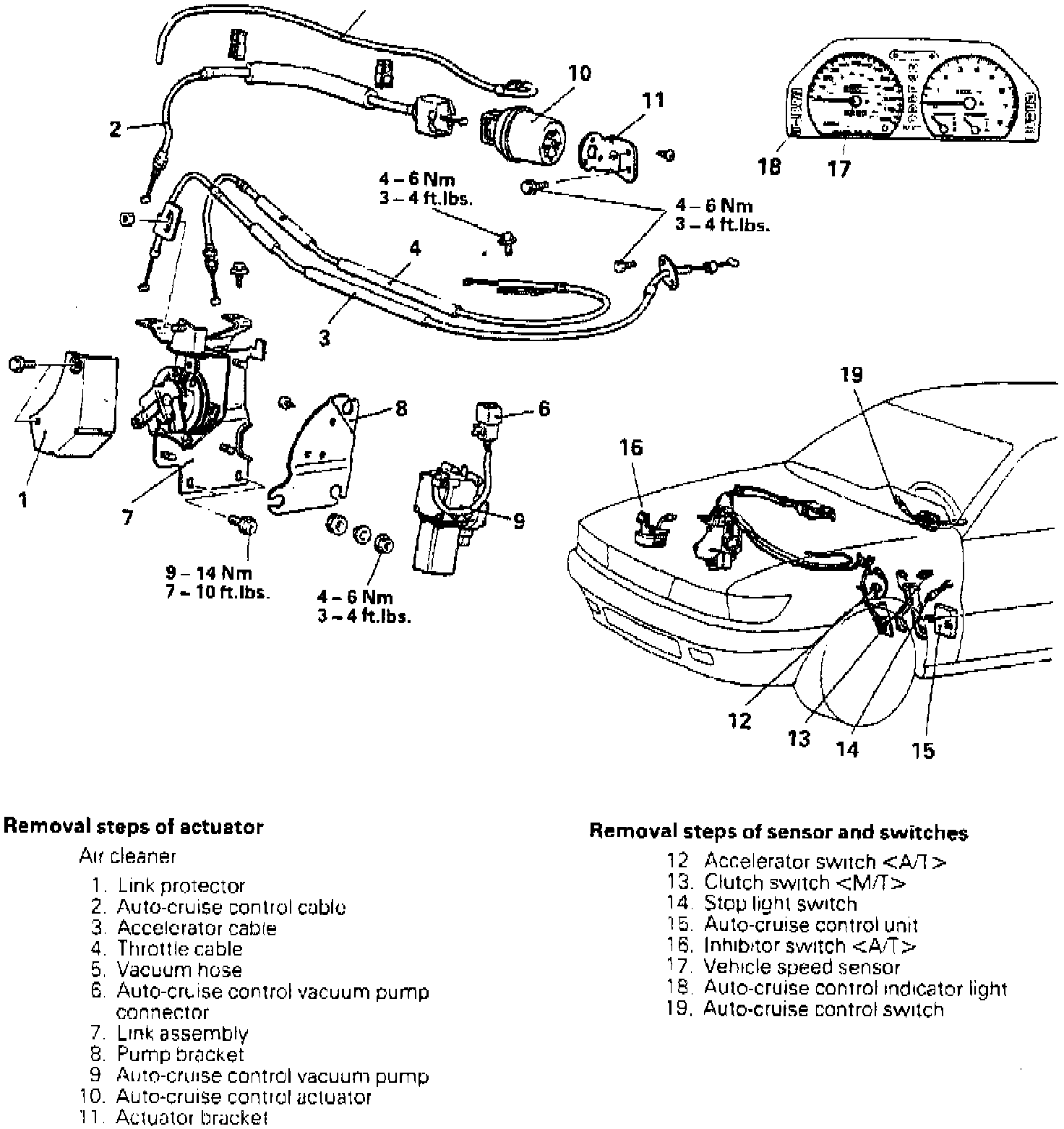

Fig. 56 Component Location:

Remove components in order shown when replacing actuator and speed control components. Reverse procedure to install.
