Motor Test

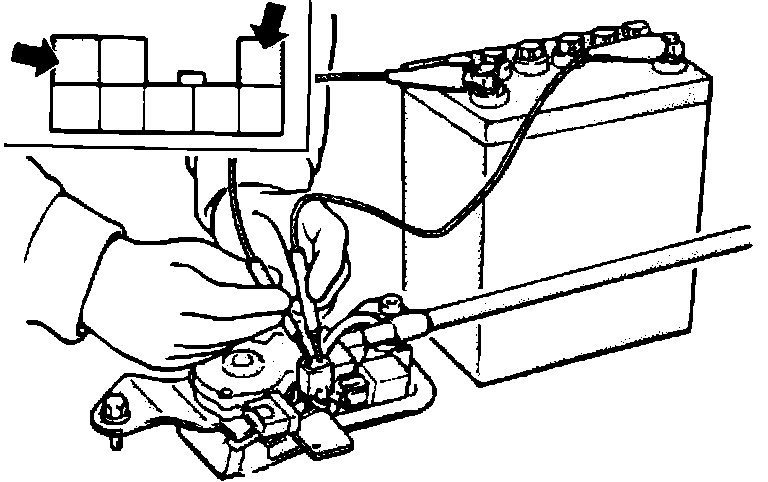

Fig. 4 Checking Seat Belt Motor:

1. Disconnect the automatic seat belt motor relay connector.
2. Connect the terminals of the automatic seat belt wiring harness connector to the battery as shown. Ensure motor operates smoothly.
3. Reverse the polarity and ensure motor operates smoothly in reverse position.
