Locations
>>
Fuse and Fusible Link Locations
>>
Vehicle Fusible Link and Fuse Locations
Vehicle Fusible Link and Fuse Locations

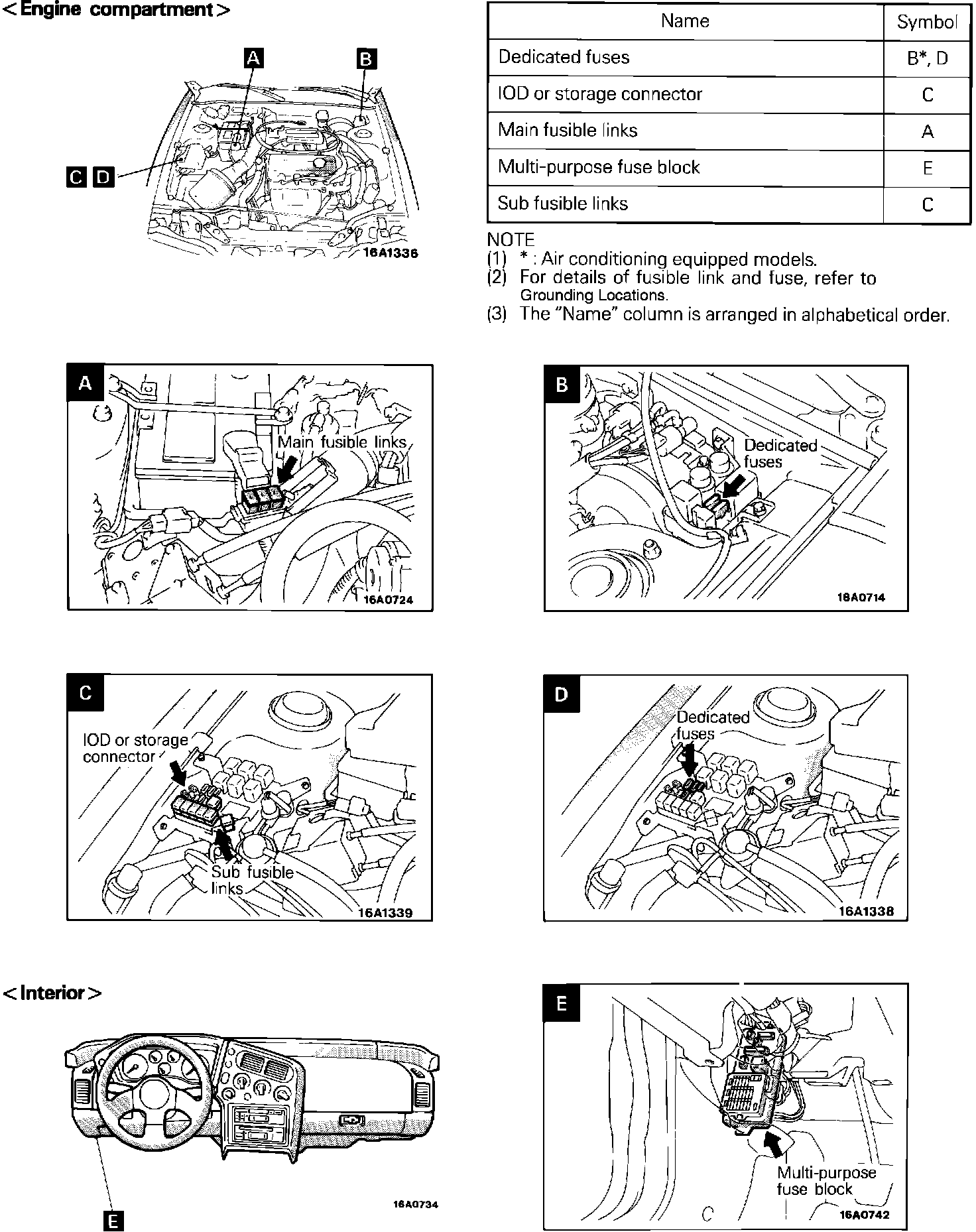

Fusable Link Fuse And IOD Connector Location:
