Laser AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Sensors and Switches - Lighting and Horns
>>
Brake Light Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

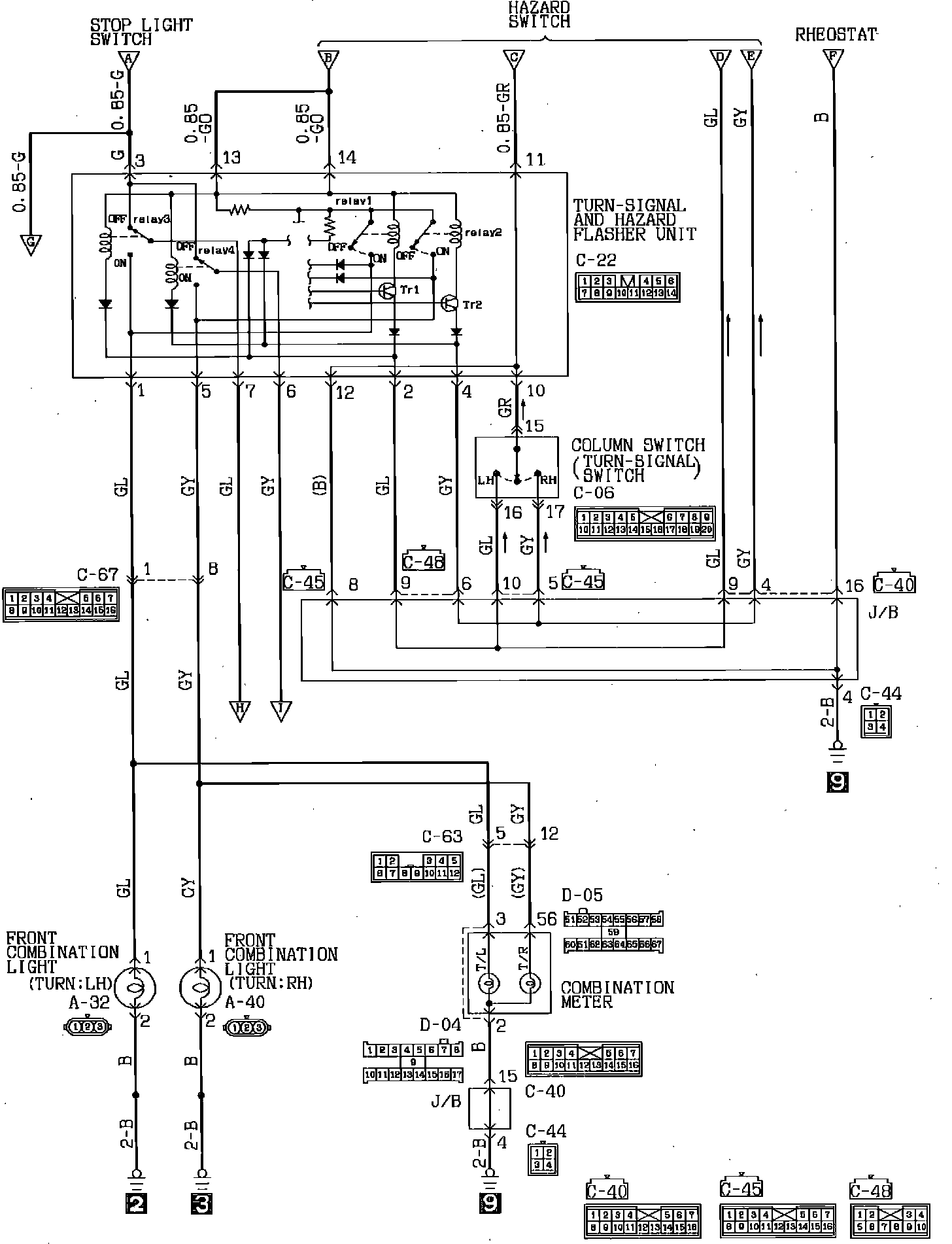

Turn Signal, Hazard, And Stop Lamps:
Turn Signal, Hazard, And Stop Lamps:
Turn Signal, Hazard, And Stop Lamps:
