Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - All Modes

Wipers Inoperative - All Modes

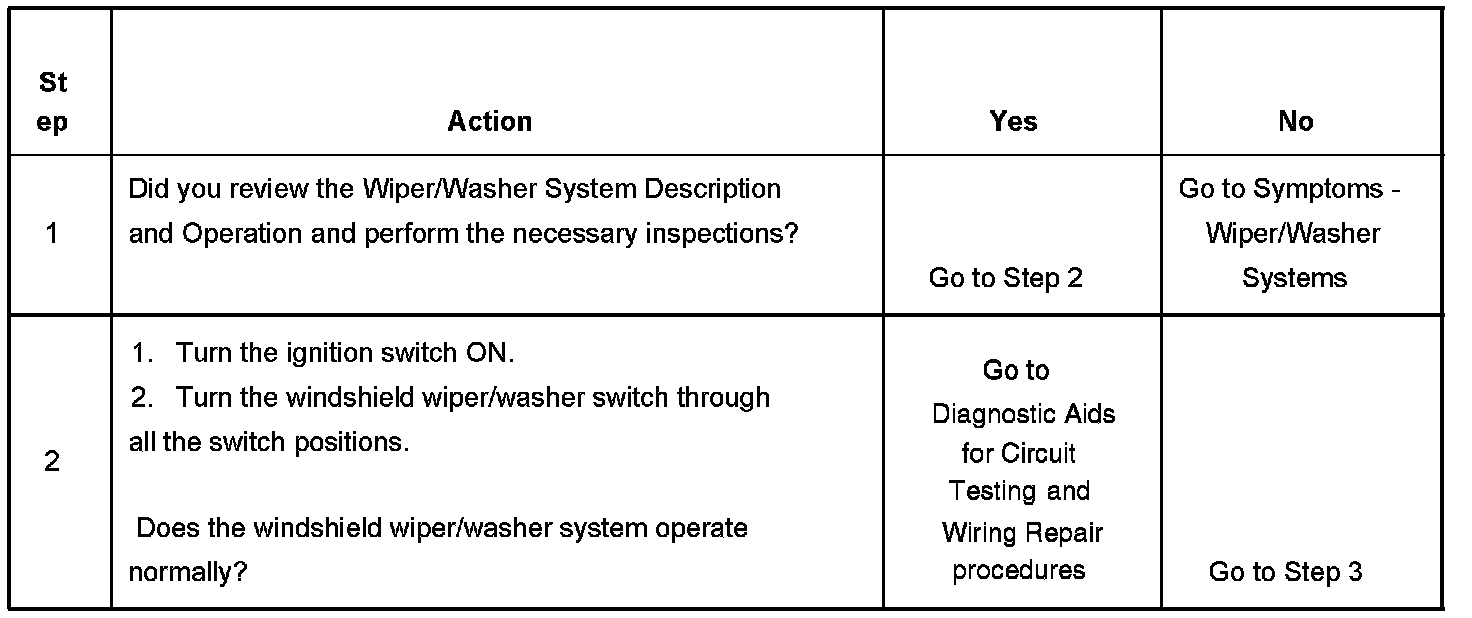

Steps 1-2:

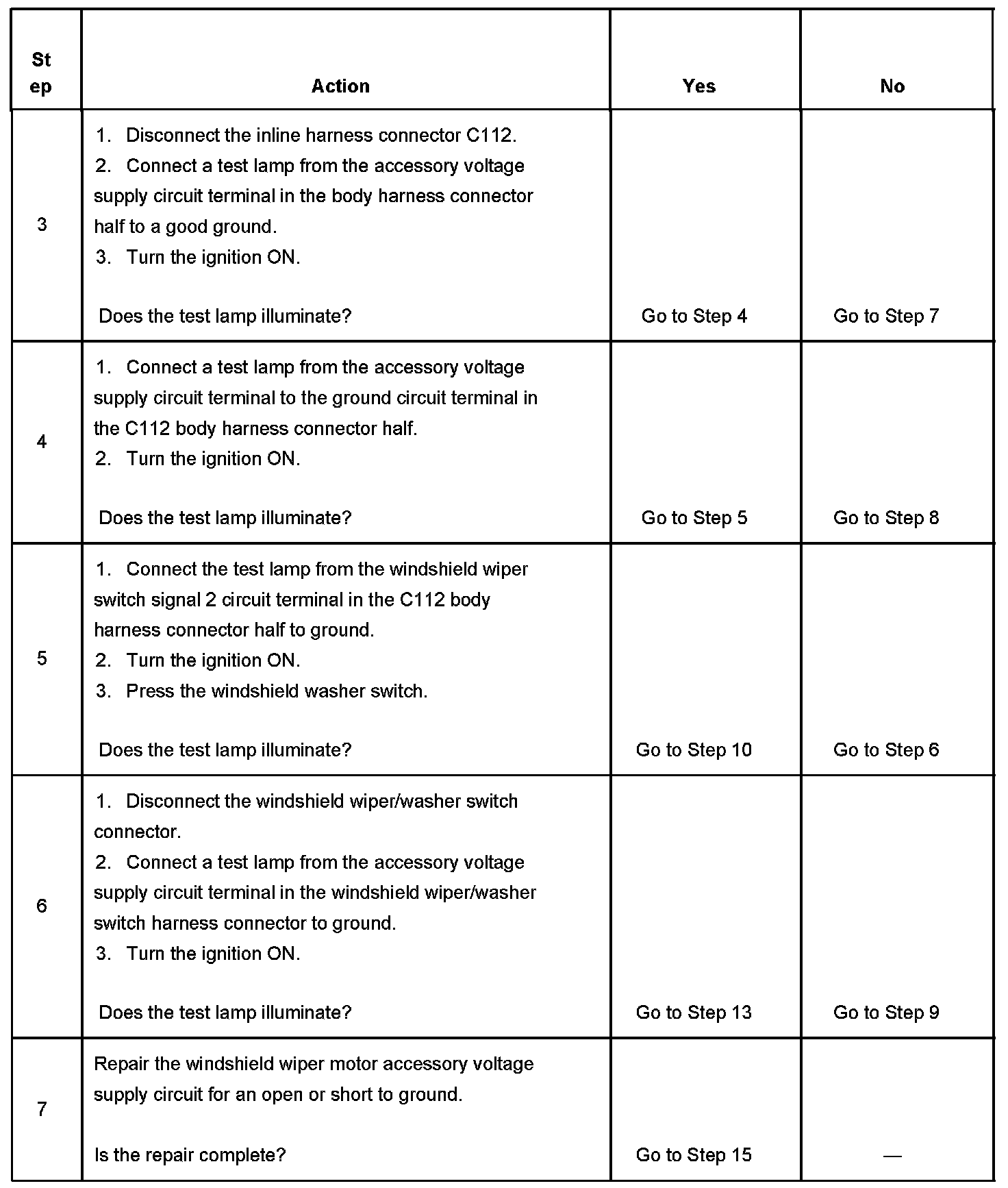

Steps 3-7:

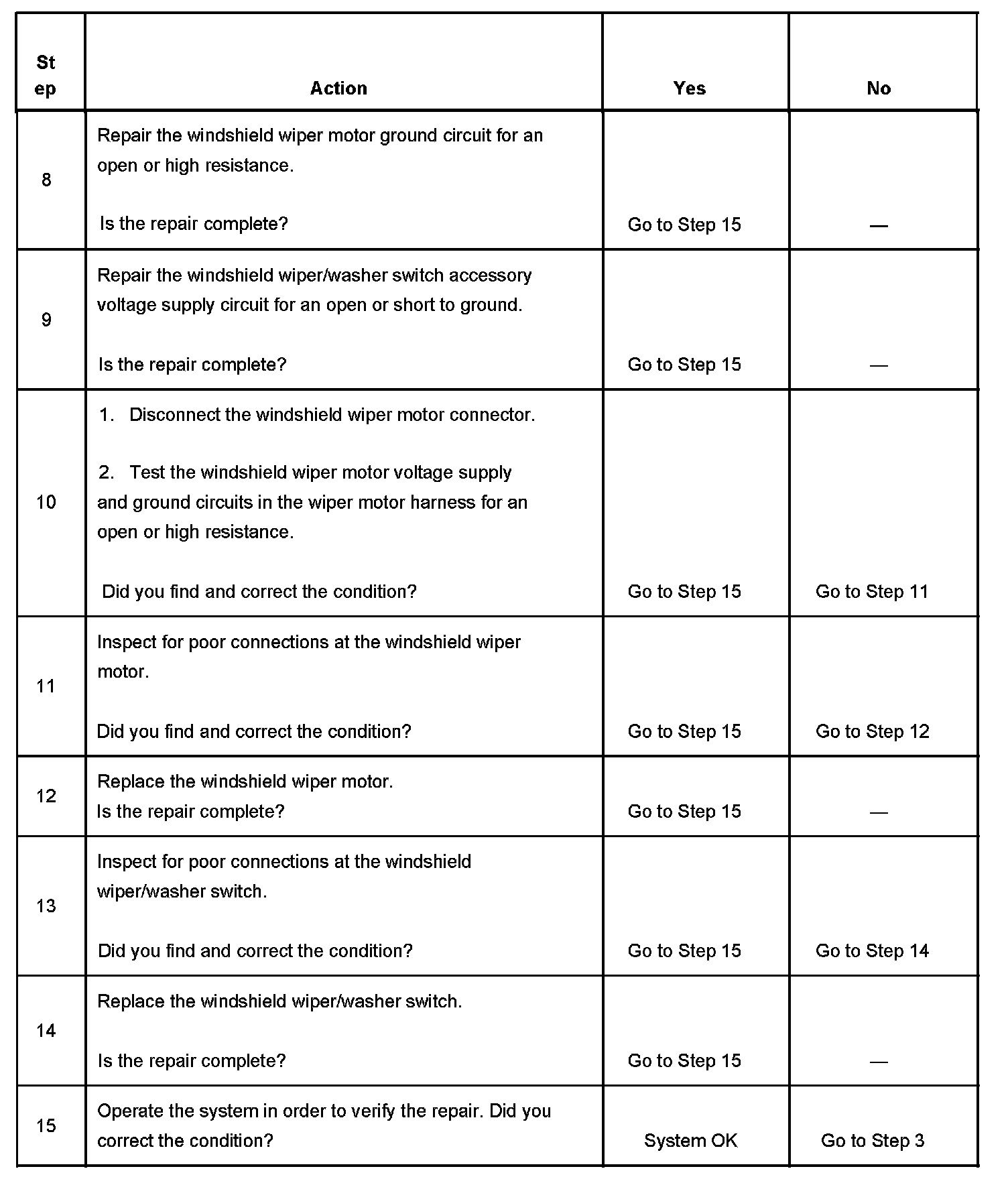

Steps 8-15:
