Rear Door Window Motor: Service and Repair

Window Regulator Motor Replacement - Rear Door

Removal Procedure

1. Close the window.
2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door Service and Repair
3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Service and Repair) .




4. Remove the window regulator. Refer to Window Regulator Replacement - Rear Door (Service and Repair) .

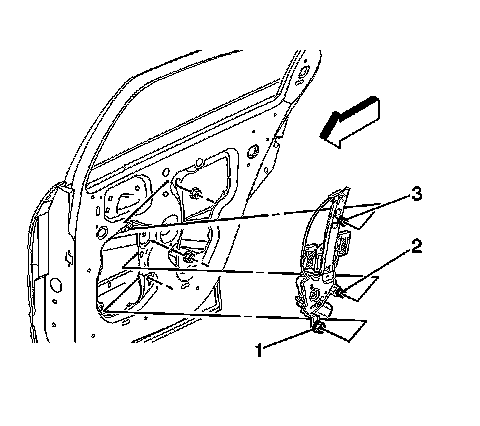

5. Remove the fasteners (1,2,3) securing the power window motor to the window regulator.
6. Remove the power window motor from the regulator.



Installation Procedure

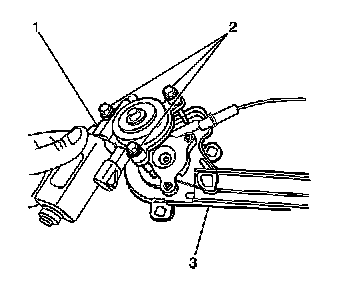

1. Install the power window motor (1) to the window regulator (3).

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the power window motor to regulator fasteners.

Tighten the power window motor fasteners to 4 N.m (62 lb in).





3. Install the window regulator. Refer to Window Regulator Replacement - Rear Door (Service and Repair) .
4. Check for proper operation of the window motor .
5. Reinstall the water deflector. Refer to Water Deflector Replacement - Rear Door (Service and Repair) .
6. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door Service and Repair
