Front Door Window Motor: Service and Repair

Window Regulator Motor Replacement - Front Door

Removal Procedure





1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair.

Important: There is a binding effect on the power window motor drive when the window is in the fully closed or open position.


3. Partially open the window.

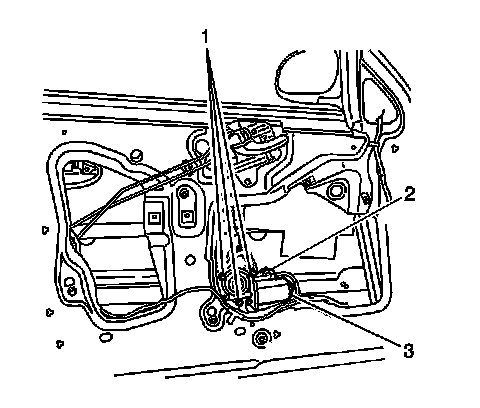

4. Disconnect the power window motor electrical connector (2).
5. Remove the fasteners (1) securing the power window motor to the window regulator.
6. Remove the power window motor (3).



Installation Procedure





1. Install the power window motor (3) to the window regulator.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the power window motor to regulator fasteners (1).

Tighten the power window motor fasteners to 4 N.m (62 lb in).

3. Connect the electrical connector (2).
4. Inspect for proper operation of the power window motor and window.
5. Install the water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair
6. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
