Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement
Removal Procedure
1. Remove the throttle body air inlet duct.

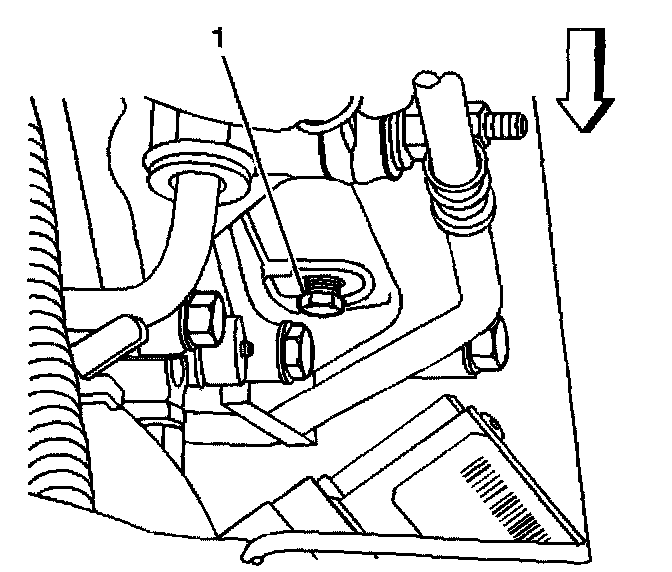

2. Remove the oil pressure test plug (1).

Installation Procedure

Notice: Refer to Fastener Notice in Cautions and Notices.

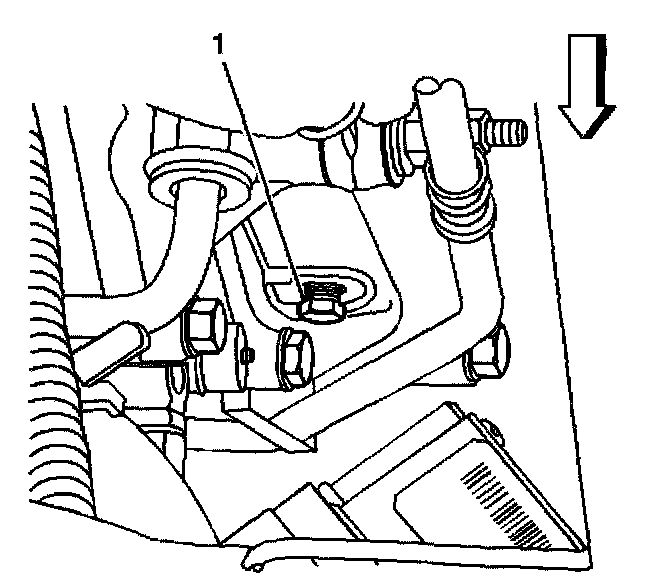

1. Install the oil pressure test plug (1).
^ Tighten the oil pressure test plug (1) to 22 Nm (16 ft. lbs.).
2. Install the throttle body air inlet duct.
