Torque Converter Cover: Service and Repair

Torque Converter Cover Replacement

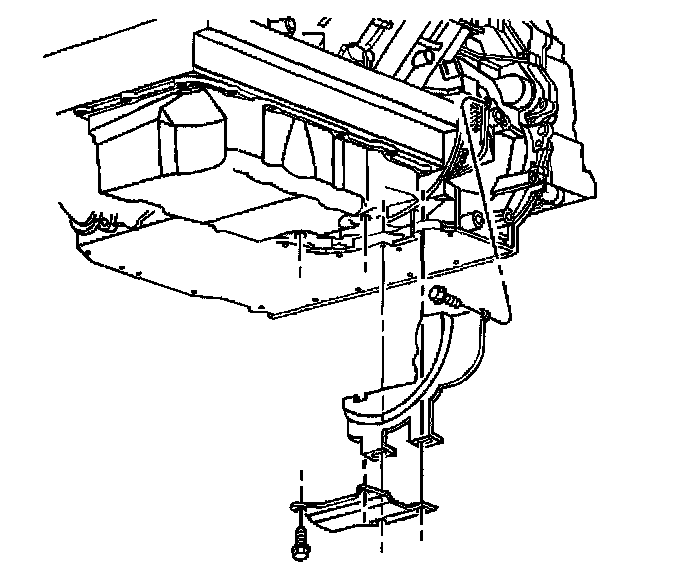

Removal Procedure
1. Raise the vehicle.





2. Remove the attaching bolts and the engine-to-transmission brace.
3. Remove the torque converter cover.

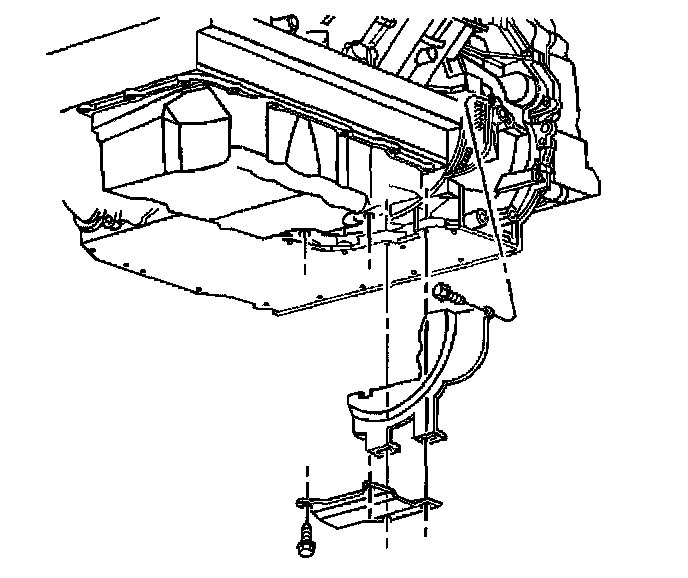

Installation Procedure

Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the torque converter cover.
^ Tighten the cover bolt to 12 Nm (106 inch lbs.).





2. Install the engine-to-transmission brace and attaching bolts.
^ Tighten the bolts to 47 Nm (35 ft. lbs.).
3. Lower the vehicle.
