Power Steering Pump Replacement

Power Steering Pump Replacement

Removal Procedure
1. Place a drain pan under the vehicle.

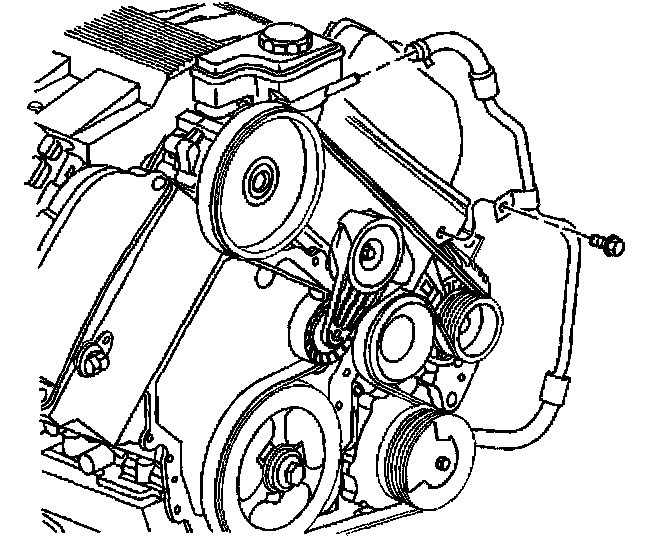

2. Remove the accessory drive belt.

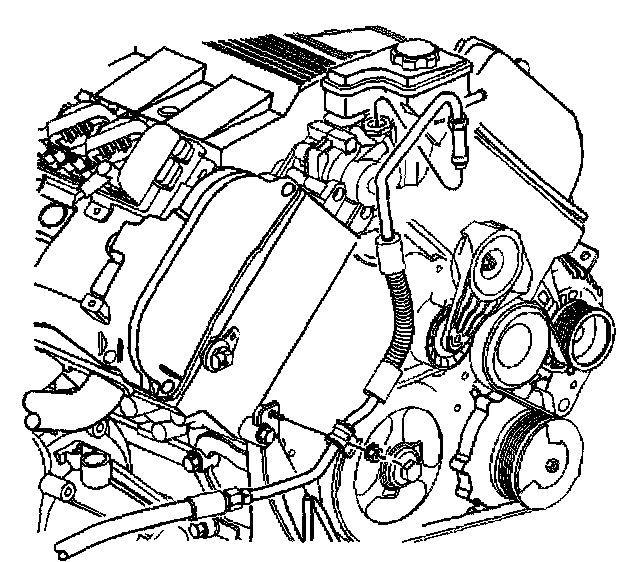

3. Remove the power steering pressure line from the power steering pump.





4. Remove the power steering return hose from the power steering pump.

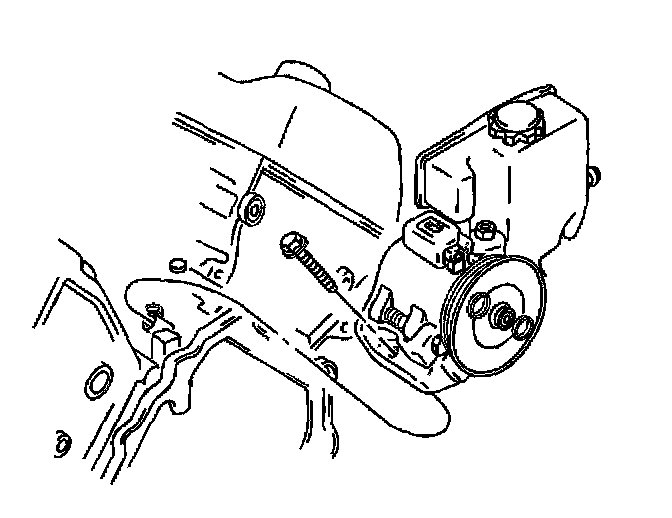

5. Remove the power steering pump bracket mounting bolt.
6. Remove the power steering pump assembly.
7. Remove the power steering pulley from the power steering pump.
8. Remove the power steering pump reservoir from the power steering pump.

Installation Procedure
1. Install the power steering pump reservoir to the power steering pump.
2. Install the power steering pulley to the power steering pump.
3. Install the power steering pump to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.





4. Install the power steering pump mounting bolt.
Tighten the power steering pump mounting bolts to 25 Nm (18 ft. lbs.).





5. Install the power steering return hose to the power steering pump.





6. Install the power steering pressure line to the power steering pump.
Tighten the hose to 30 Nm (22 ft. lbs.).
7. Install the power steering pump pulley to the power steering pump.
8. Install the accessory drive belt to the pump.
9. Bleed the power steering system.
10. Inspect the power steering system for leaks.
11. Remove the drain pan from under the vehicle.
