Power Steering Pump Disassemble

Power Steering Pump Disassemble

Disassembly Procedure

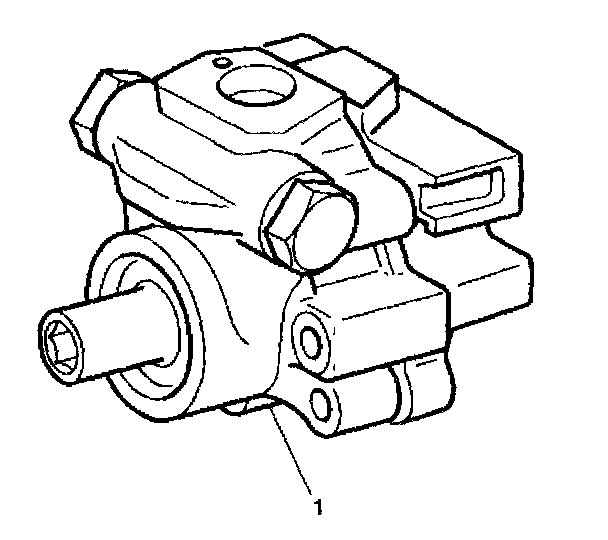

Important: Do not attempt to disassemble the hydraulic pump (1).

1. Inspect the hydraulic pump (1) for leaks.
2. If pump (1) needs replacement, remove the reservoir assembly.
