Scan Tool Data List

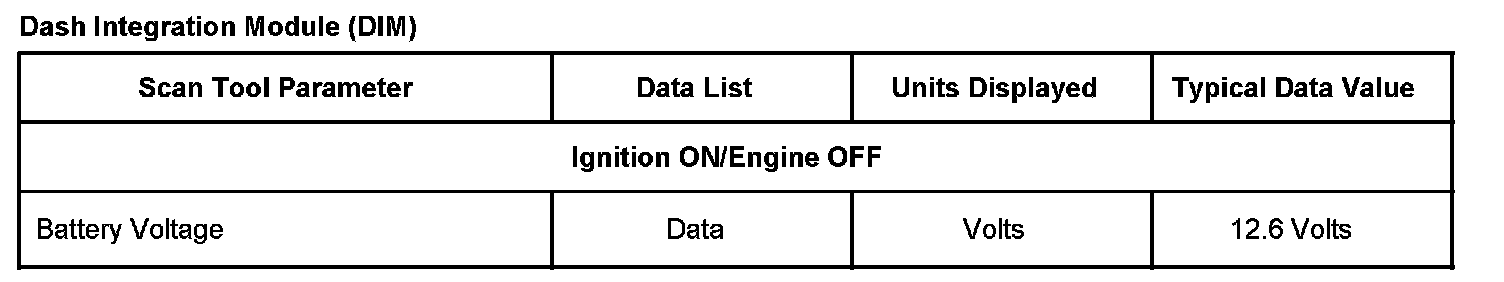

Dash Integration Module (DIM):

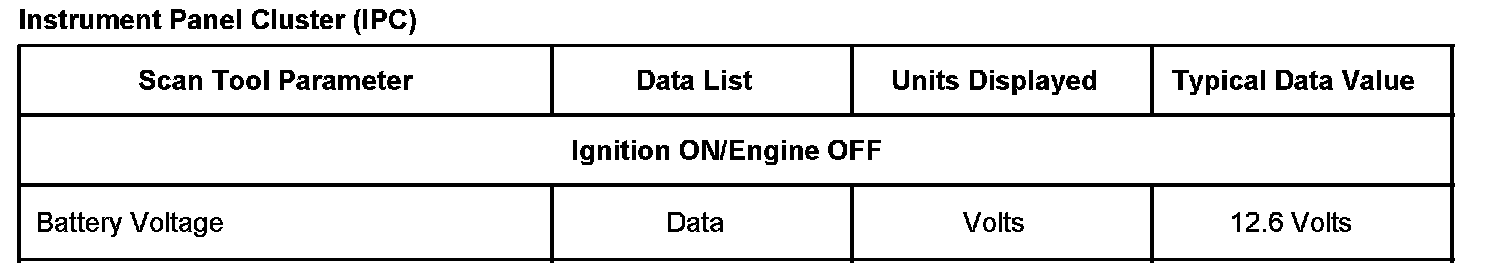

Instrument Panel Cluster (IPC):

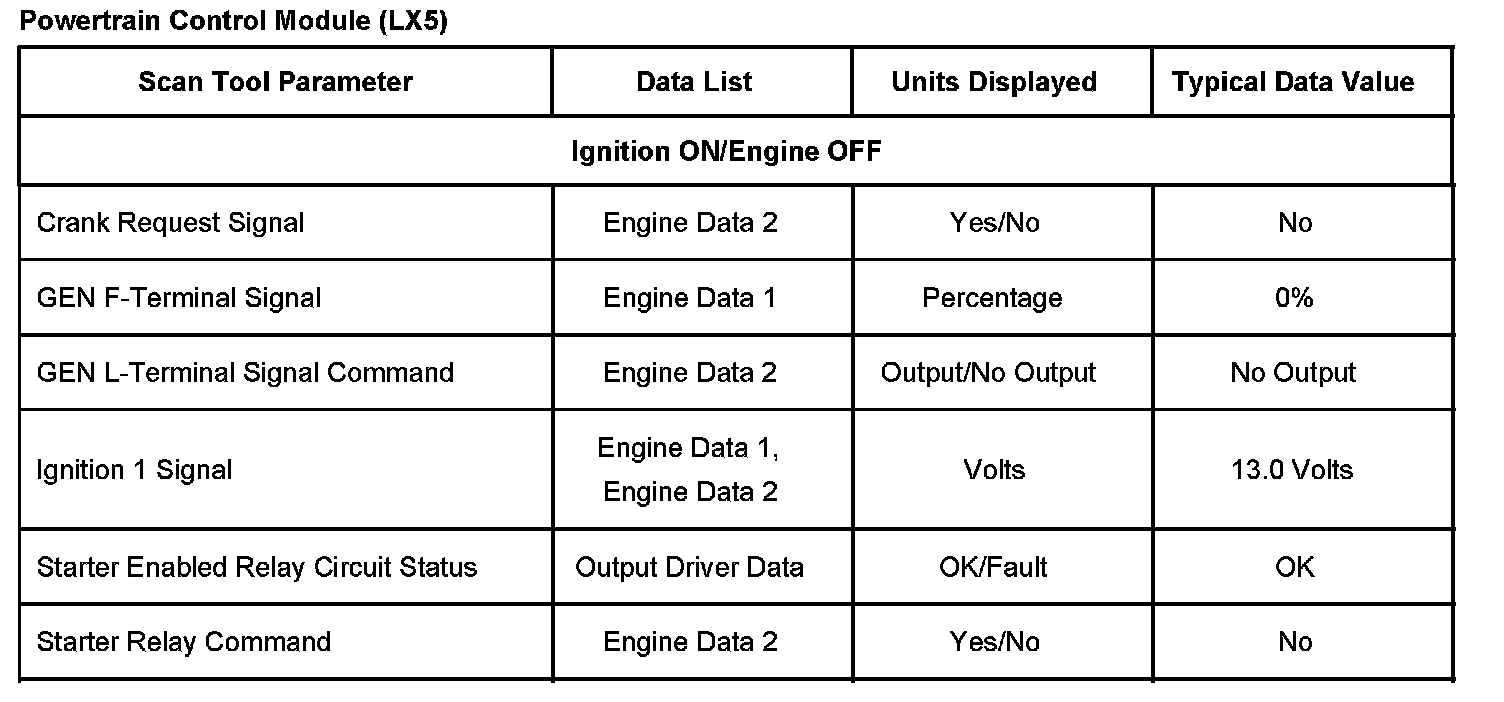

Powertrain Control Module (LX5):

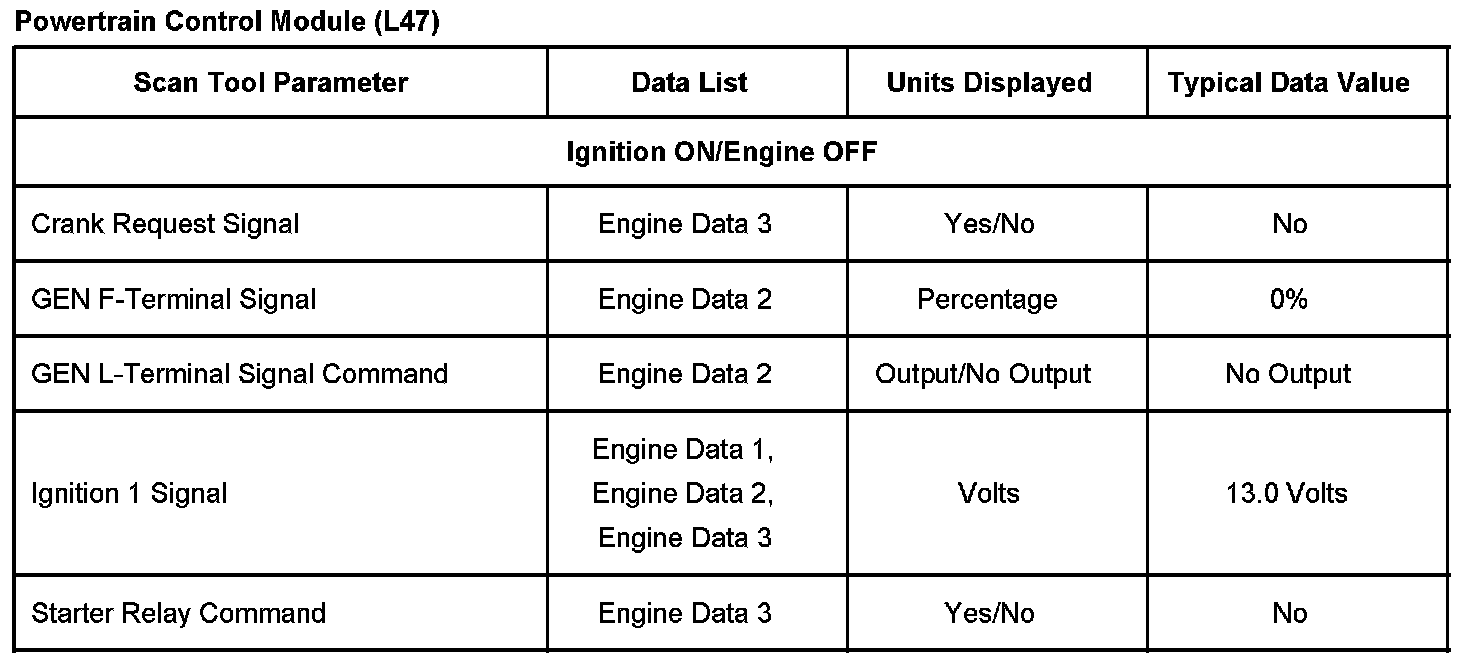

Powertrain Control Module (L47):

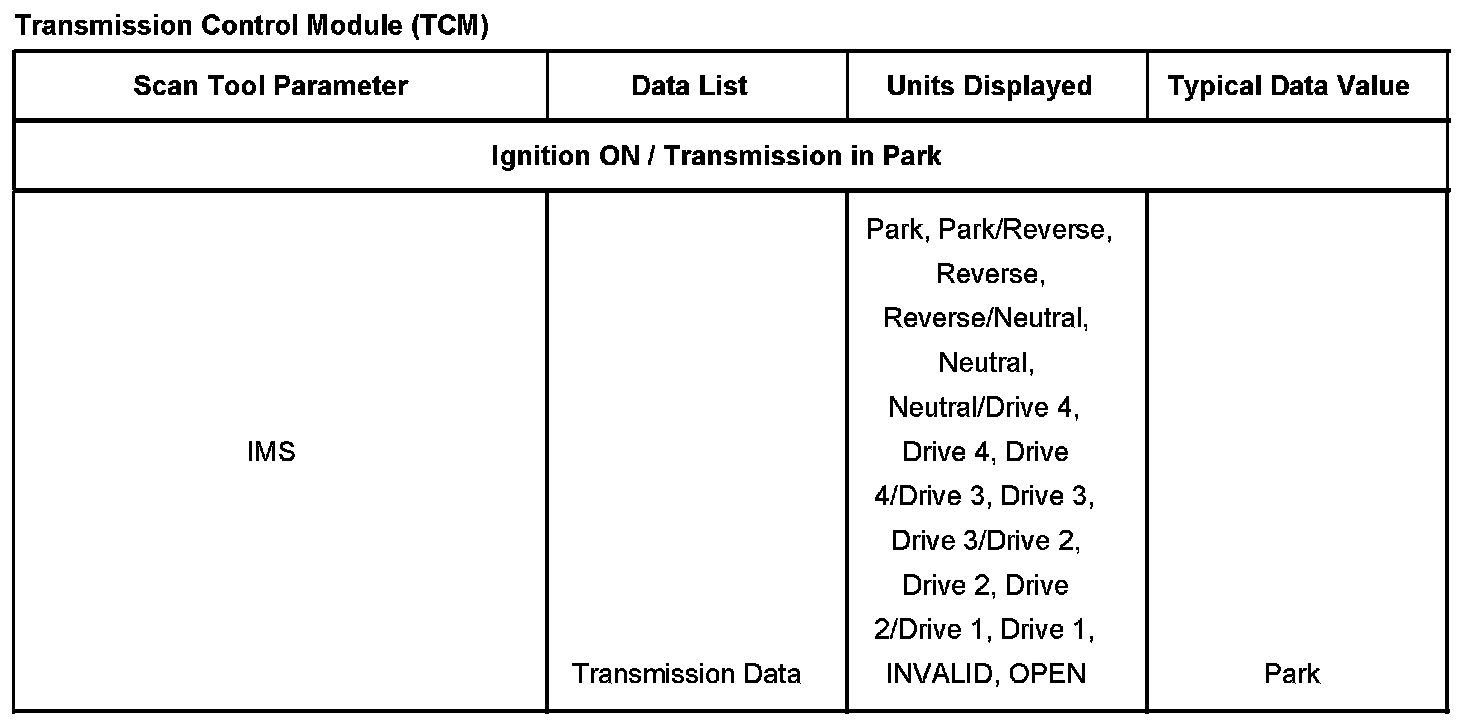

Transmission Control Module (TCM):
