Rear Electrical Center or Junction Block Replacement

REAR ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT

REMOVAL PROCEDURE
1. Remove the rear seat cushion.
2. Disconnect the negative battery cable.




3. Remove the rear fuse block cover.

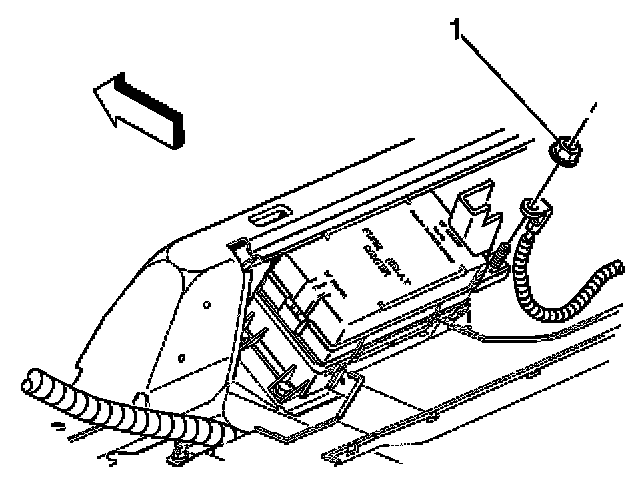

4. Remove the positive battery cable nut (1) and cable from the rear electrical center.
5. Release the 4 retaining clips.
6. Lift the electrical center up and turn over.
7. Remove the 3 connector fasteners and remove all the connectors from the fuse block.

INSTALLATION PROCEDURE
1. Install all the connectors to the rear fuse block and hand start the fasteners.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the fasteners to 6.6 N.m (58 lb in).




2. Install the rear electrical center into the base assembly ensuring all the clips engage.
3. Install the positive battery cable and nut (1).

Tighten
Tighten the nut to 15 N.m (11 lb ft).

4. Install the rear seat cushion.
5. Connect the negative battery cable.
