Relay Box
>>
Application and ID
Relay Box: Application and ID

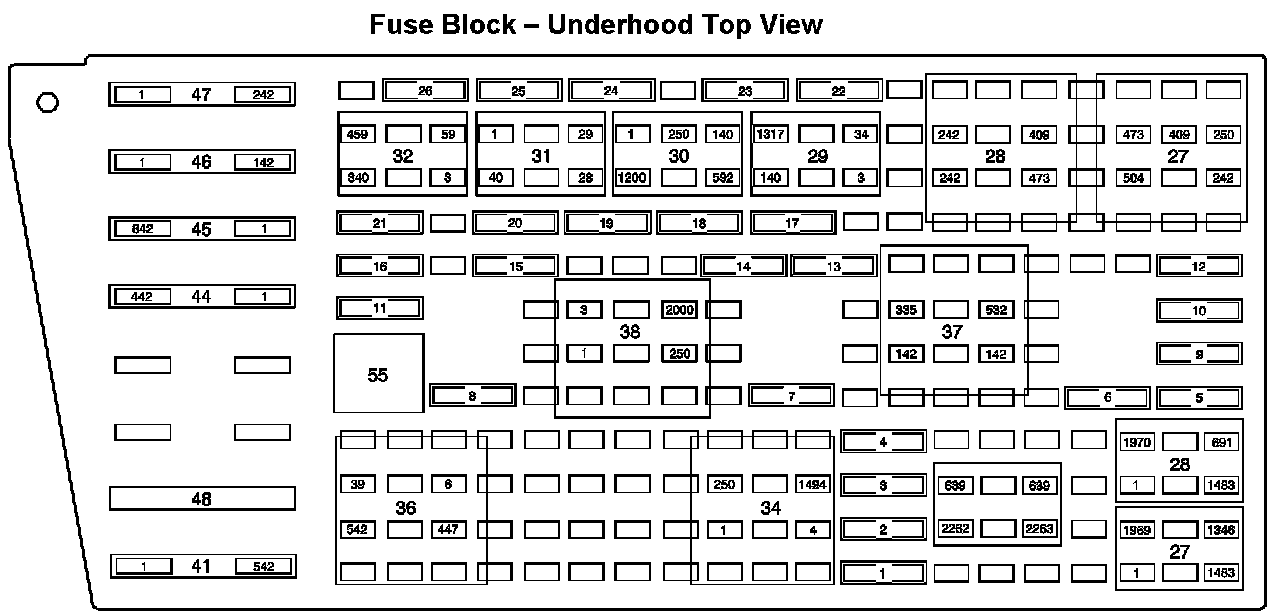

Location View:

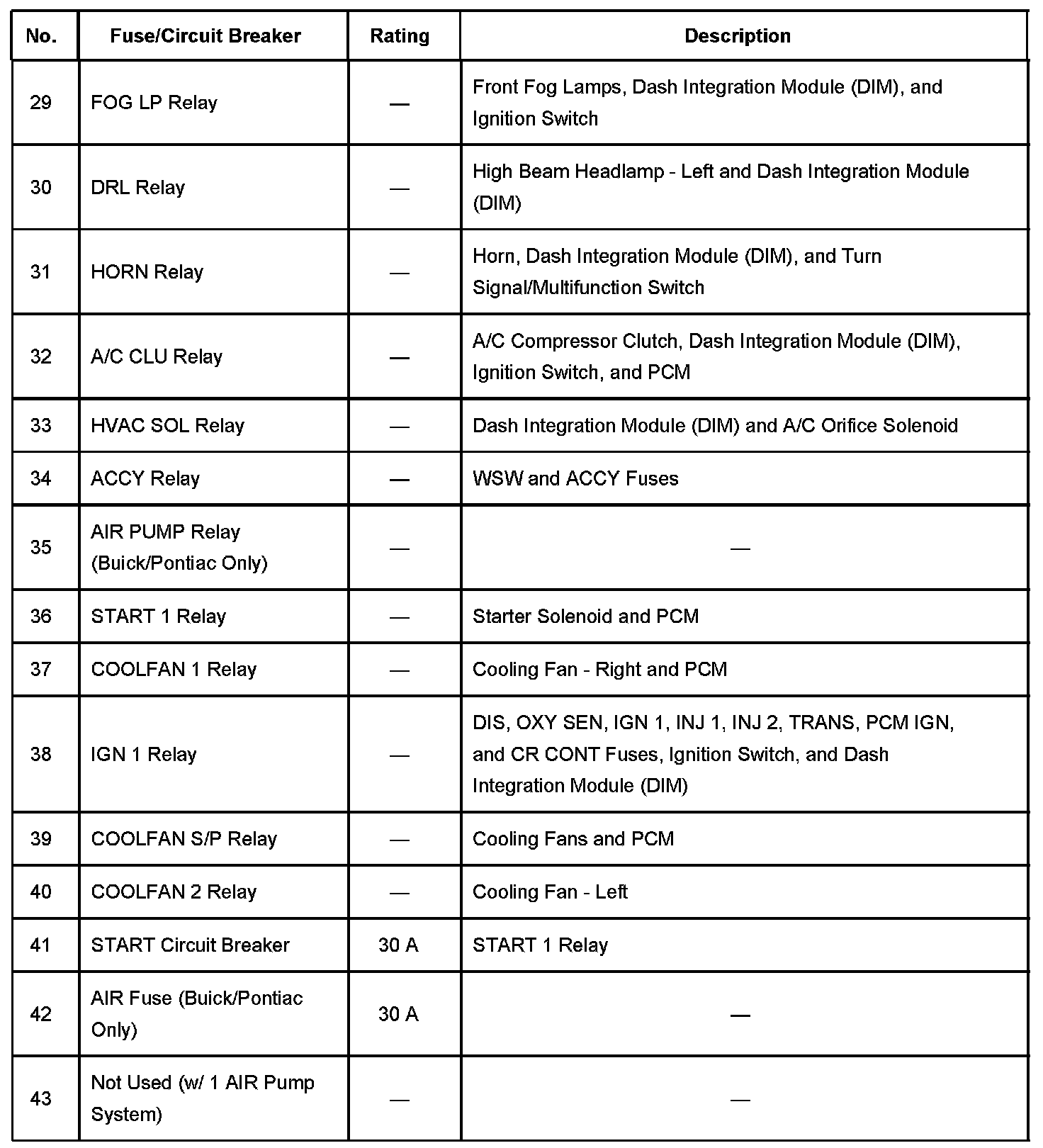

Application Table Part 1:

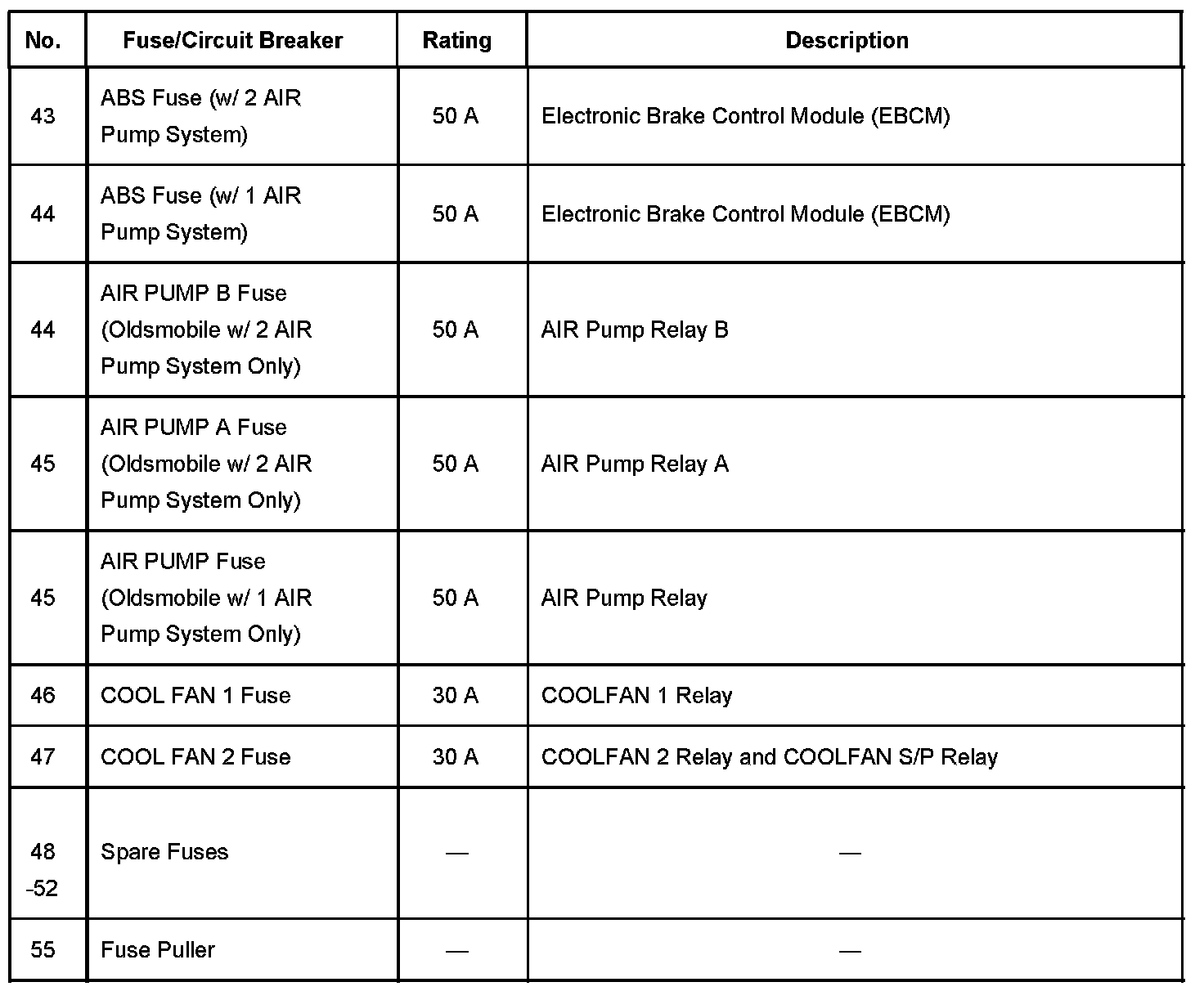

Application Table Part 2:

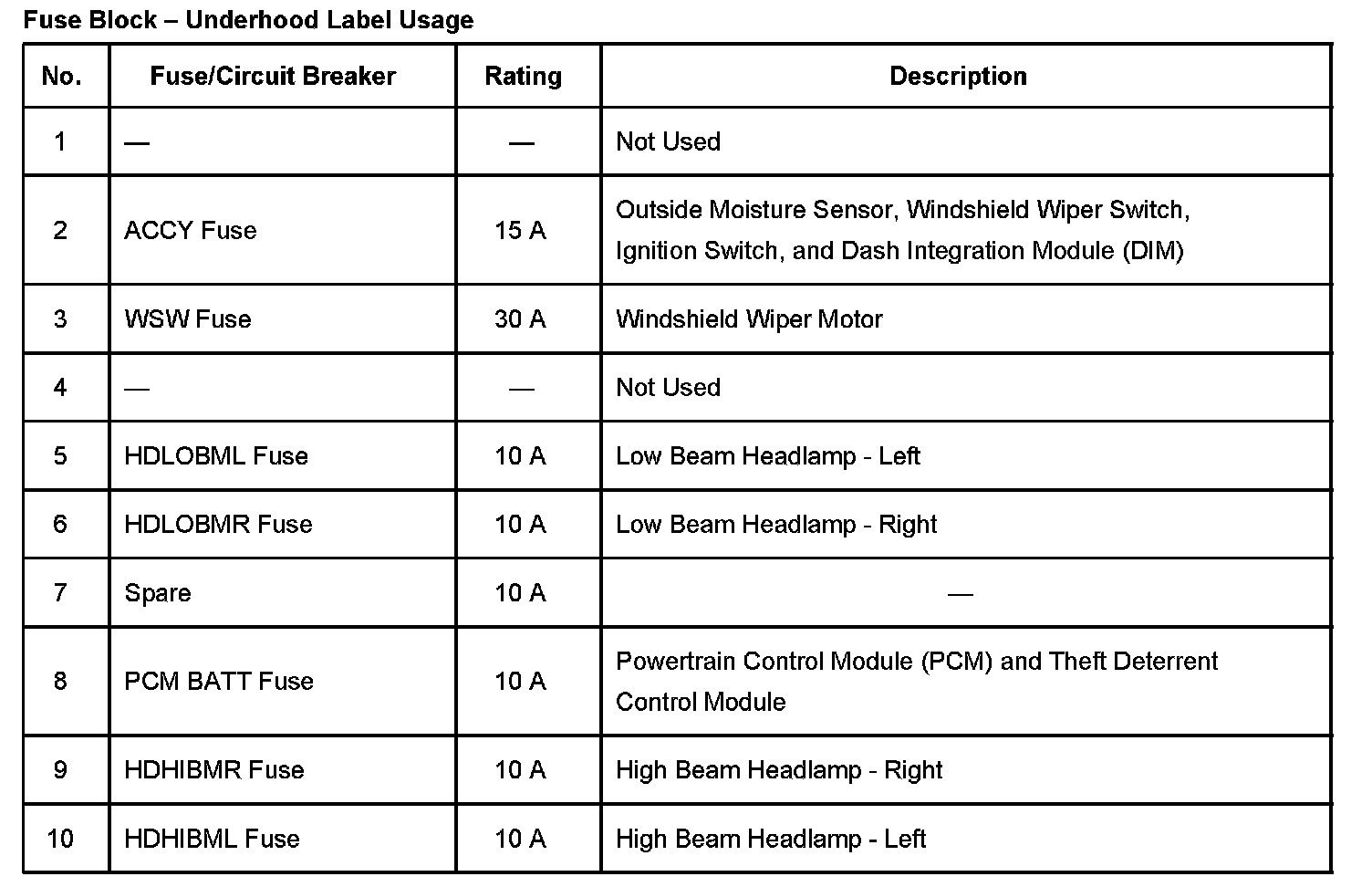

Application Table Part 3:

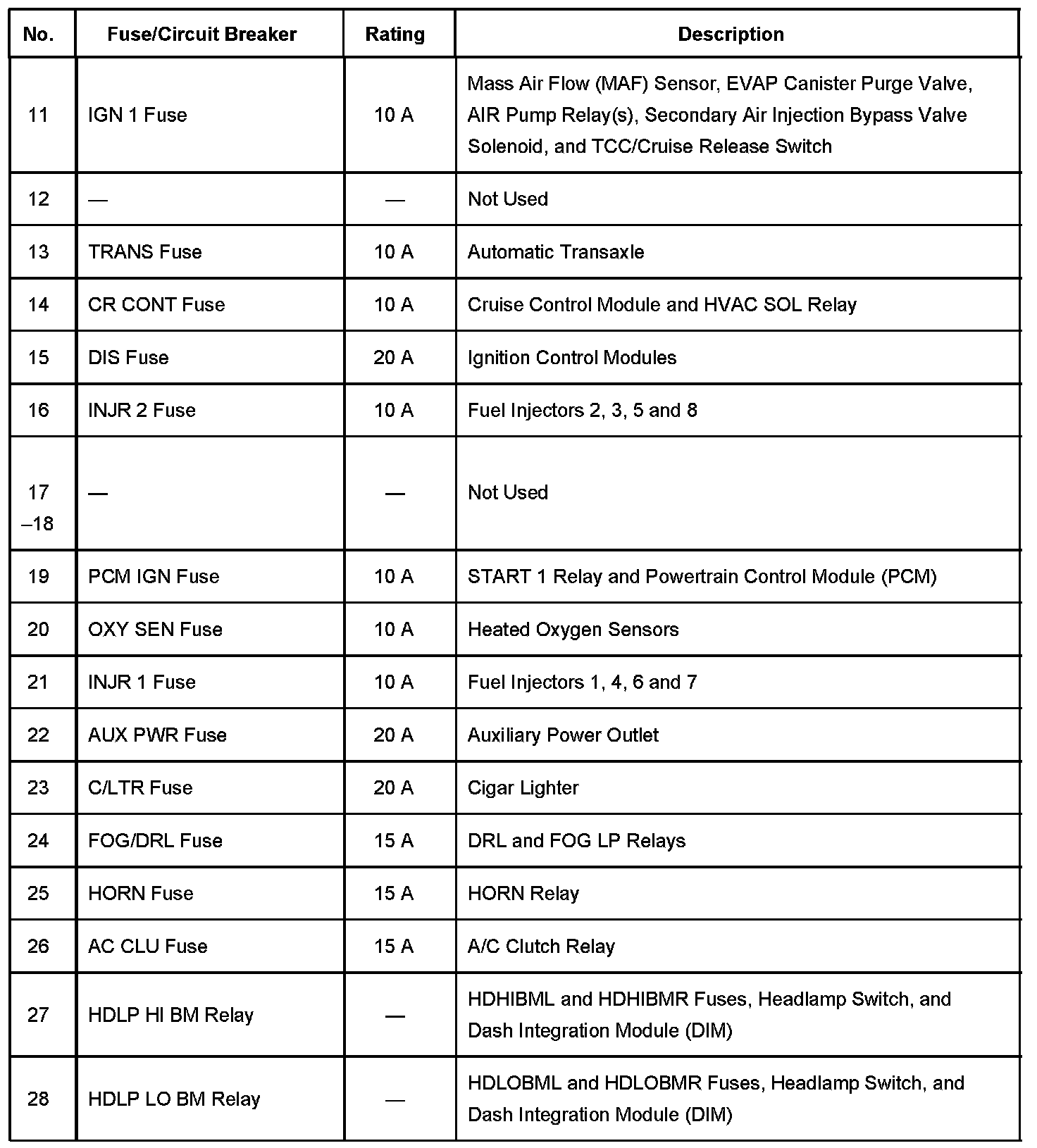

Application Table Part 4:
Location View:
Location View:
