C800 - C803
>>
C803 - RH Rear Door Harness Inline to RH Rear Door Jumper
C803 - RH Rear Door Harness Inline to RH Rear Door Jumper

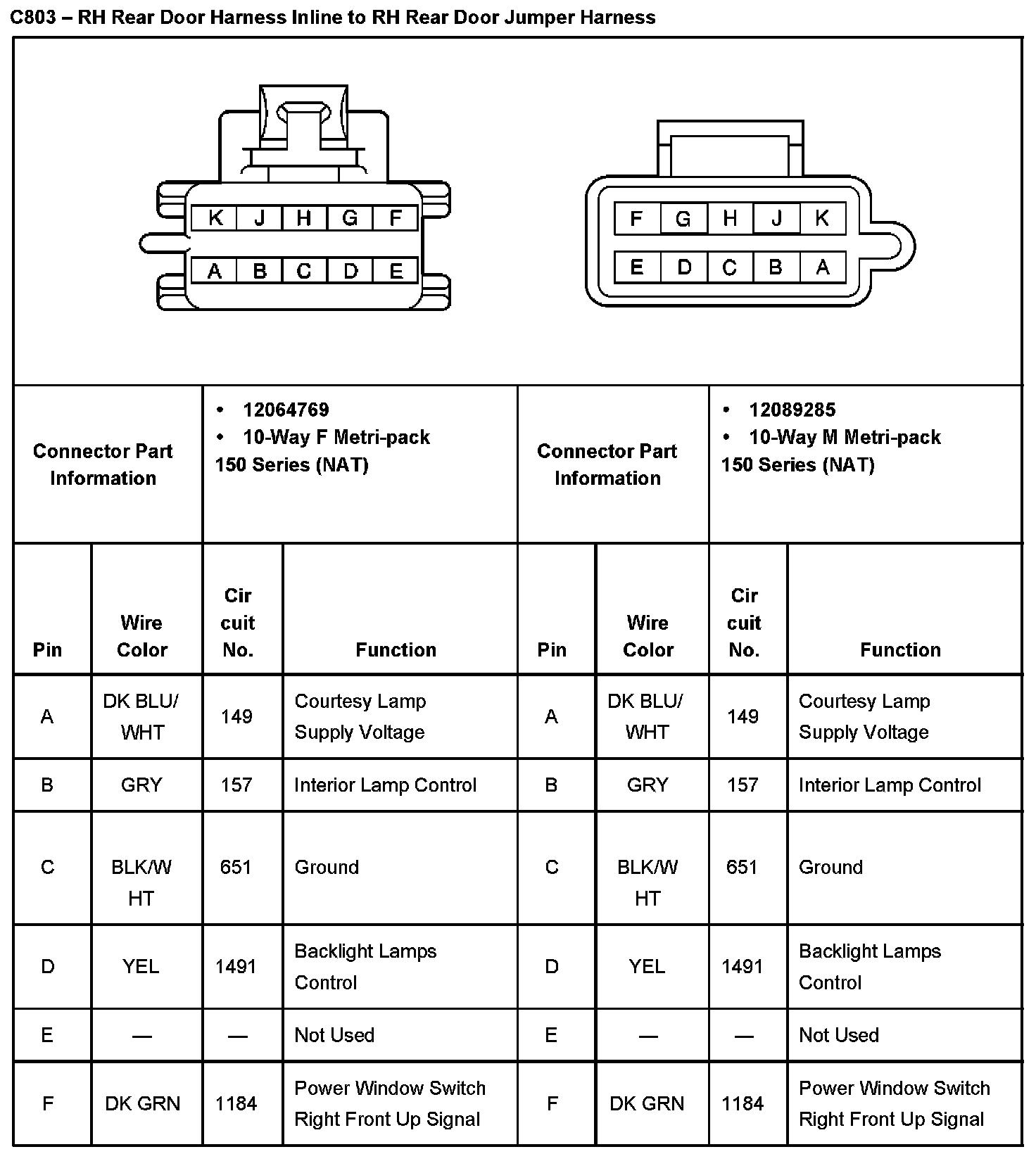

C803 - RH Rear Door Harness Inline To RH Rear Door Jumper Harness Part 1:

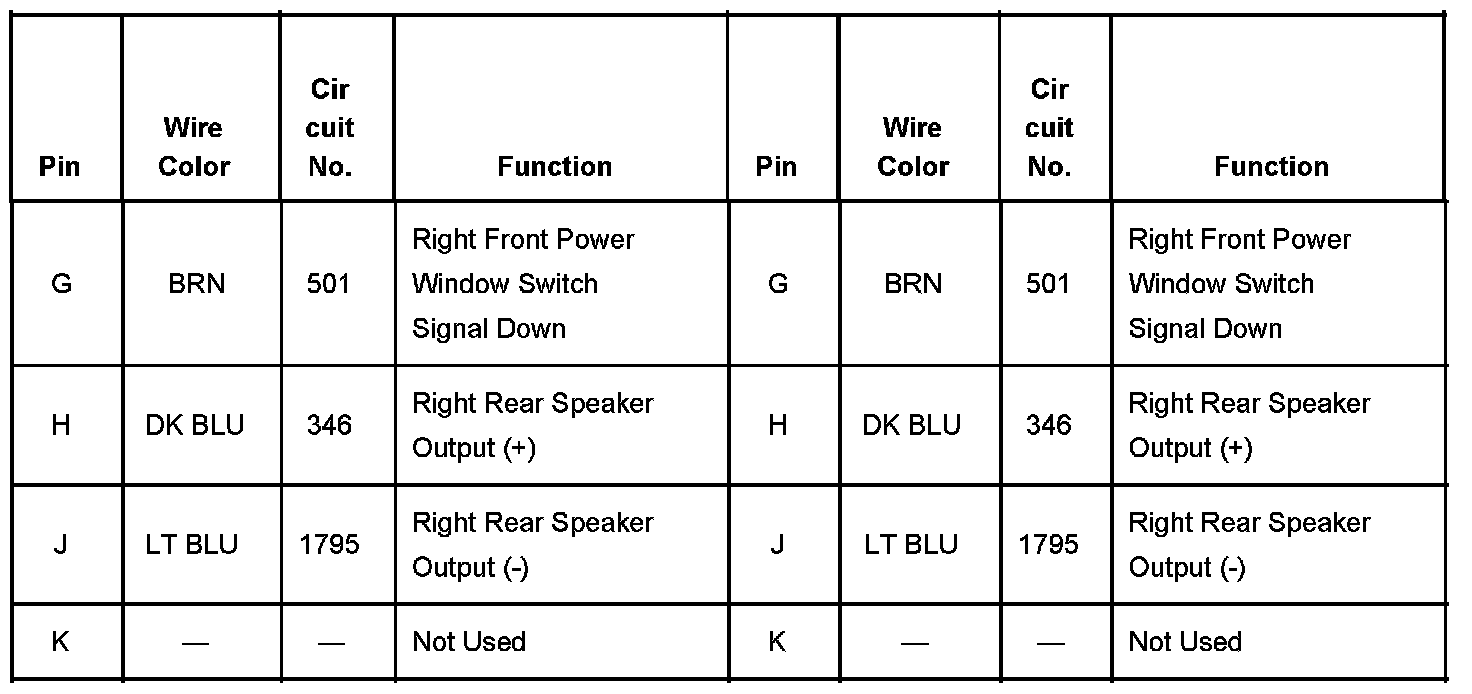

C803 - RH Rear Door Harness Inline To RH Rear Door Jumper Harness Part 2:
