Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C800 - C803
>>
C800 - RH Body Harness Inline to RH Rear Door Harness
C800 - RH Body Harness Inline to RH Rear Door Harness

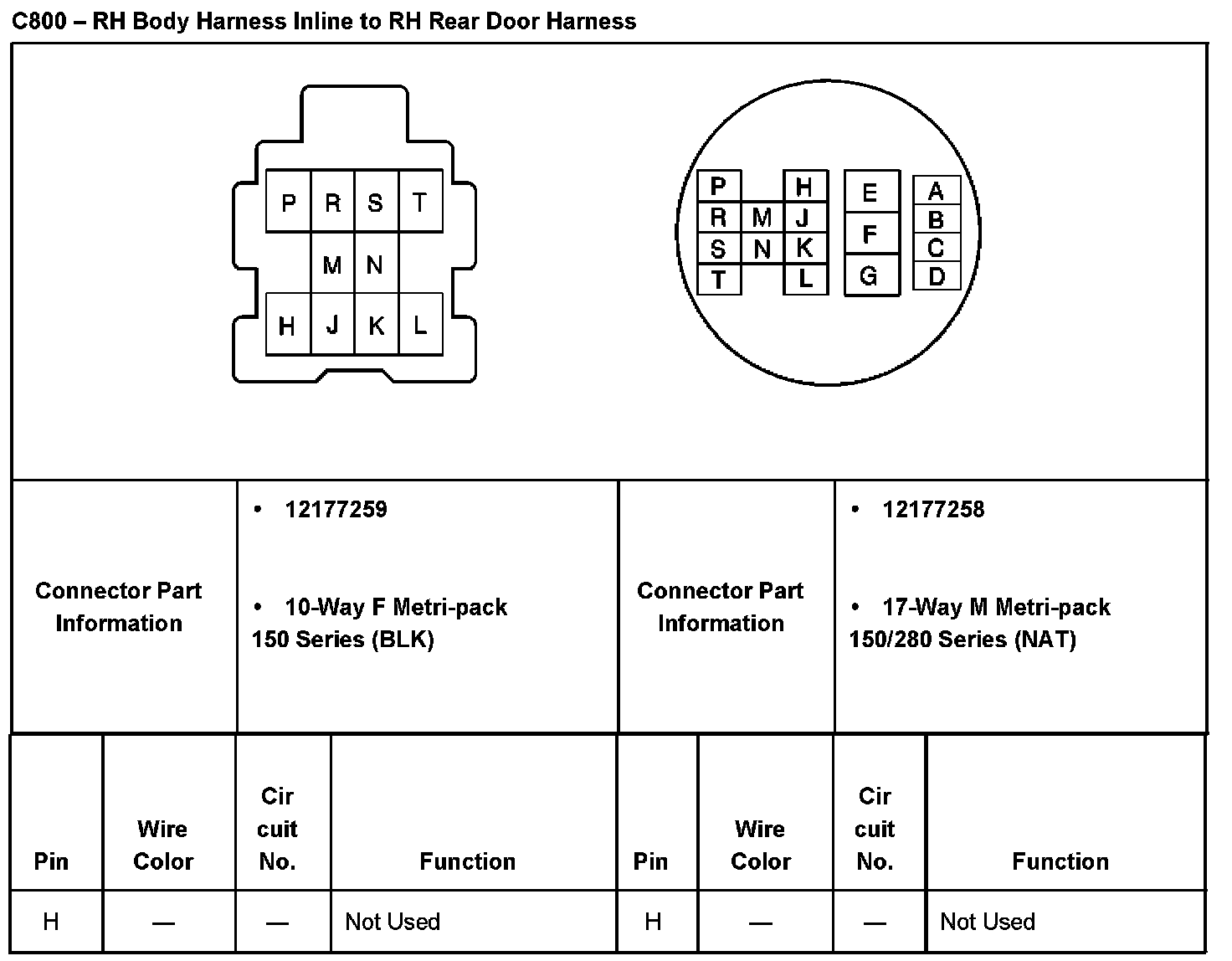

C800 - RH Body Harness Inline To RH Rear Door Harness Part 1:

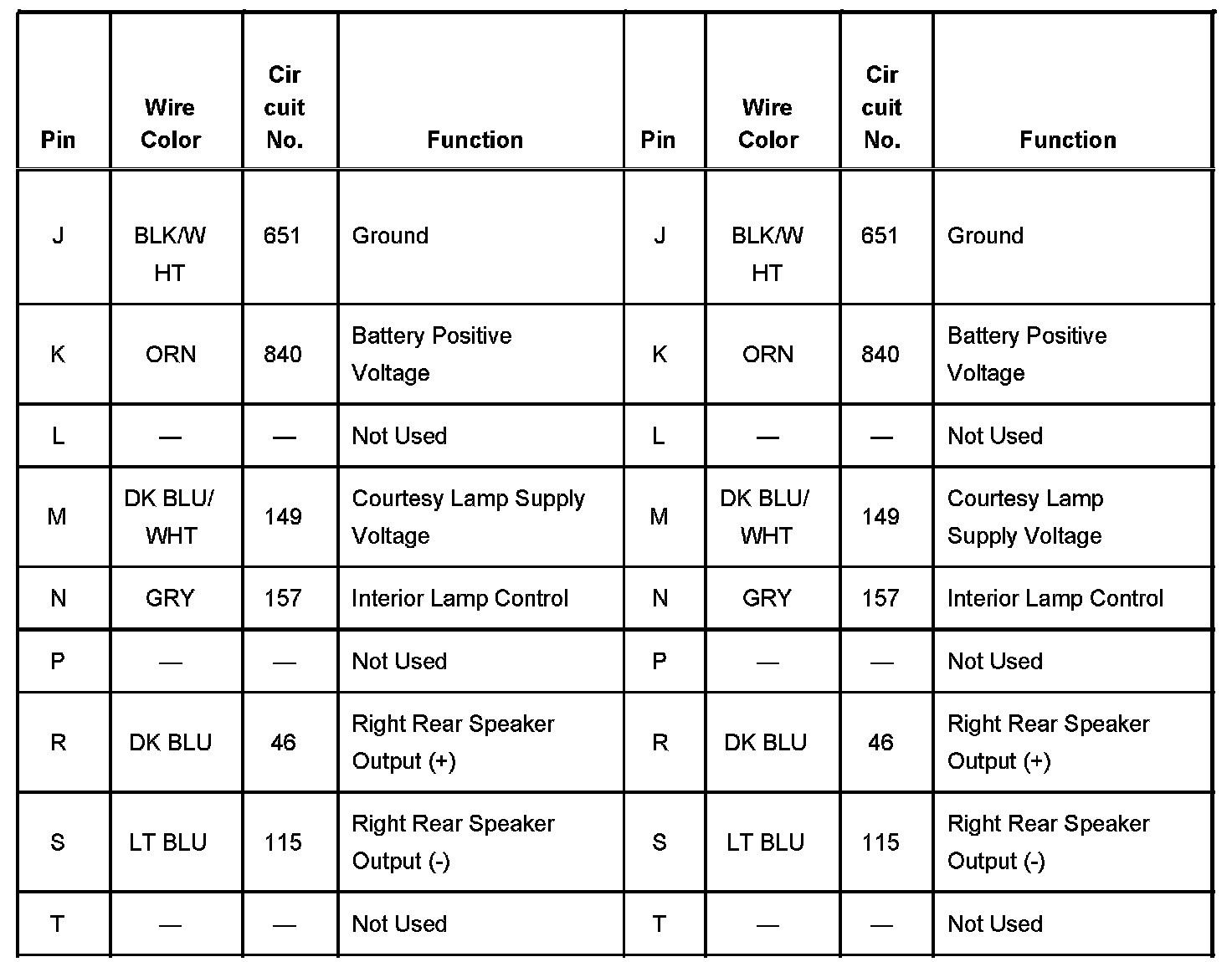

C800 - RH Body Harness Inline To RH Rear Door Harness Part 2:
