C700 - C703
>>
C703 - LH Rear Door Harness Inline to LH Rear Door Jumper
C703 - LH Rear Door Harness Inline to LH Rear Door Jumper

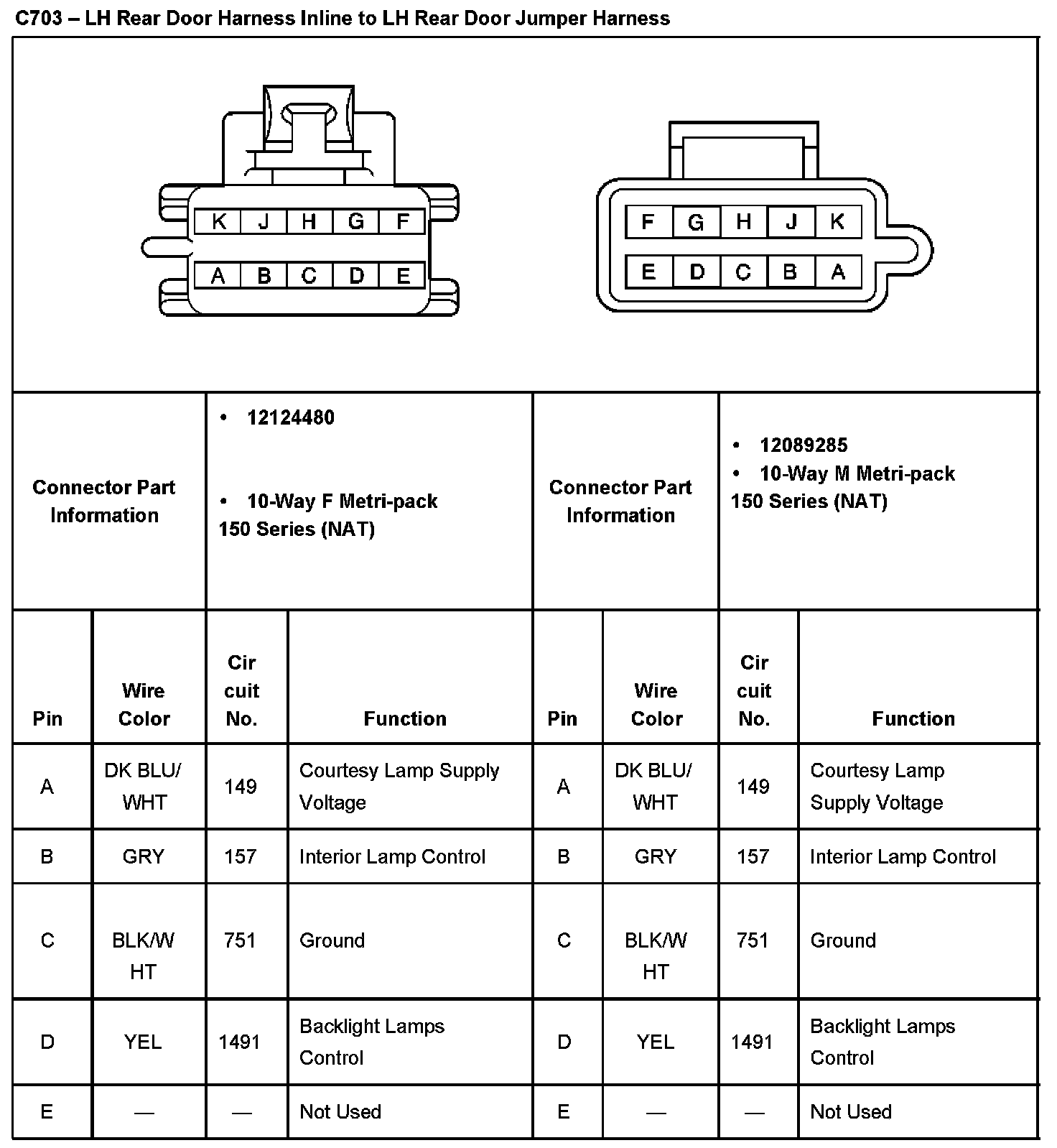

C703 - LH Rear Door Harness Inline To LH Rear Door Jumper Harness Part 1:

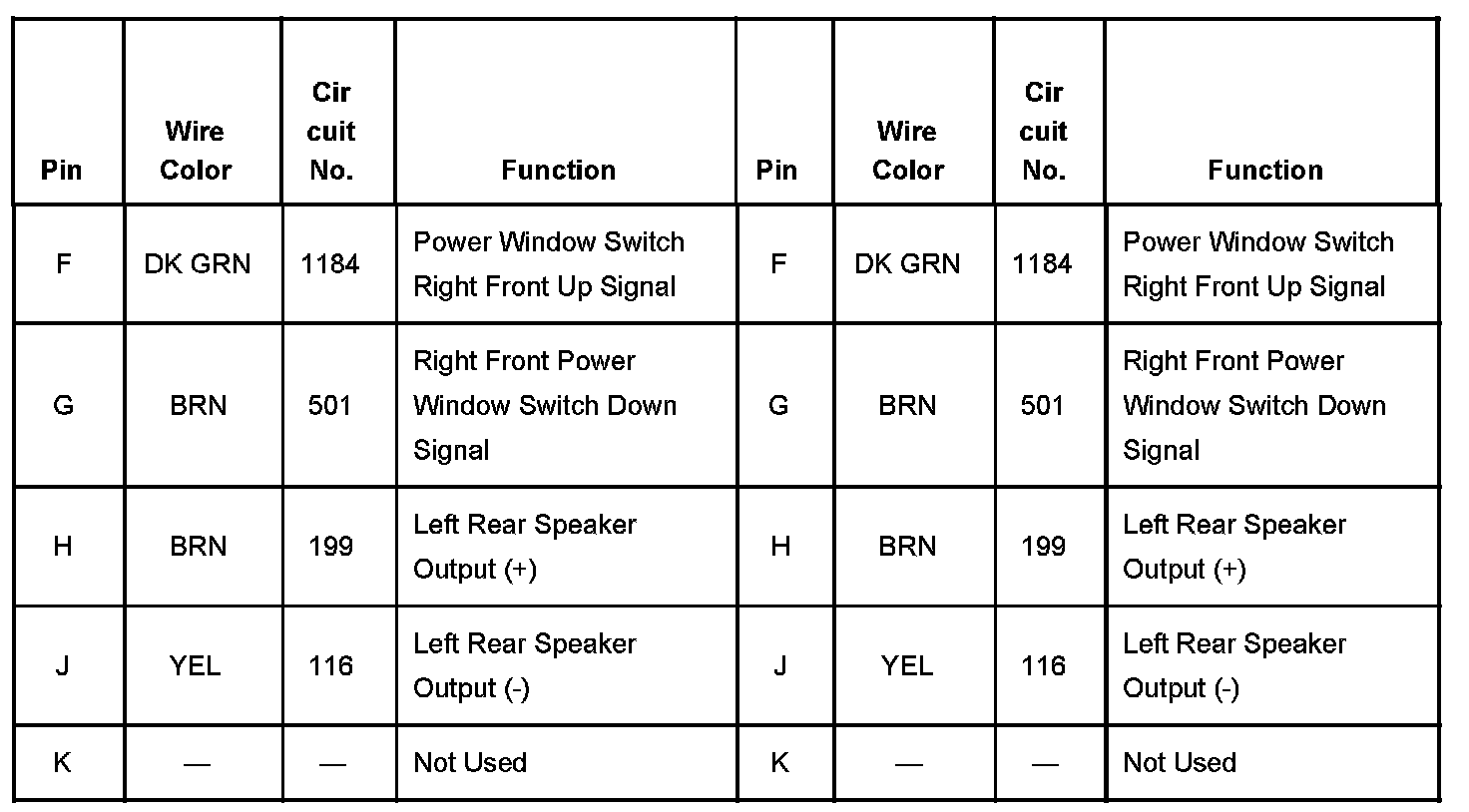

C703 - LH Rear Door Harness Inline To LH Rear Door Jumper Harness Part 2:
