C700 - C703
>>

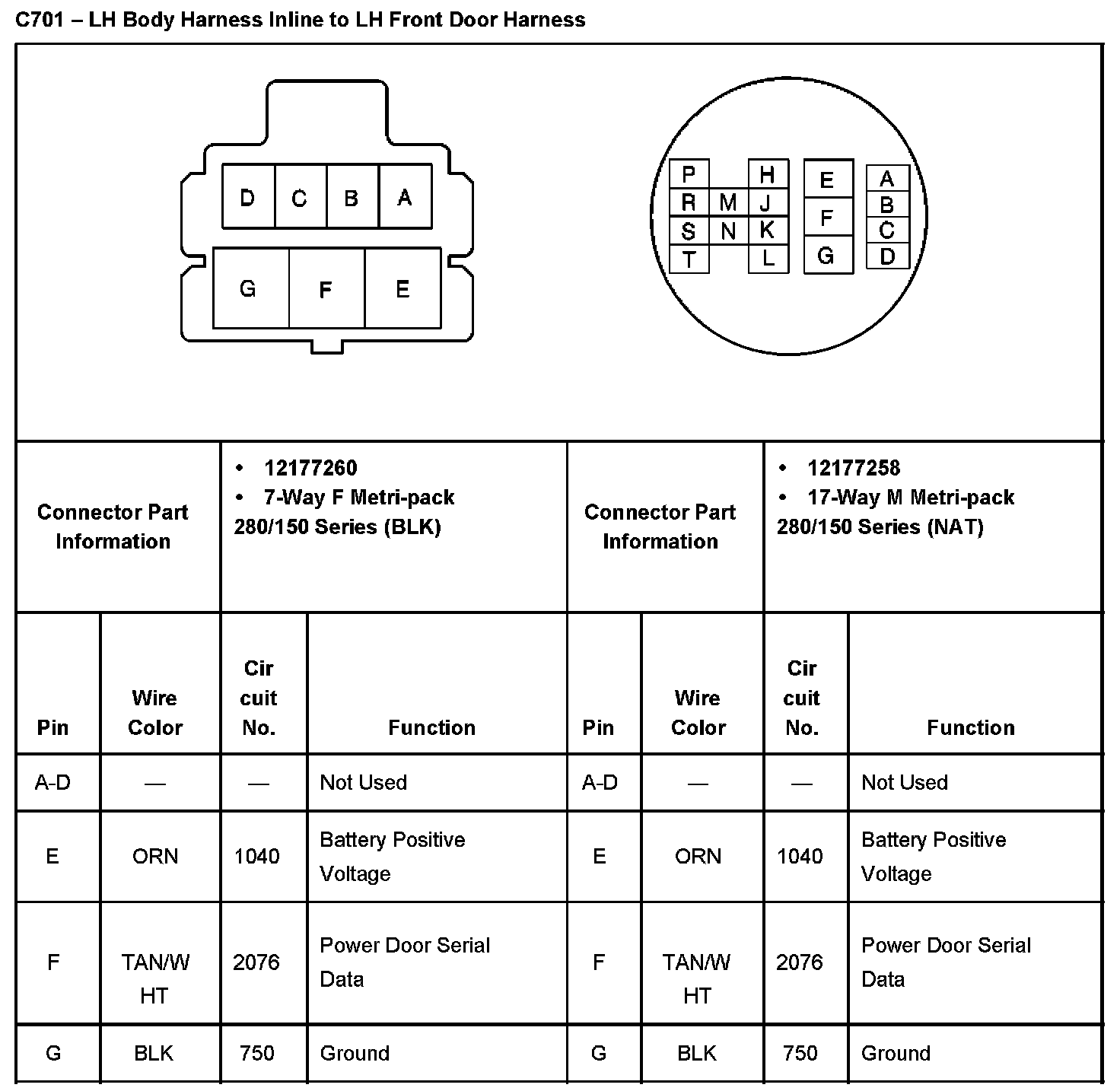

C701 - LH Body Harness Inline to LH Front Door Harness
C701 - LH Body Harness Inline to LH Front Door Harness
C701 - LH Body Harness Inline To LH Front Door Harness:
