C603 - RH Front Door Harness Inline to RH Front Door Jumper

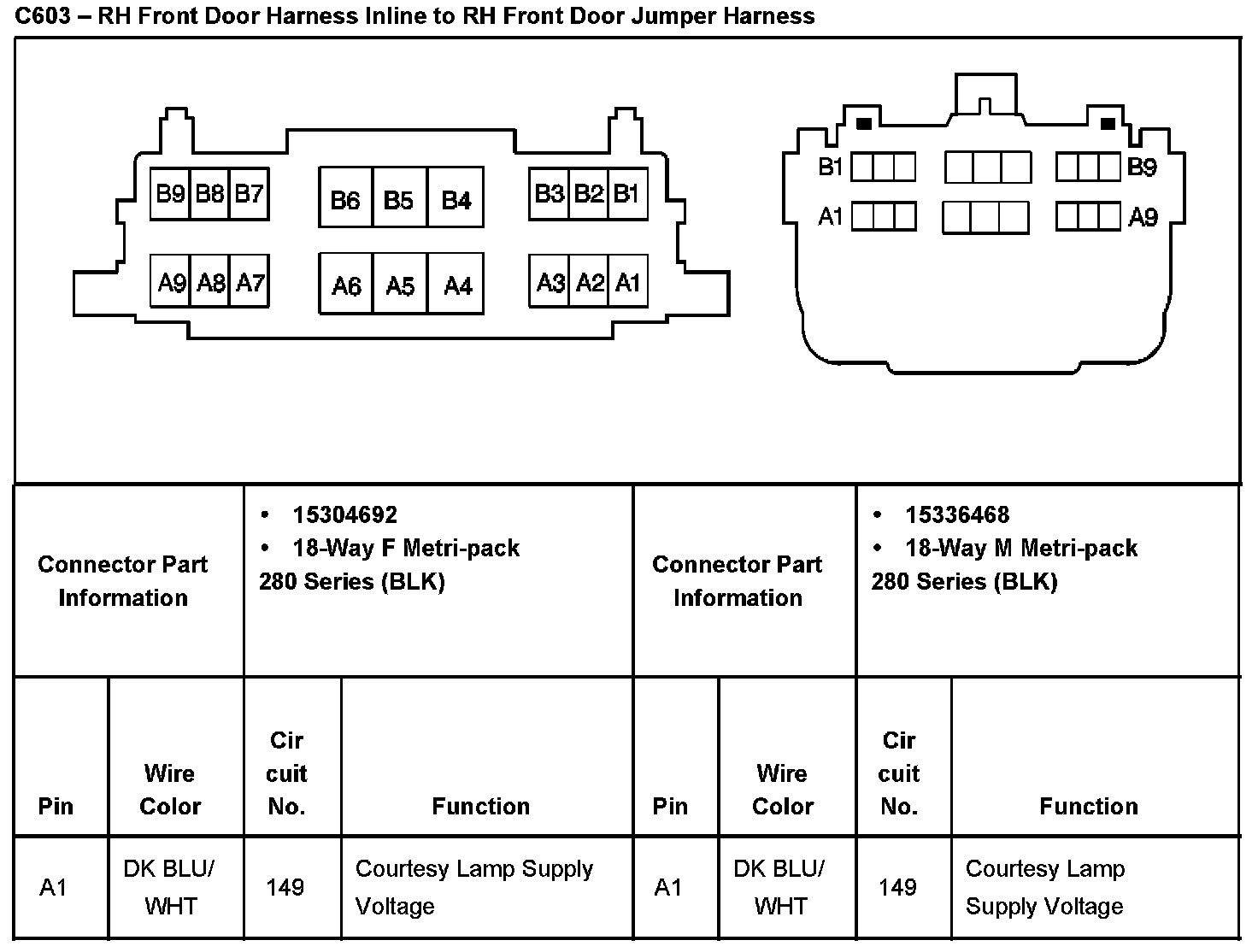

C603 - RH Front Door Harness Inline To RH Front Door Jumper Harness Part 1:

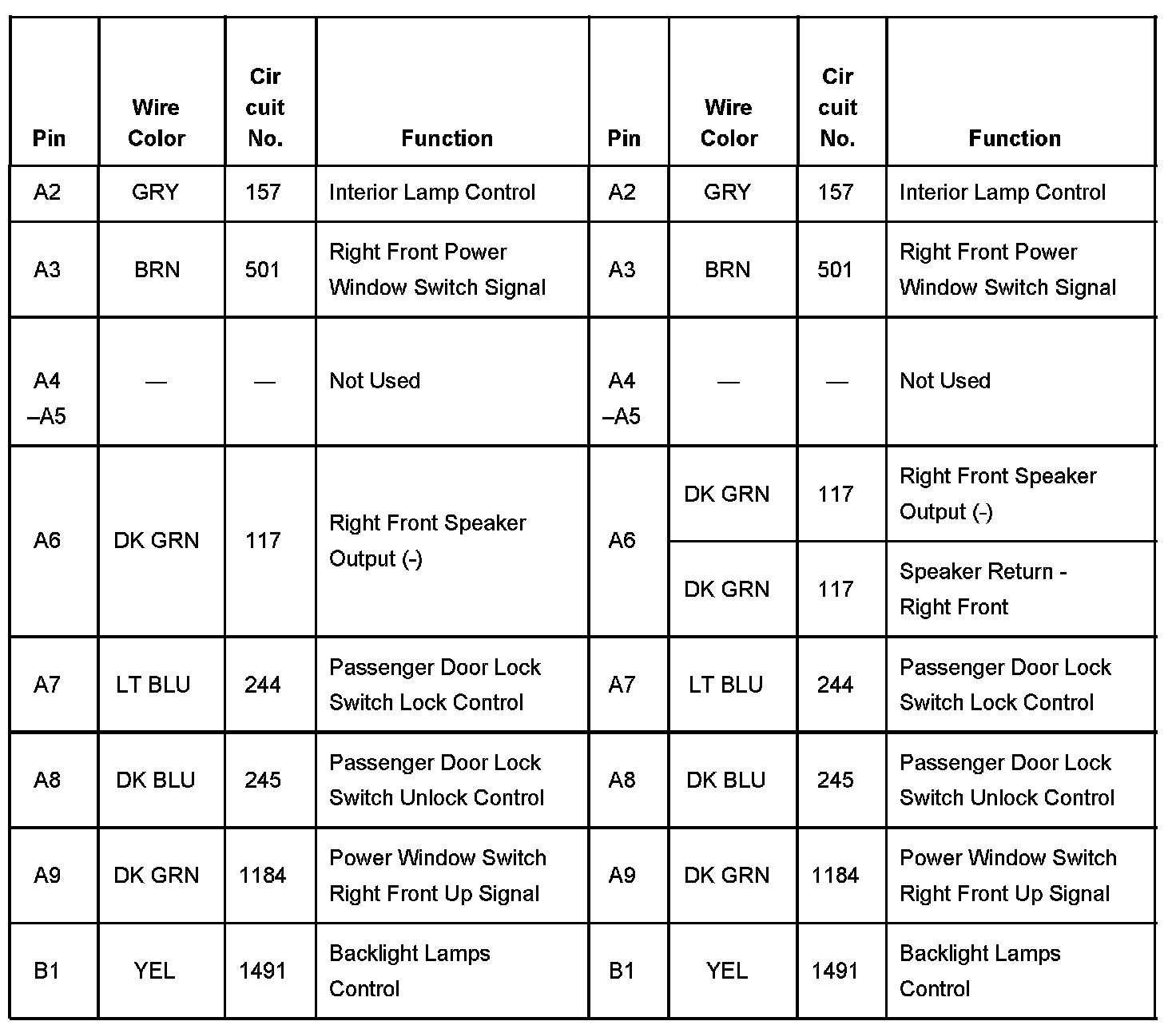

C603 - RH Front Door Harness Inline To RH Front Door Jumper Harness Part 2:

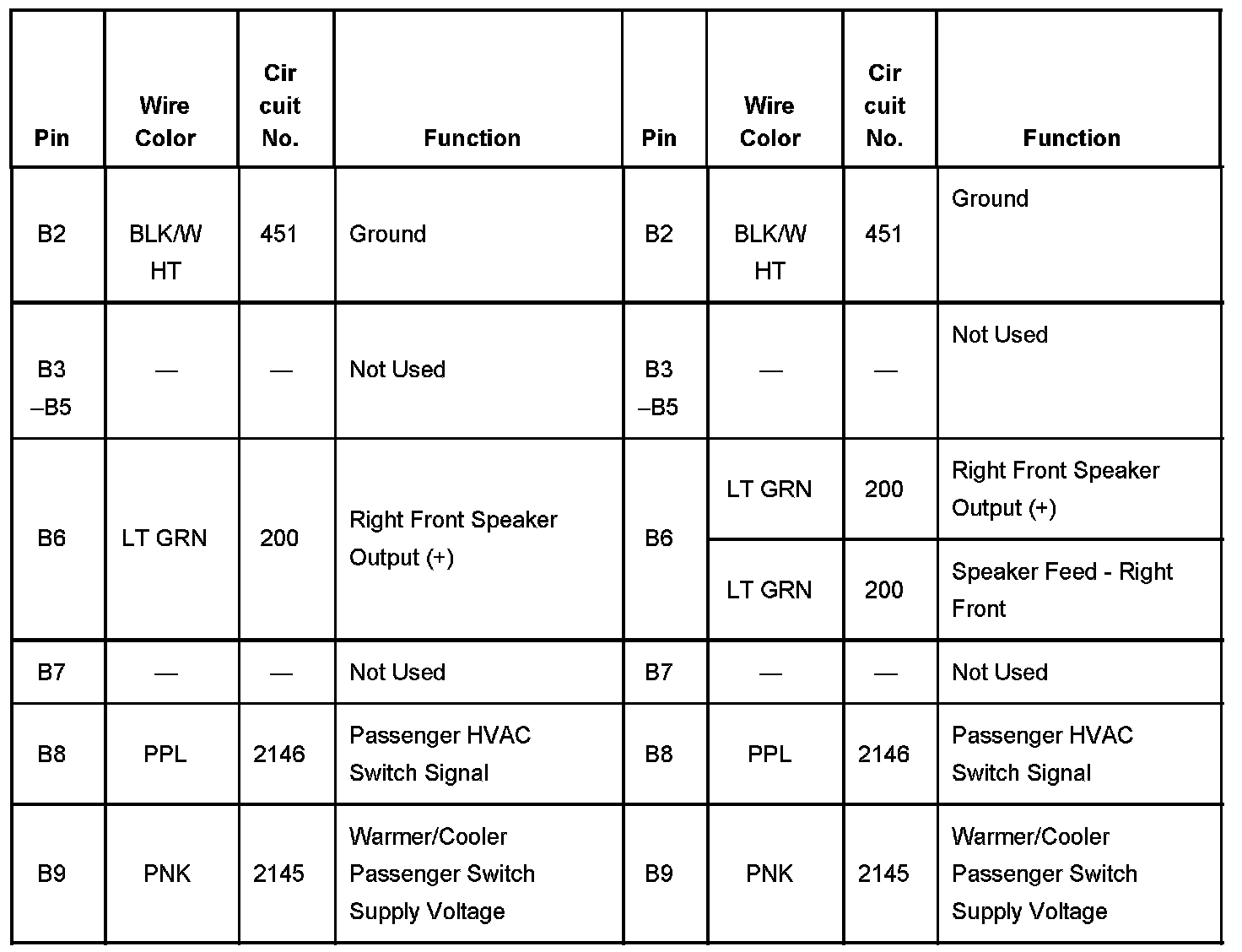

C603 - RH Front Door Harness Inline To RH Front Door Jumper Harness Part 3:
