C600 - Right Front Door Harness Inline to Right Side Body

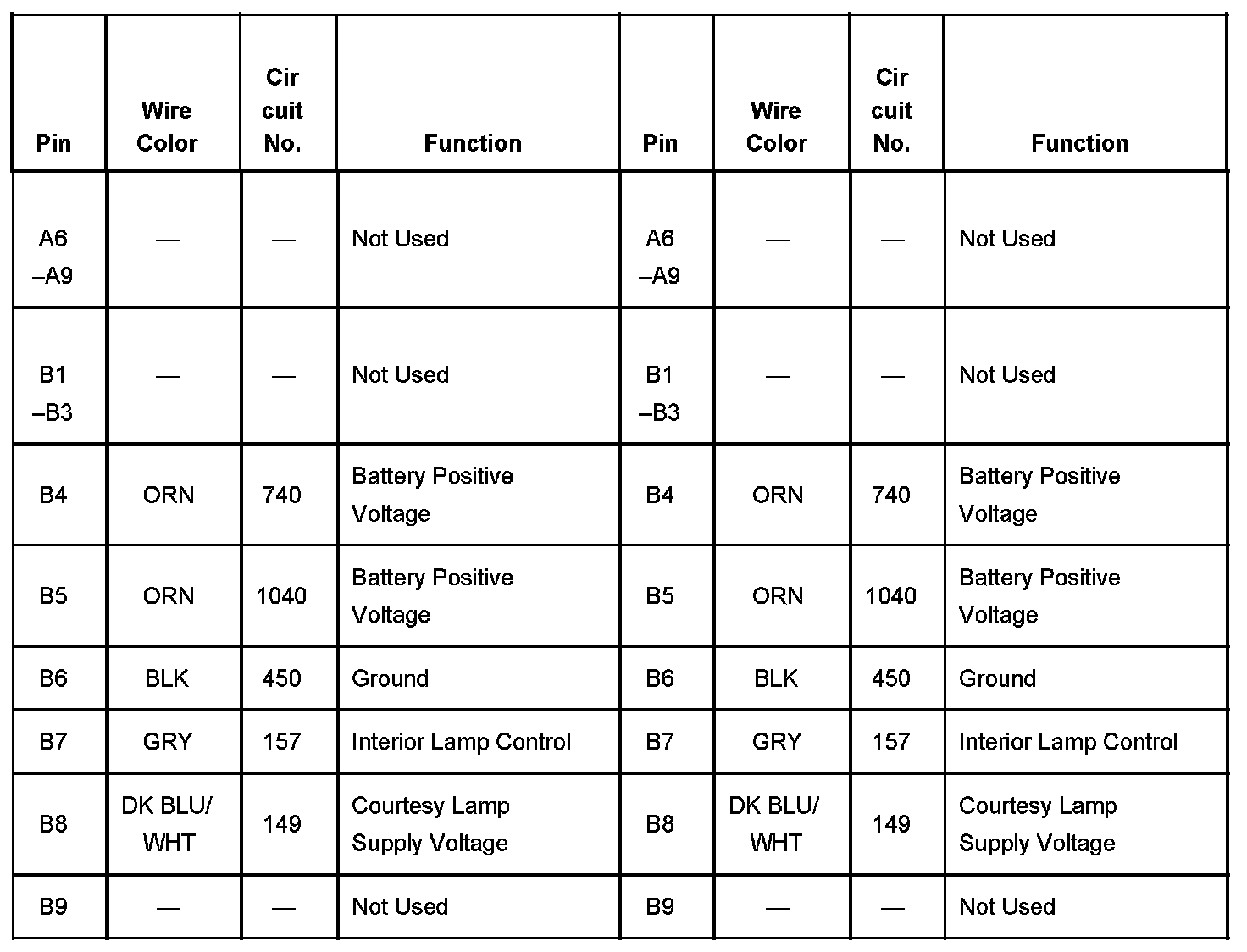

C600 - Right Front Door Harness Inline To Right Side Body Harness Part 1:



C600 - Right Front Door Harness Inline To Right Side Body Harness Part 2:
