FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C500 - C503
>>
C503 - LH Front Door Harness Inline to LF Door Jumper Harness
C503 - LH Front Door Harness Inline to LF Door Jumper Harness

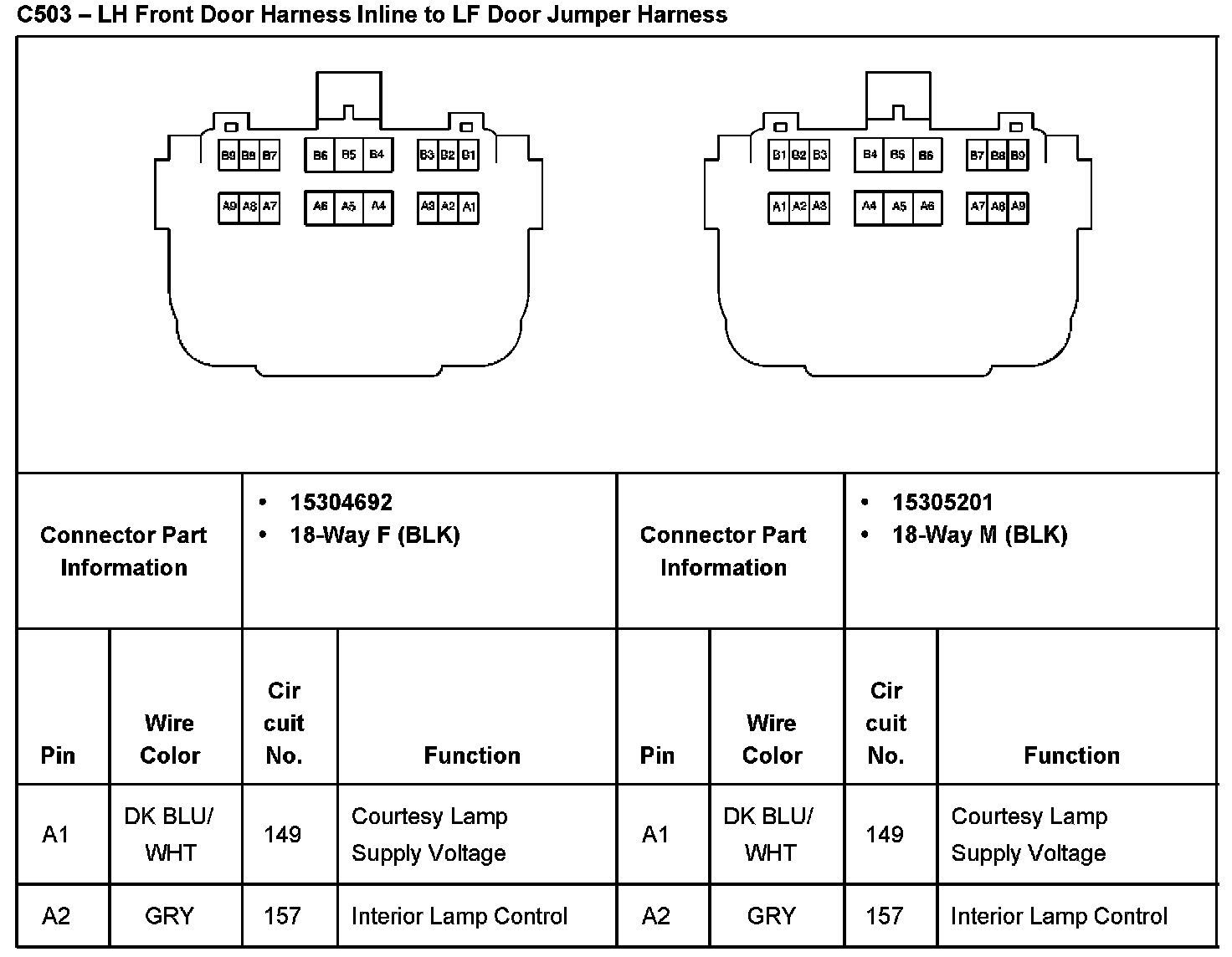

C503 - LH Front Door Harness Inline To LF Door Jumper Harness Part 1:
C503 - LH Front Door Harness Inline To LF Door Jumper Harness Part 2:
