C500 - Left Front Door Harness Inline to Left Side Body Harness

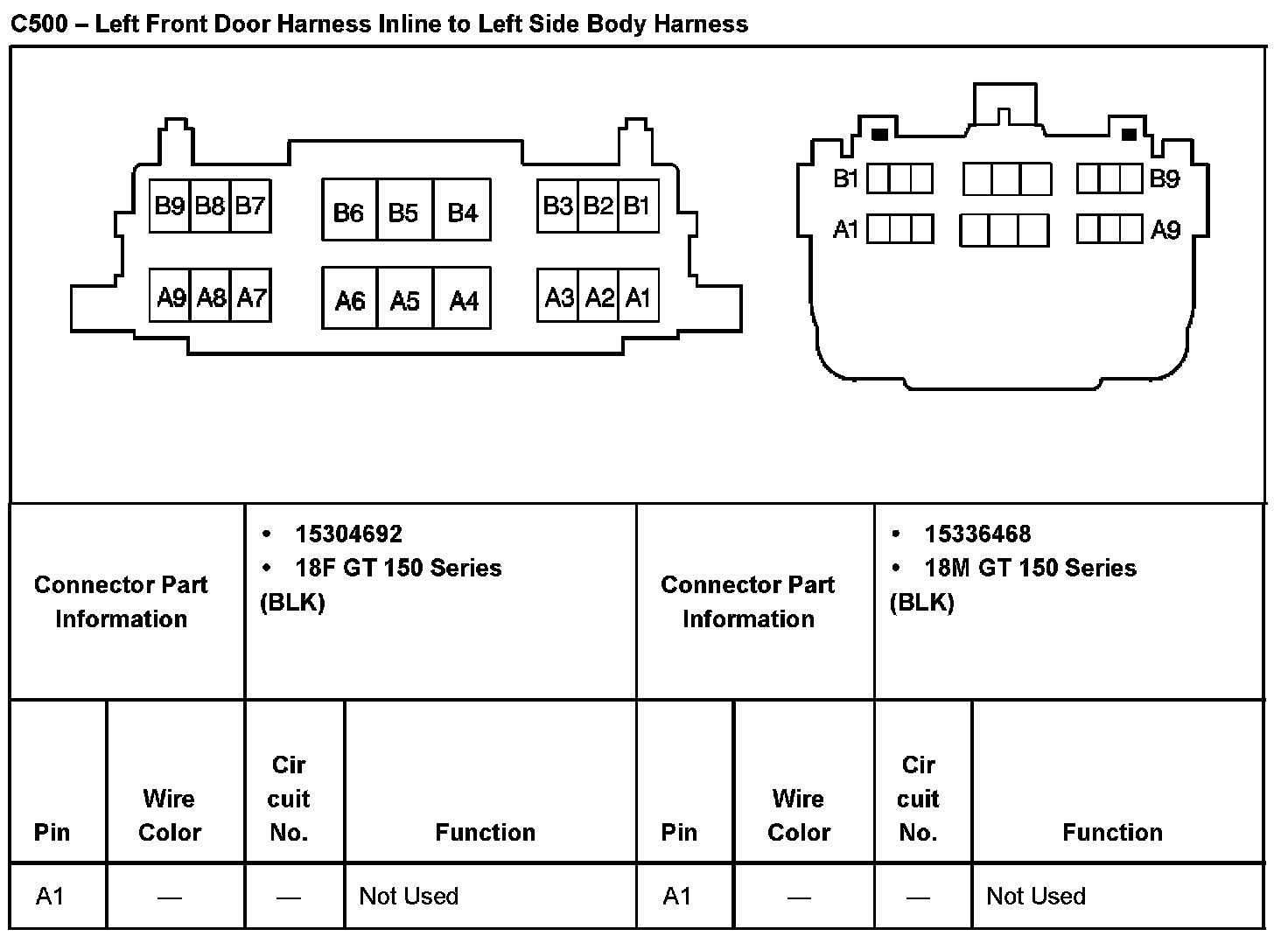

C500 - Left Front Door Harness Inline To Left Side Body Harness Part 1:

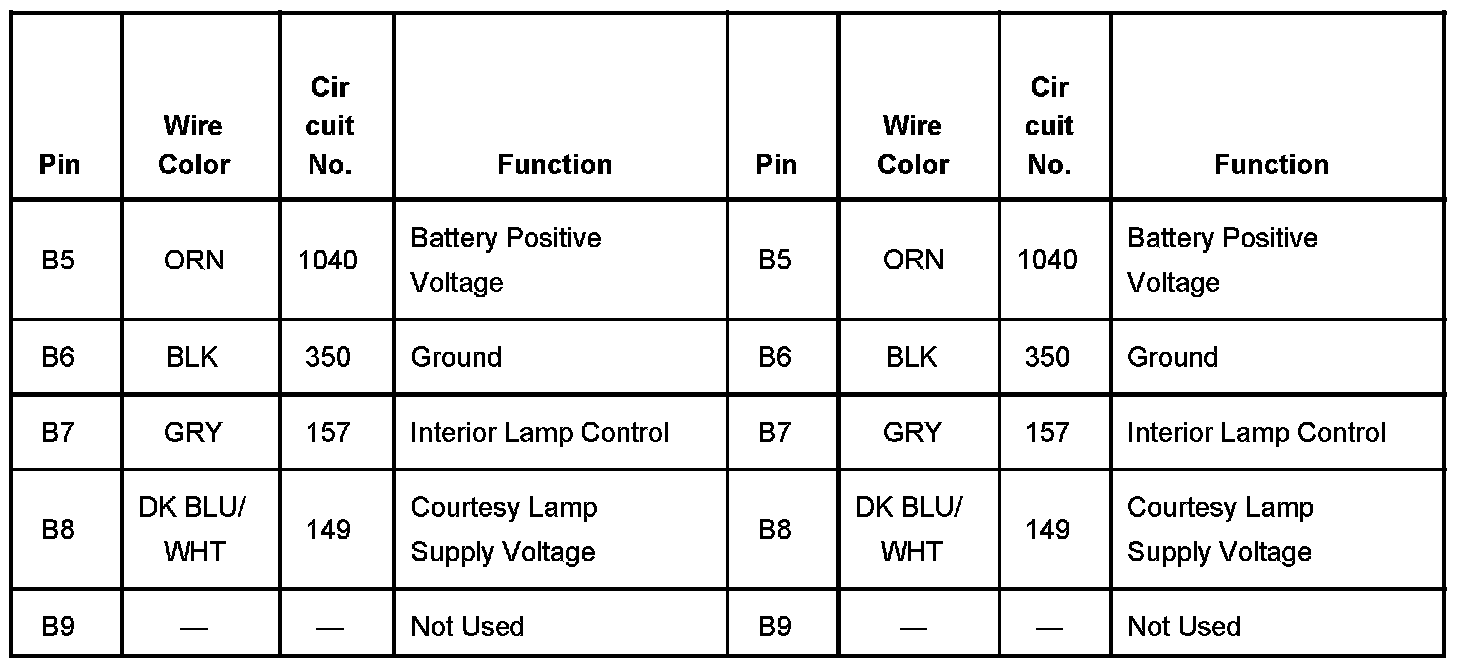

C500 - Left Front Door Harness Inline To Left Side Body Harness Part 2:



C500 - Left Front Door Harness Inline To Left Side Body Harness Part 3:
