C450 - Rear Shelf Inline to Entrapment Protection Sensor Jumper

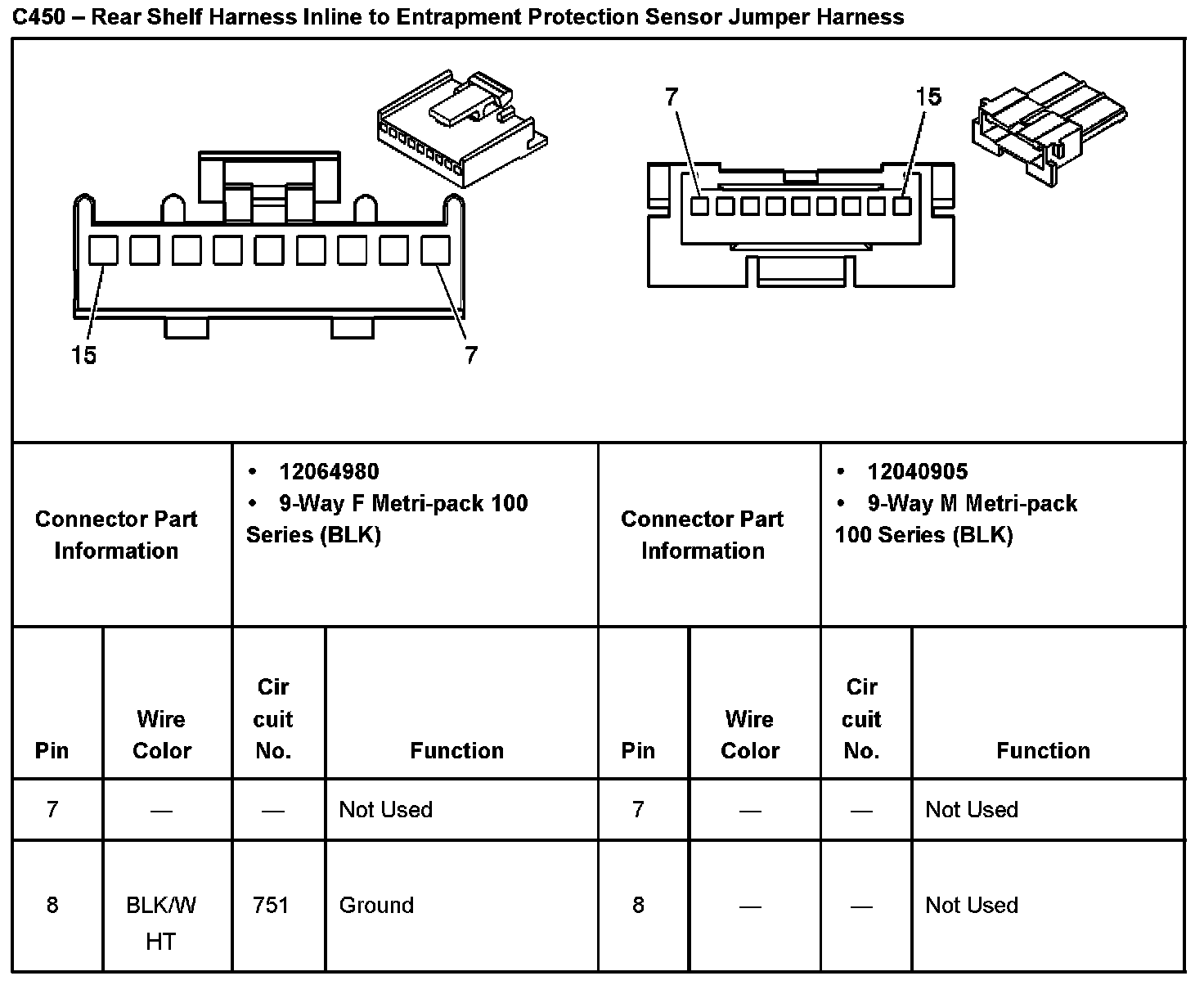

C450 - Rear Shelf Harness Inline To Entrapment Protection Sensor Jumper Harness Part 1:



C450 - Rear Shelf Harness Inline To Entrapment Protection Sensor Jumper Harness Part 2:
