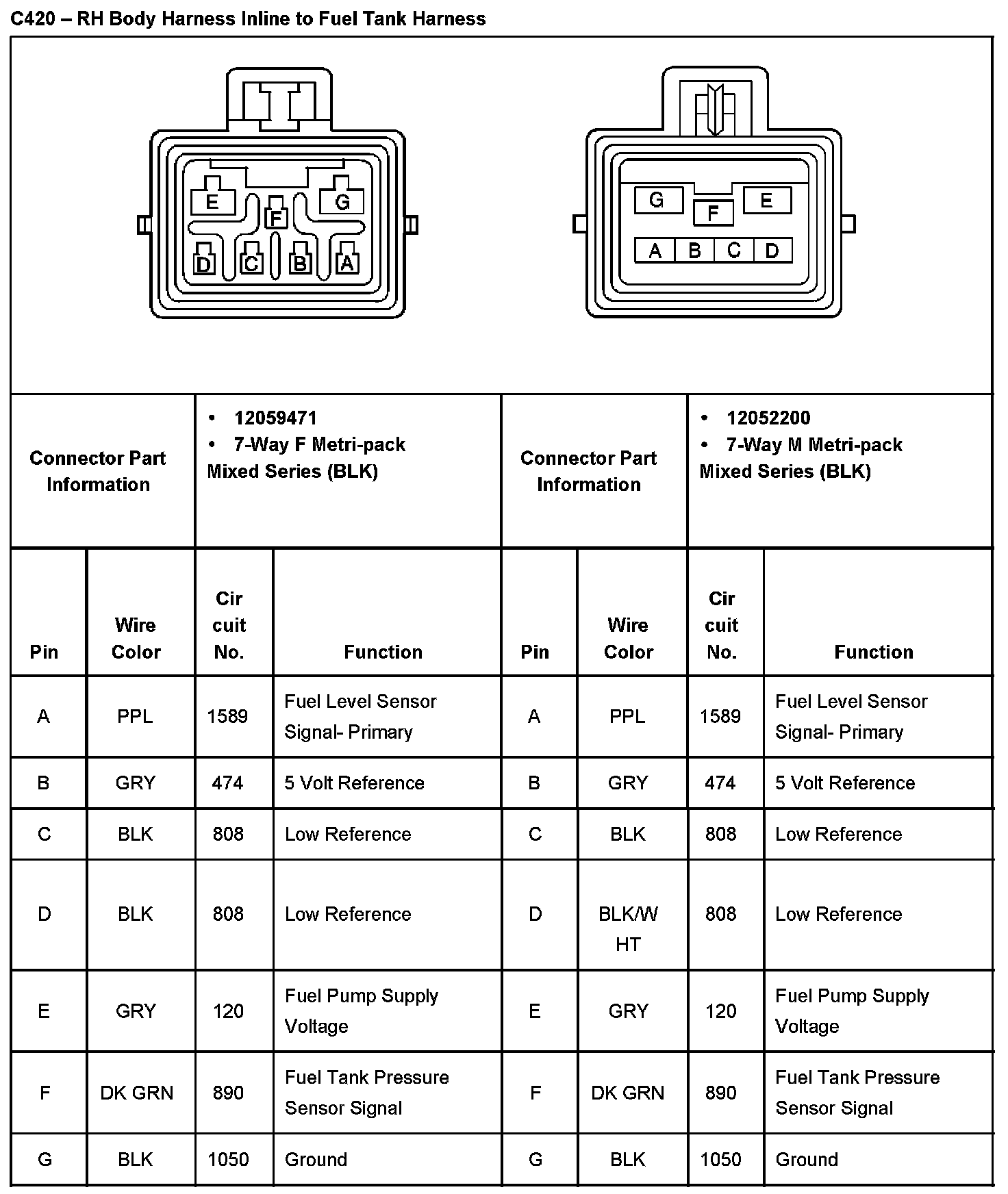

C420 - RH Body Harness Inline to Fuel Tank Harness
C420 - RH Body Harness Inline to Fuel Tank Harness
C420 - RH Body Harness Inline To Fuel Tank Harness:
