C406 - LH Body Harness Inline to Shelf Harness

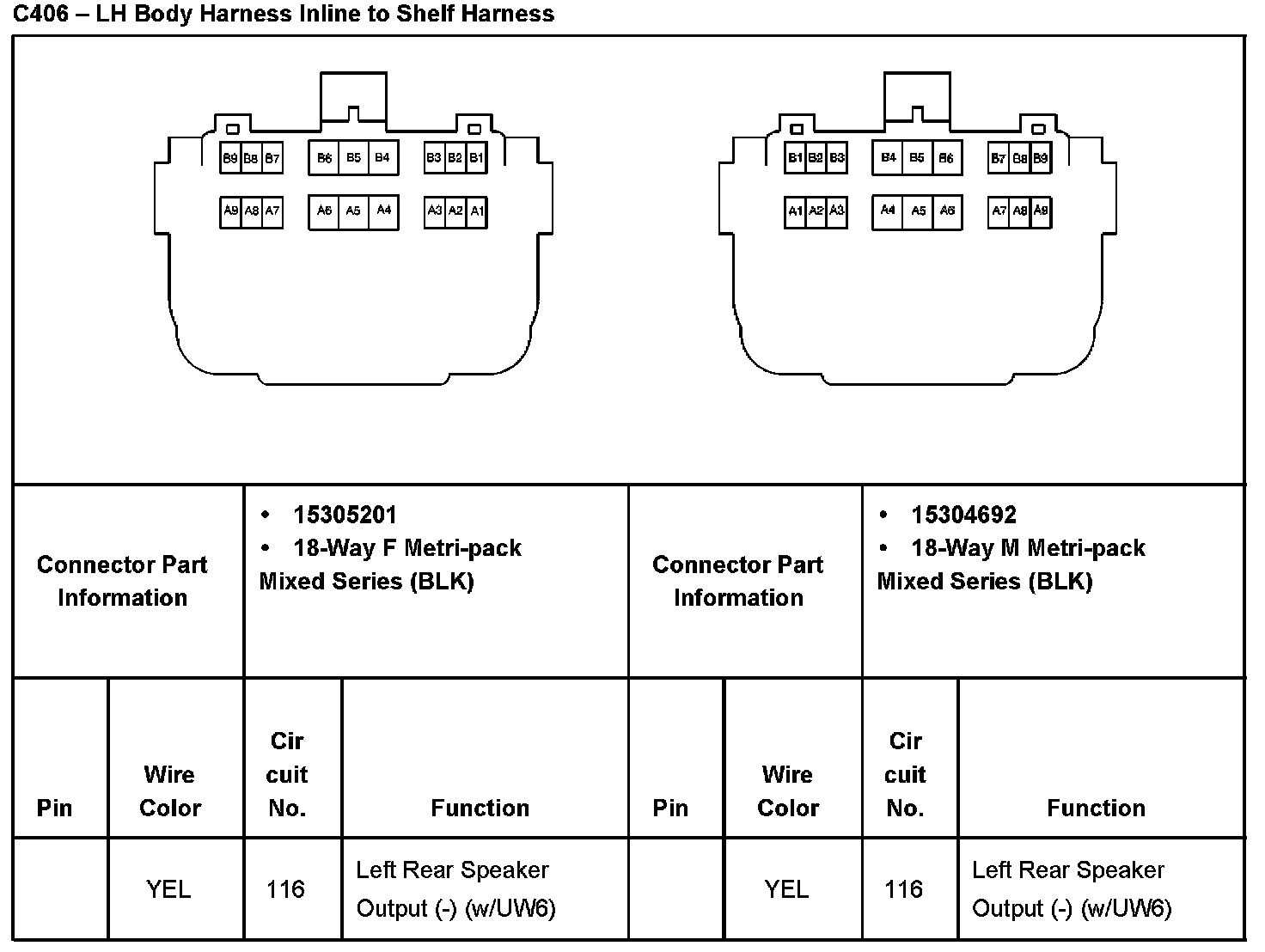

C406 - LH Body Harness Inline To Shelf Harness Part 1:

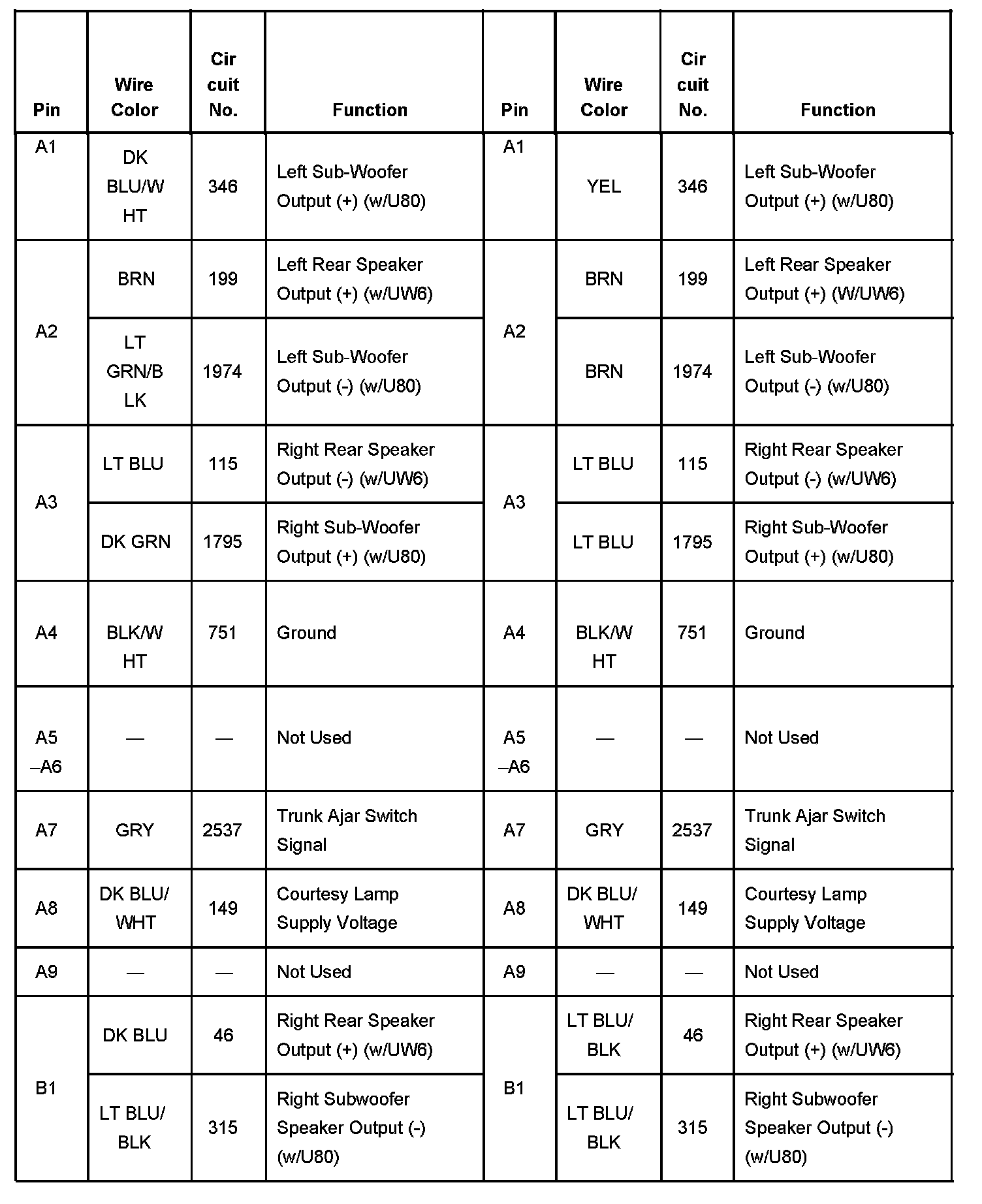

C406 - LH Body Harness Inline To Shelf Harness Part 2:

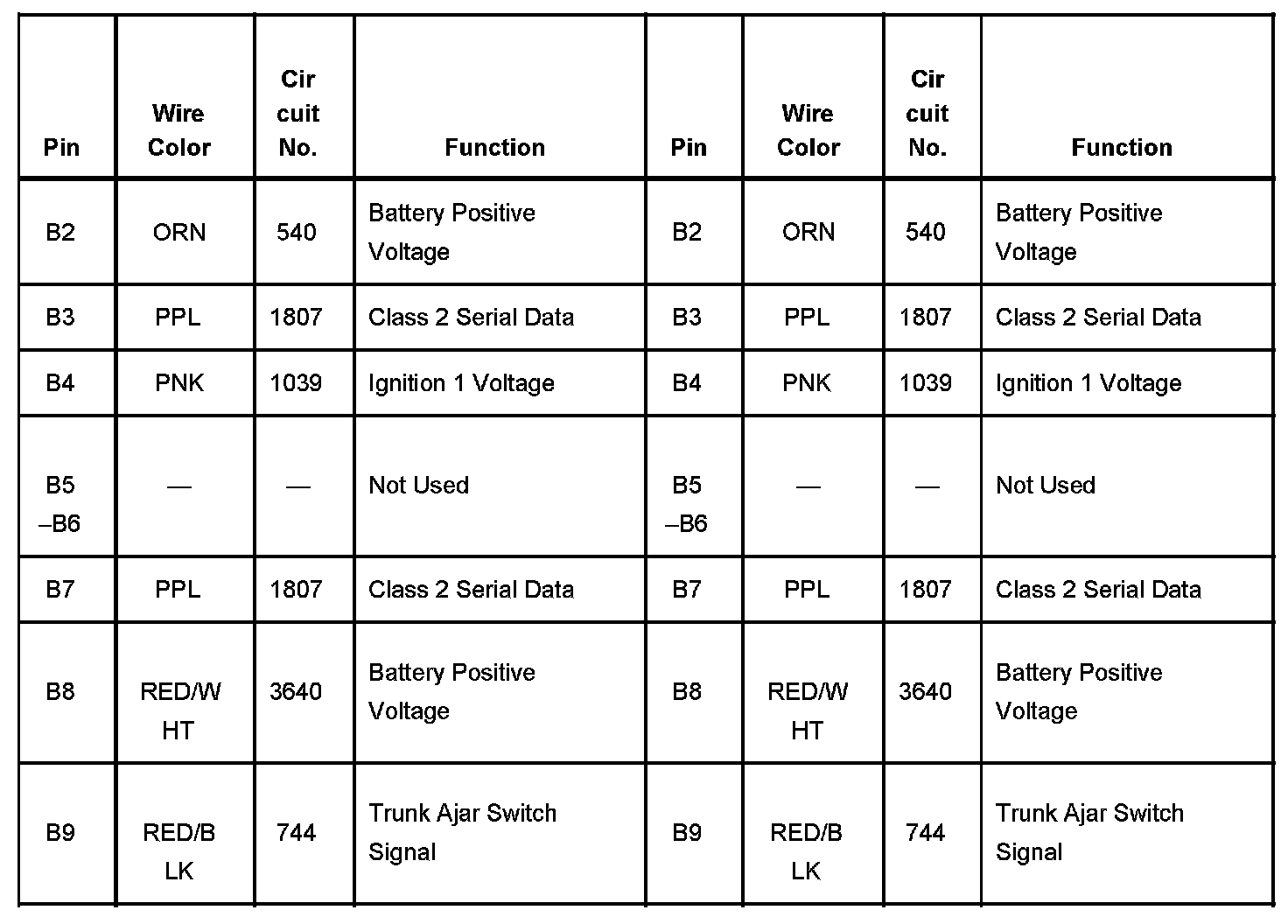

C406 - LH Body Harness Inline To Shelf Harness Part 3:
