FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C400 - C450
>>
C402 - RH Tail Lamp Harness to RH Body Harness
C402 - RH Tail Lamp Harness to RH Body Harness

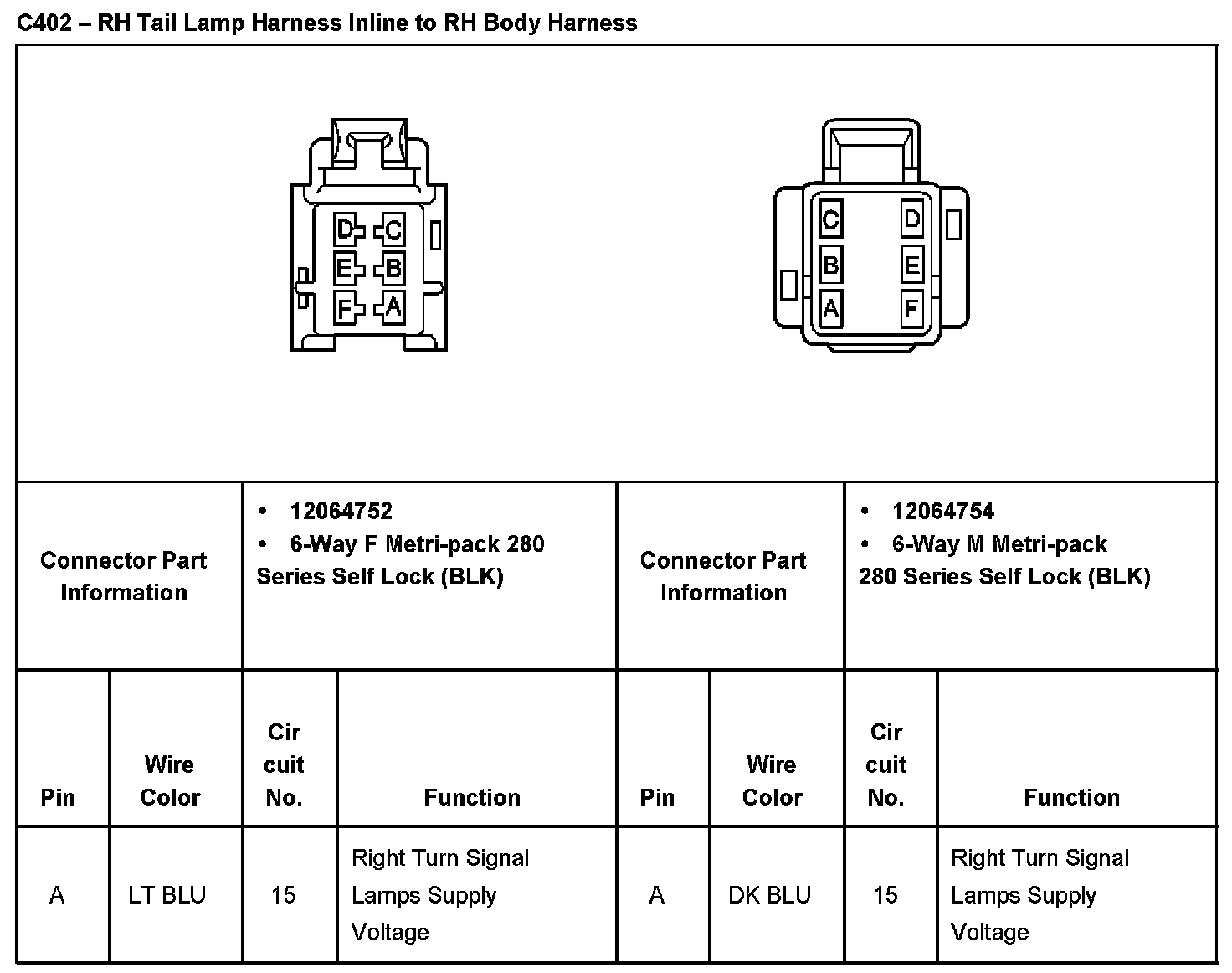

C402 - RH Tail Lamp Harness Inline To RH Body Harness Part 1:

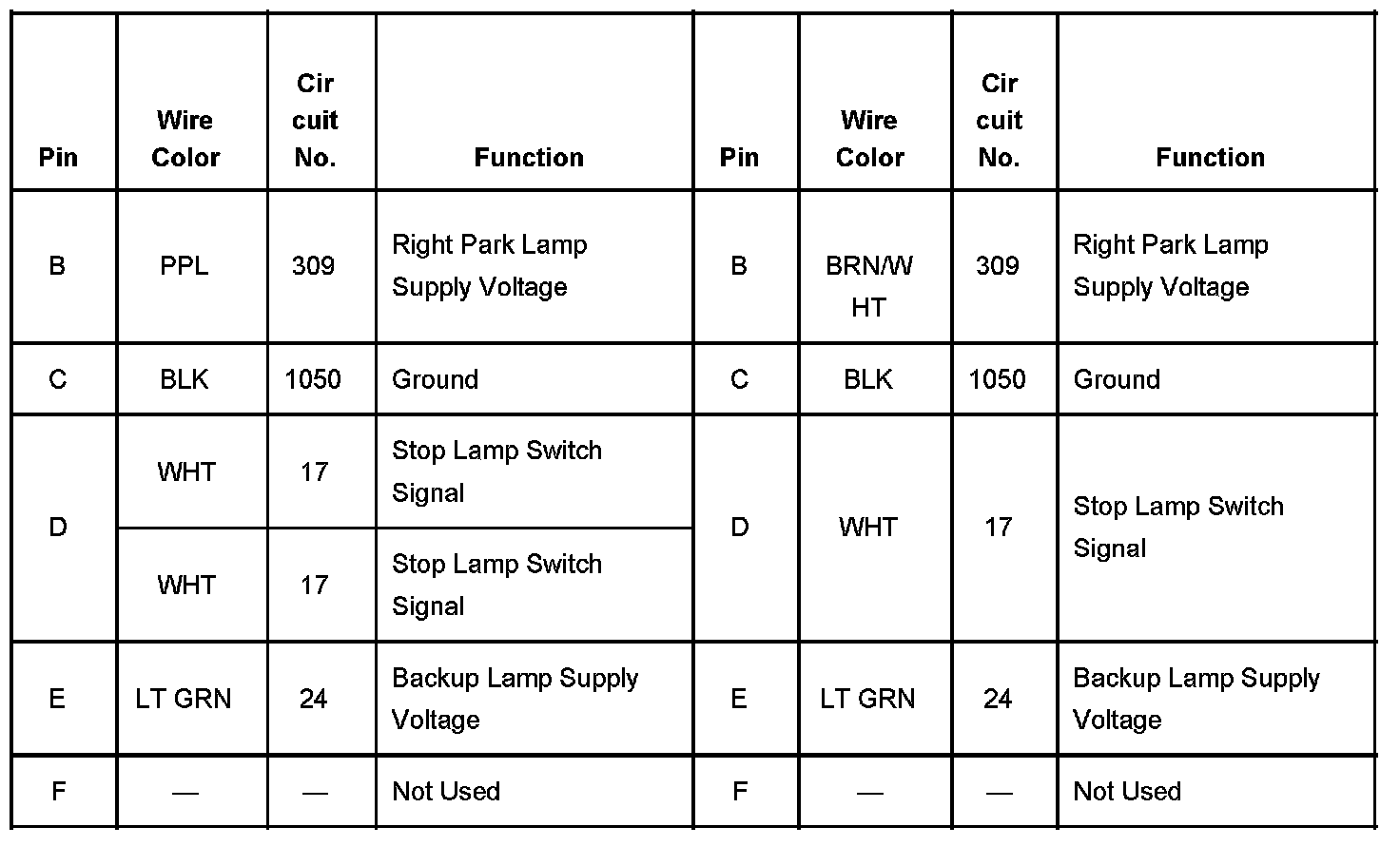

C402 - RH Tail Lamp Harness Inline To RH Body Harness Part 2:
