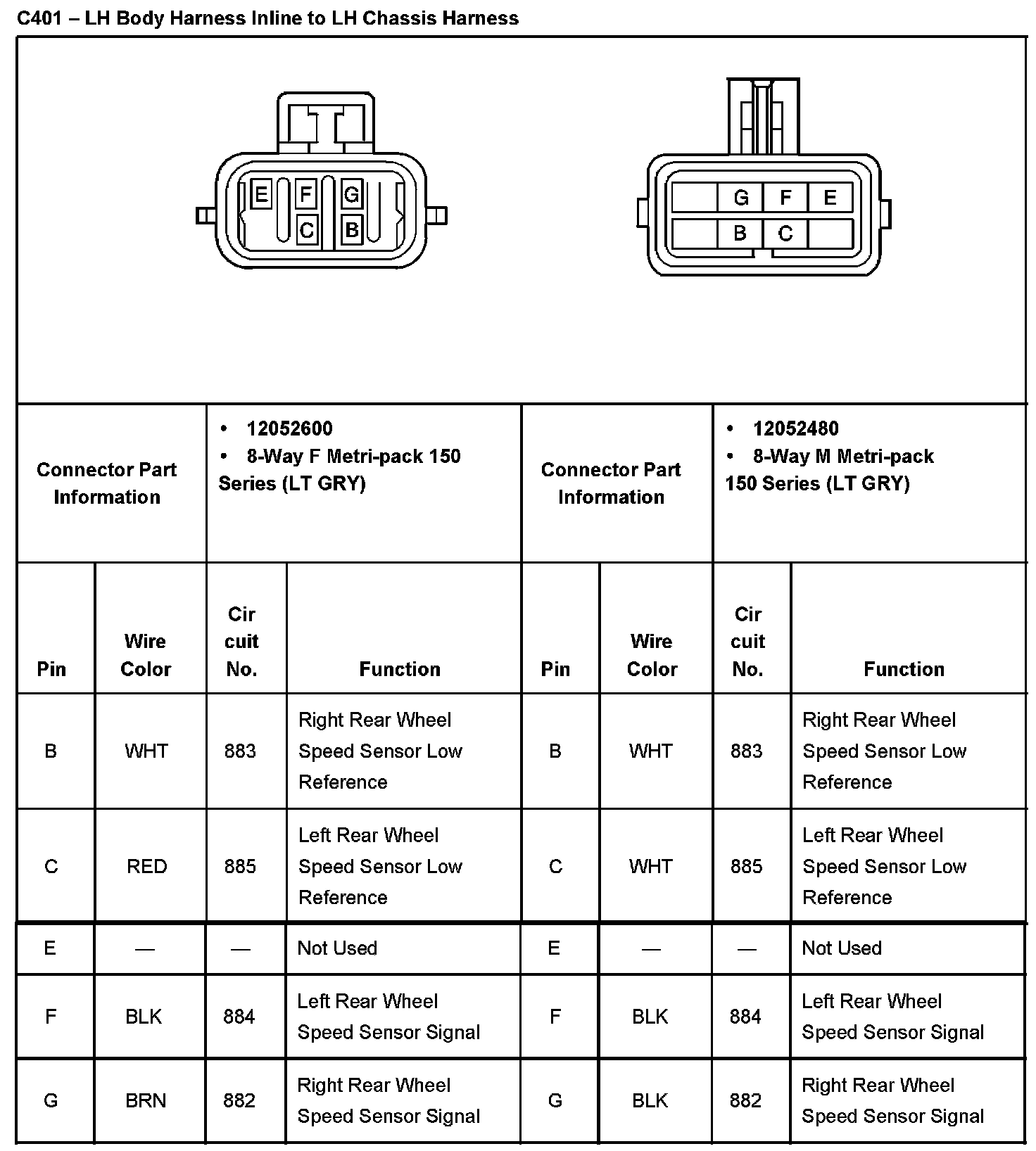

C401 - LH Body Harness Inline to LH Chassis Harness

C401 - LH Body Harness Inline To LH Chassis Harness:
