C329 - LH Body Harness Inline to Headliner Harness

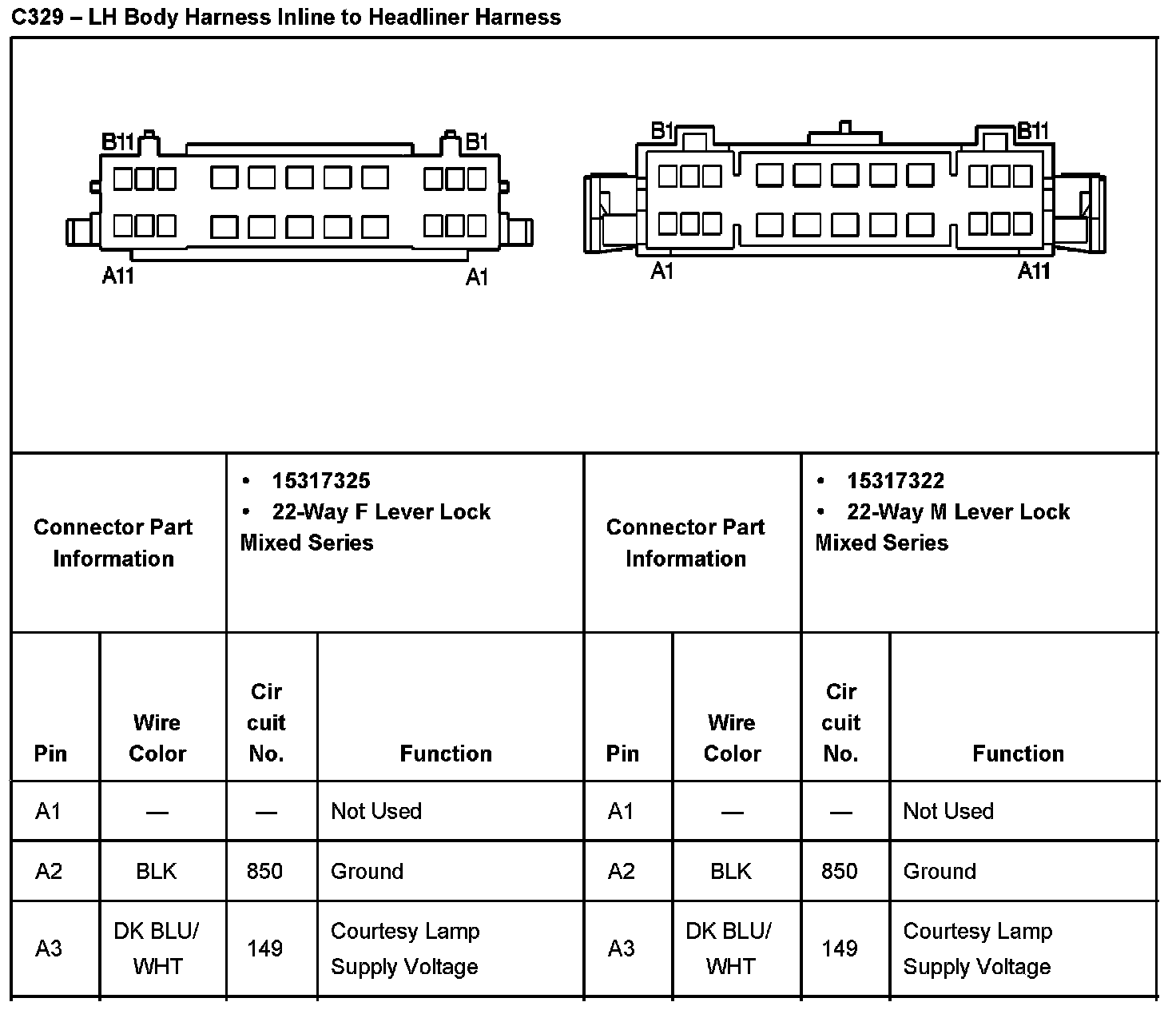

C329 - LH Body Harness Inline To Headliner Harness Part 1:

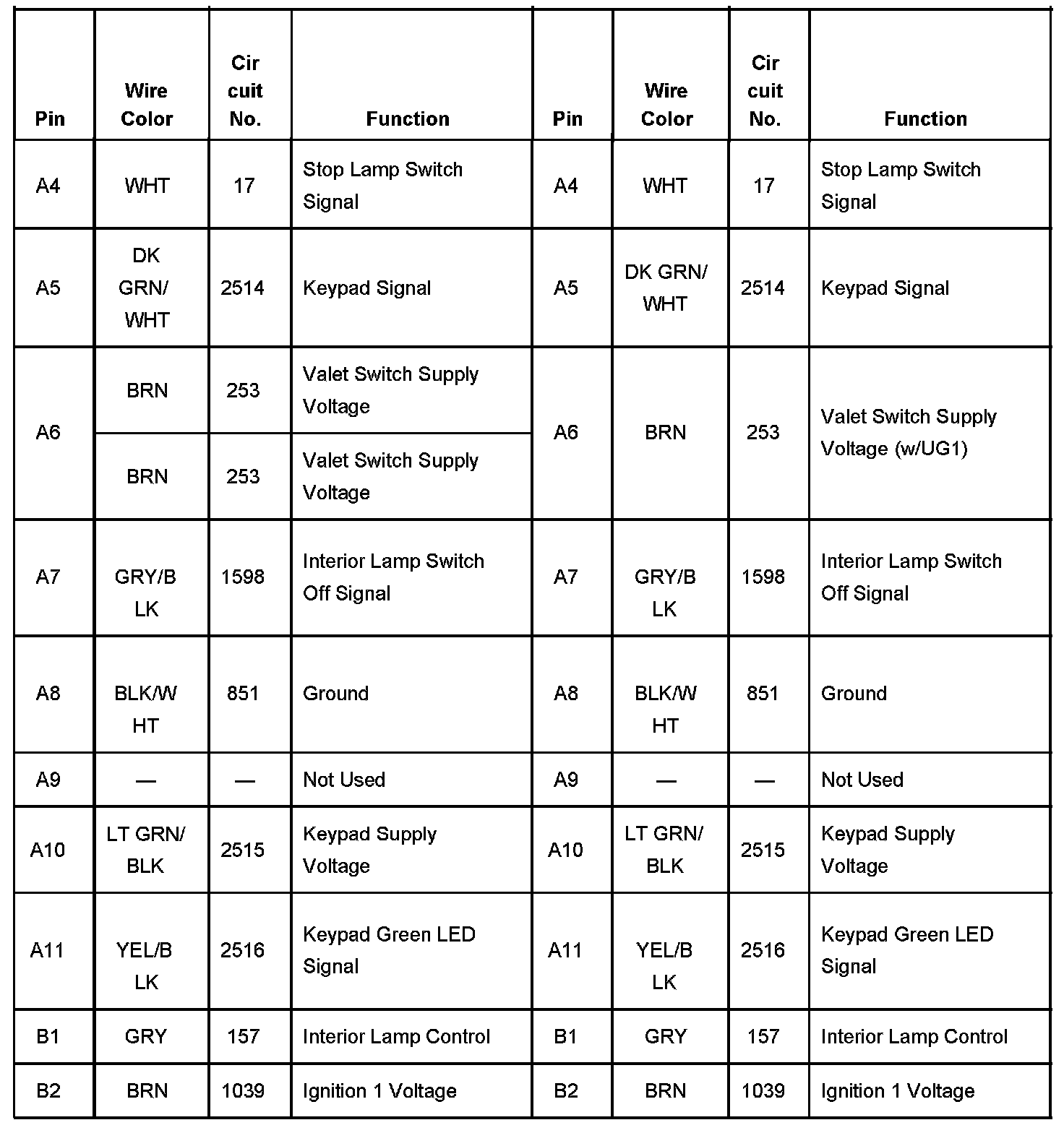

C329 - LH Body Harness Inline To Headliner Harness Part 2:

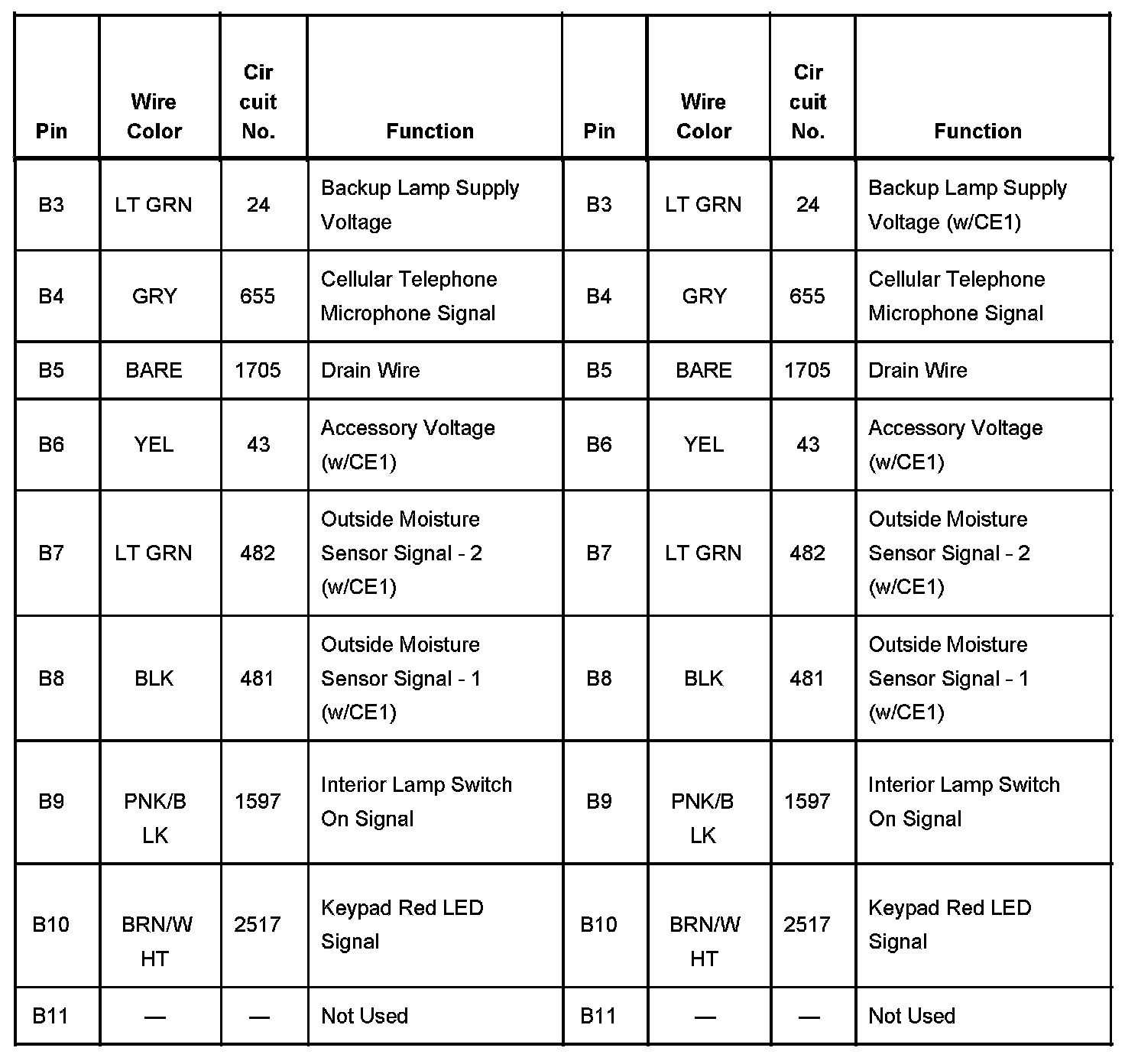

C329 - LH Body Harness Inline To Headliner Harness Part 3:
